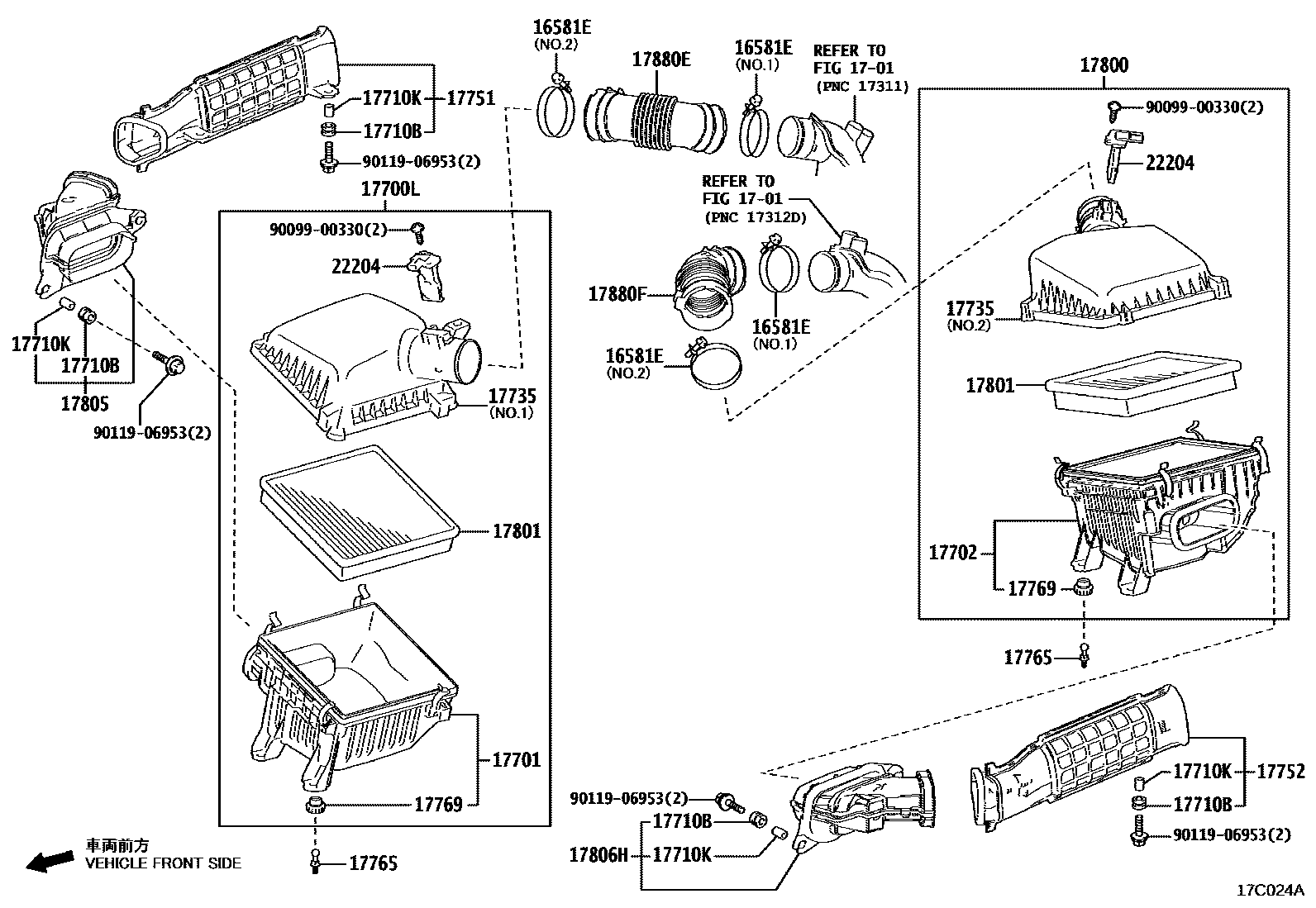

AIR CLEANER
16581ECLAMP, HOSE(FOR AIR CLEANER HOSE)
1701MANIFOLD
17700LCLEANER ASSY, AIR W/ELEMENT, RH
17701CASE SUB-ASSY, AIR CLEANER
17702CASE SUB-ASSY, AIR CLEANER, NO.2
17710BGROMMET
17710KCOLLAR(FOR AIR CLEANER)
17735CAP, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17765STAY, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17800CLEANER ASSY, AIR W/ELEMENT, LH
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17806HCONNECTOR SUB-ASSY, INTAKE AIR, NO.2
17880EHOSE ASSY, AIR CLEANER, RH
17880FHOSE ASSY, AIR CLEANER, LH
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900330
main90099-00330
9011906953
main90119-06953
21 parts on this diagram · 2 diagrams in section
