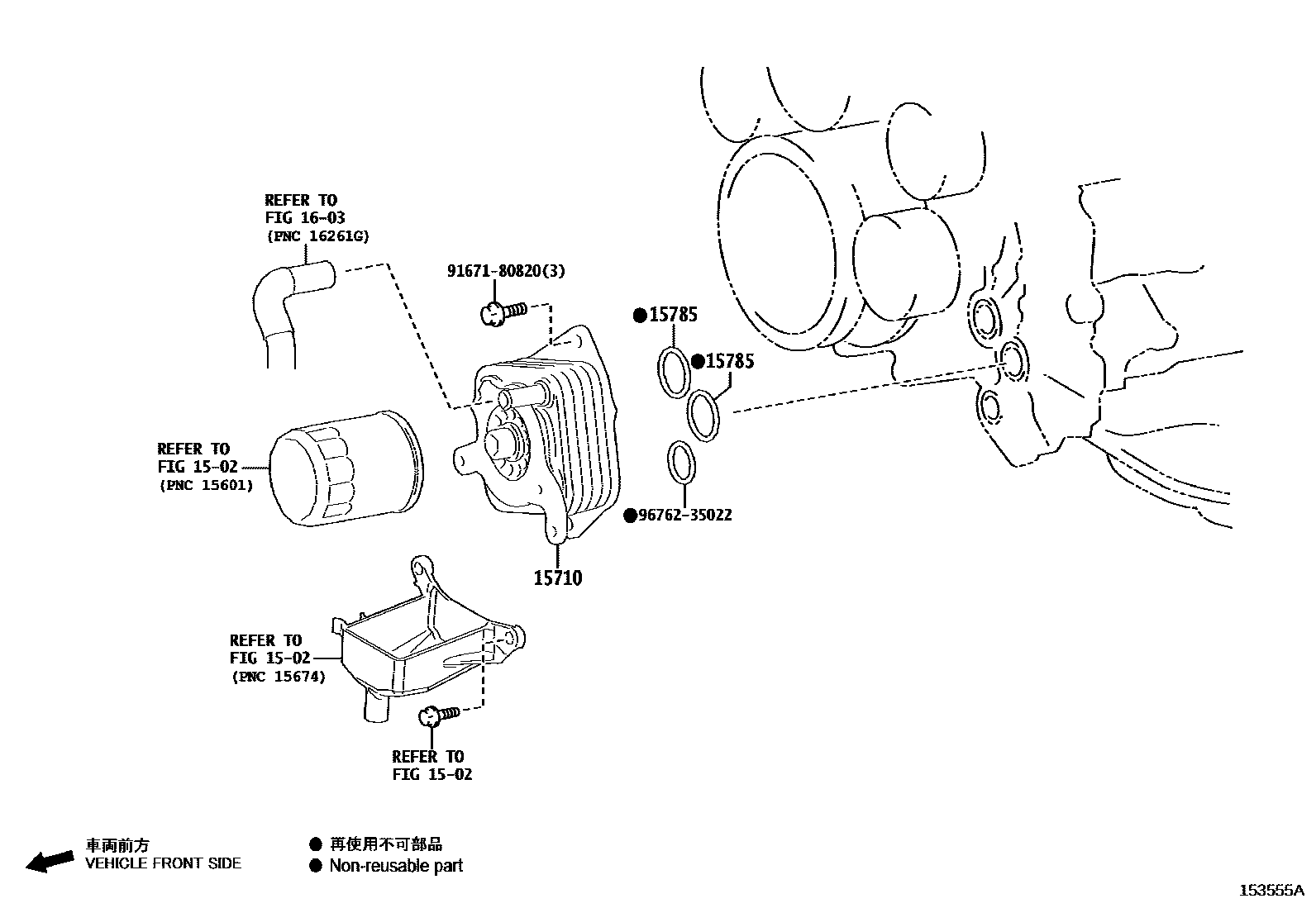

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15710-70060iV35AFTS..VJA310202112-202411

15785GASKET, OIL COOLER

main15785-70010×2iV35AFTS..VJA310202112-202411

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9167180820

main91671-80820

9676235022

main96762-35022

6 parts on this diagram · 1 diagram in section
