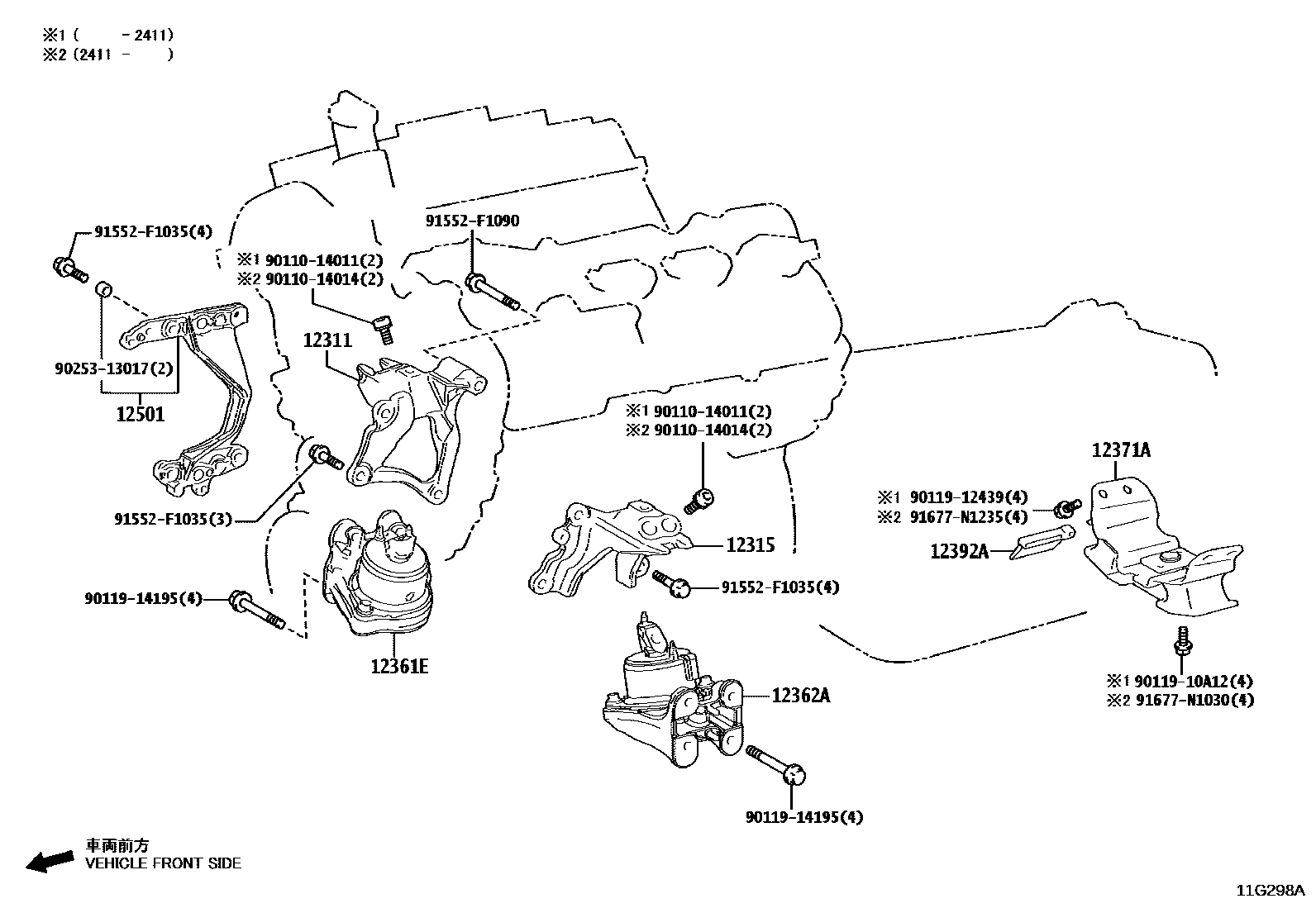

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-70190iV35AFTS..VJA310202112-202411

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-70160iV35AFTS..VJA310202112-202411

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-70293iV35AFTS..VJA310202112-202409

main12361-70340iV35AFTS..VJA310202410-202411

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-70023iV35AFTS..VJA310202112-202409

main12362-70040iV35AFTS..VJA310202410-202411

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-70130iV35AFTS..VJA310202112-202410

main12371-70140iV35AFTS..VJA310202410-202411

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12391-70050iV35AFTS..VJA310202112-202410

main12391-70060iV35AFTS..VJA310202410-202411

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-70030iV35AFTS..VJA310202112-202411

9011014011

main90110-14011

9011014014

main90110-14014

9011910A12

main90119-10A12

9011912439

main90119-12439

9011914195

main90119-14195

9025313017

main90253-13017

91552F1035

main91552-F1035

91552F1090

main91552-F1090

91677N1030

main91677-N1030

91677N1235

main91677-N1235

17 parts on this diagram · 1 diagram in section
