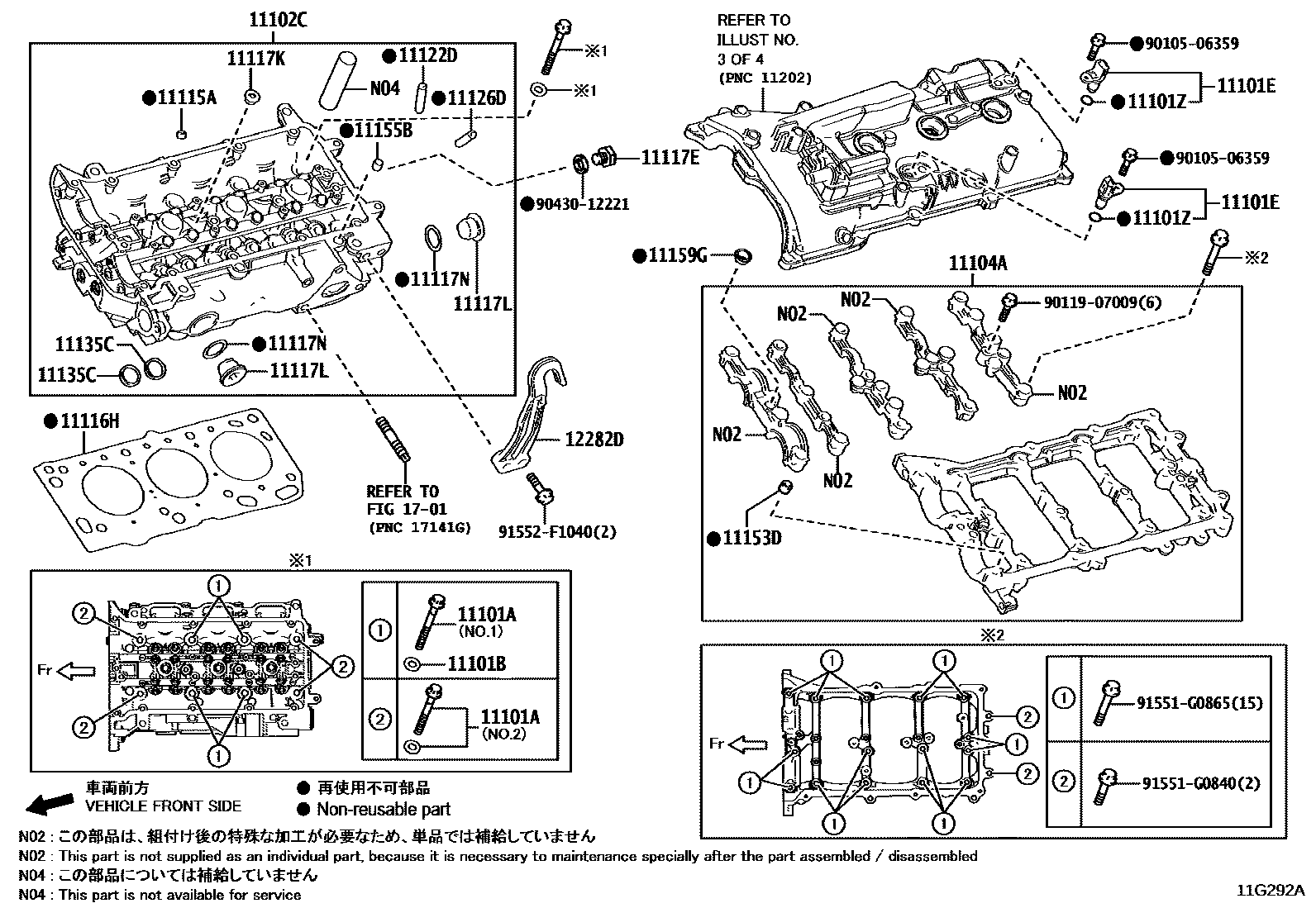

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101ZO RING, CAM POSITION SENSOR
11102CHEAD SUB-ASSY, CYLINDER, LH
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122DBUSH, INTAKE VALVE GUIDE, LH
11126DBUSH, EXHAUST VALVE GUIDE, LH
11135CSEAT, EXHAUST VALVE, LH
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11155BPIN, RING
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
1701
9010506359
main90105-06359
9011907009
main90119-07009
9043012221
main90430-12221
91551G0840
main91551-G0840
91551G0865
main91551-G0865
91552F1040
main91552-F1040
26 parts on this diagram · 4 diagrams in section
