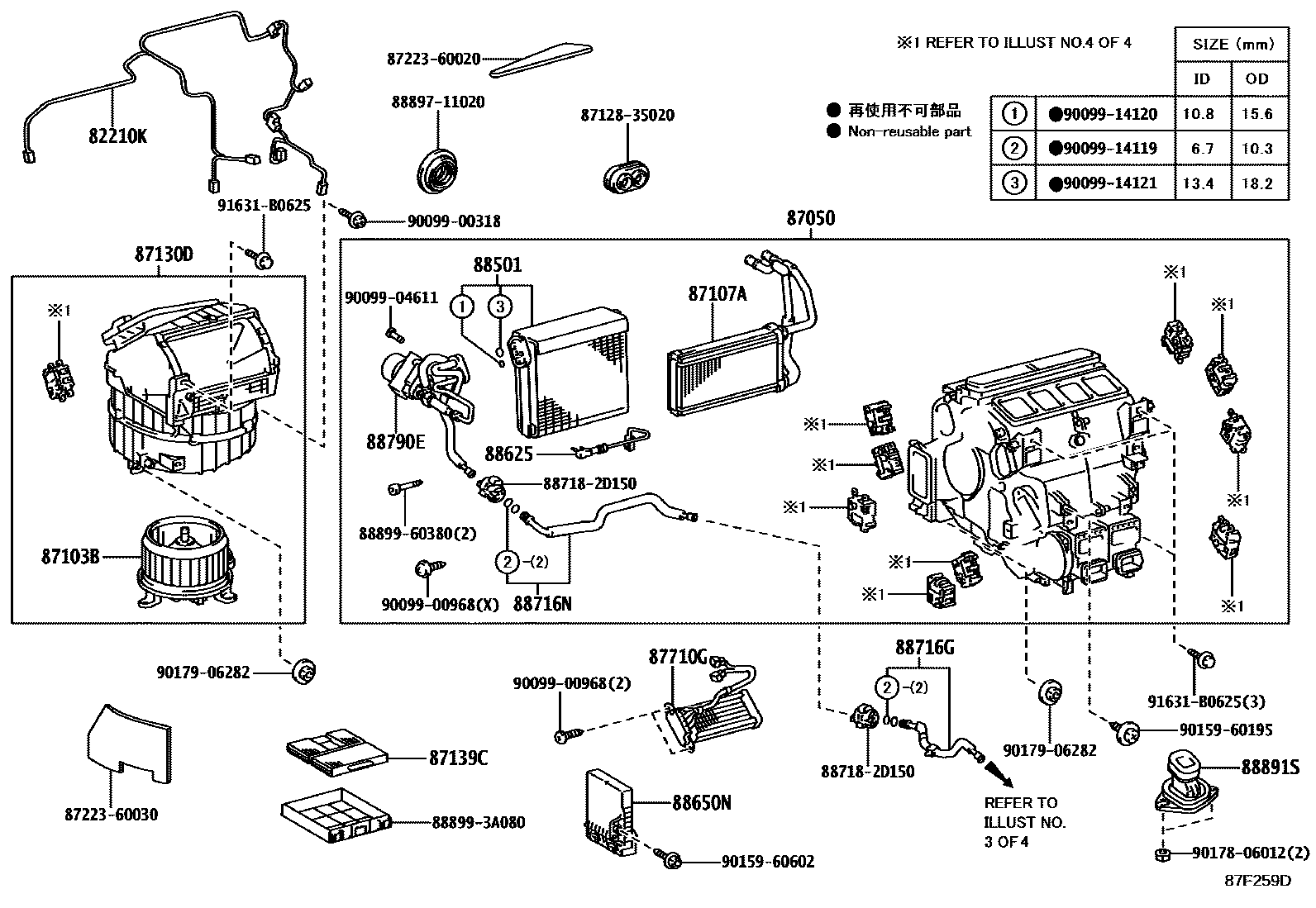

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1�� 0003 1�������� 0004 1���������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60180iURJ201201509

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60A40iURJ201201509-202006

main87050-60M50iURJ201202006

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-60550iURJ201201509

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60411iURJ201201509

87130DBLOWER ASSY

main87130-60660iURJ201201509

87139CFILTER, CLEAN AIR

main87139-50100iURJ201201509

main87139-52040iURJ201201509

main87139-76010iURJ201201509

87710GQUICK HEATER ASSY

main87710-60060iURJ201201509

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60362iURJ201201509-202006

main88501-60600iURJ201202006

88625THERMISTOR, COOLER, NO.1

main88620-60020iURJ201201509

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-60Q00iURJ201201708-201907

sub88650-60Q01

main88650-60Q01iURJ201201908

main88650-60Q40iURJ201201509-201608

main88650-60Q41iURJ201201608-201612

sub88650-60Q42

main88650-60Q42iURJ201201701-201707

sub88650-60Q43

88716GPIPE, COOLER REFRIGERANT LIQUID, G

main88716-6C270iURJ201201509

88716NPIPE, COOLER REFRIGERANT LIQUID, N

main88716-6C170iURJ201201509-202006

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-60A11iURJ201201509

88891SCOVER, COOLER, NO.1

main88891-60090iURJ201201509

8712835020GROMMET, HEATER

main87128-35020

8722360020PAD, AIR DUCT

main87223-60020

8722360030PAD, AIR DUCT

main87223-60030

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889711020VALVE, COOLER MAGNET

main88897-11020

888993A080COVER, EVAPORATOR

main88899-3A080

8889960380COVER, EVAPORATOR

main88899-60380

9009900318

main90099-00318

9009900968

main90099-00968

9009904611

main90099-04611

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015960195

main90159-60195

9015960602

main90159-60602

9017806012

main90178-06012

9017906282

main90179-06282

91631B0625

main91631-B0625

32 parts on this diagram · 4 diagrams in section
