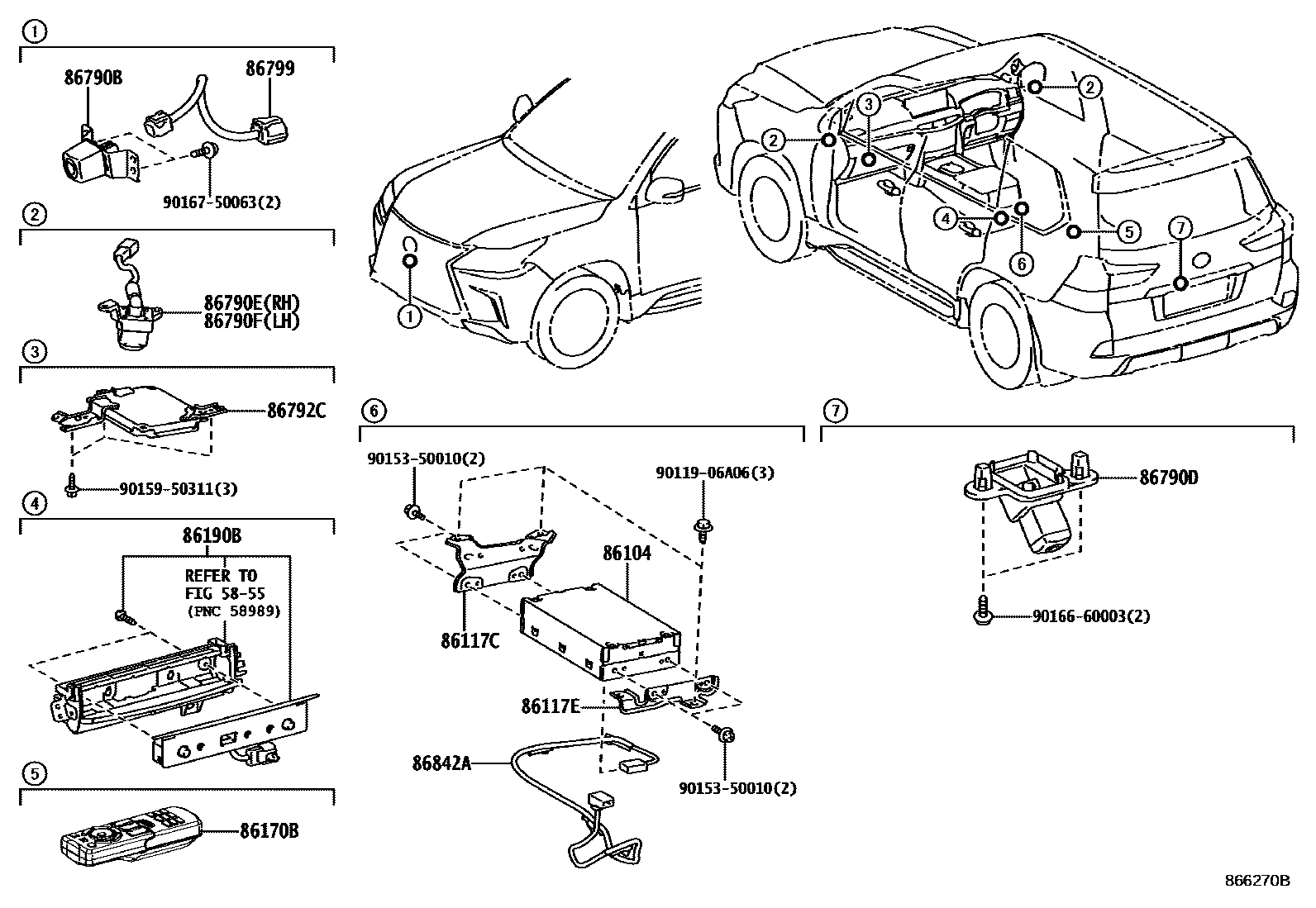

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1�������������

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main862B1-48010iURJ201201509

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-60160iURJ201201509

86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3

main86118-60160iURJ201201509

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-48040iURJ201201509

86190BADAPTER ASSY, REMOTE CONTROL

main86190-60060-A0iURJ201201509

main86190-60060-C0iURJ201201509

86790BCAMERA ASSY, TELEVISION, FR

main867B0-60010iURJ201201509-201606

main867B0-60011iURJ201201606-201710

main867B0-60012iURJ201201710

86790DCAMERA ASSY, TELEVISION, RR

main867B0-60060iURJ201201509-201606

main867B0-60061iURJ201201606-201710

main867B0-60062iURJ201201710

86790ECAMERA ASSY, TELEVISION, SIDE RH

main867B0-60030iURJ201201509-201606

main867B0-60031iURJ201201606-201707

main867B0-60032iURJ201201707

86790FCAMERA ASSY, TELEVISION, SIDE LH

main867B0-60020iURJ201201509-201606

main867B0-60021iURJ201201606-201707

main867B0-60022iURJ201201707

86792CCOMPUTER, PARKING ASSIST

main86792-60460iURJ201201509

86799WIRE, TELEVISION CAMERA

main86799-60010iURJ201201509

86842AWIRE, NAVIGATION, NO.1

main86842-60B00iURJ201201509

9011906A06

main90119-06A06

9015350010

main90153-50010

9015950311

main90159-50311

9016660003

main90166-60003

9016750063

main90167-50063

18 parts on this diagram · 2 diagrams in section
