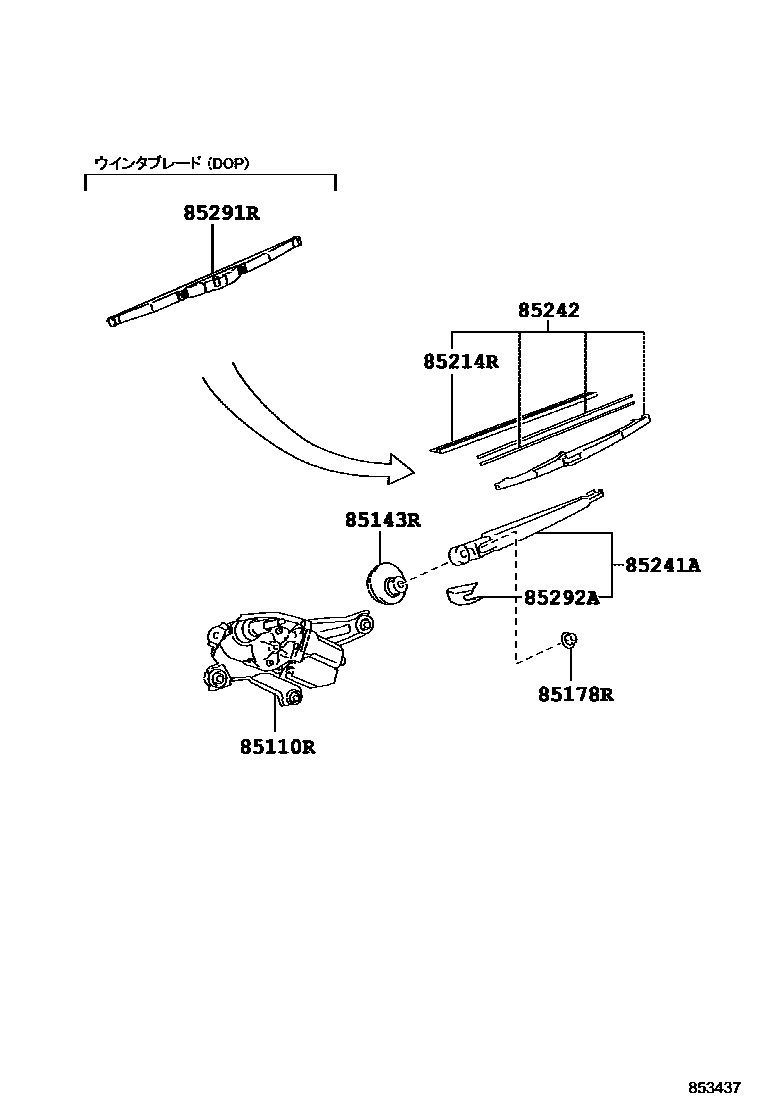

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-60310iURJ201201509

85143RGROMMET, REAR WIPER MOTOR

main85143-60150iURJ201201509

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iURJ201201509

85214RRUBBER, REAR WIPER

main85214-42040iURJ201201509

85241AARM, REAR WIPER

main85241-60160iURJ201201509

85242BLADE, RR WIPER

main85242-60130iURJ201201509

85291RBLADE,REAR WIPER, WINTER

main85291-13060iURJ201201509

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iURJ201201509

8 parts on this diagram · 1 diagram in section
