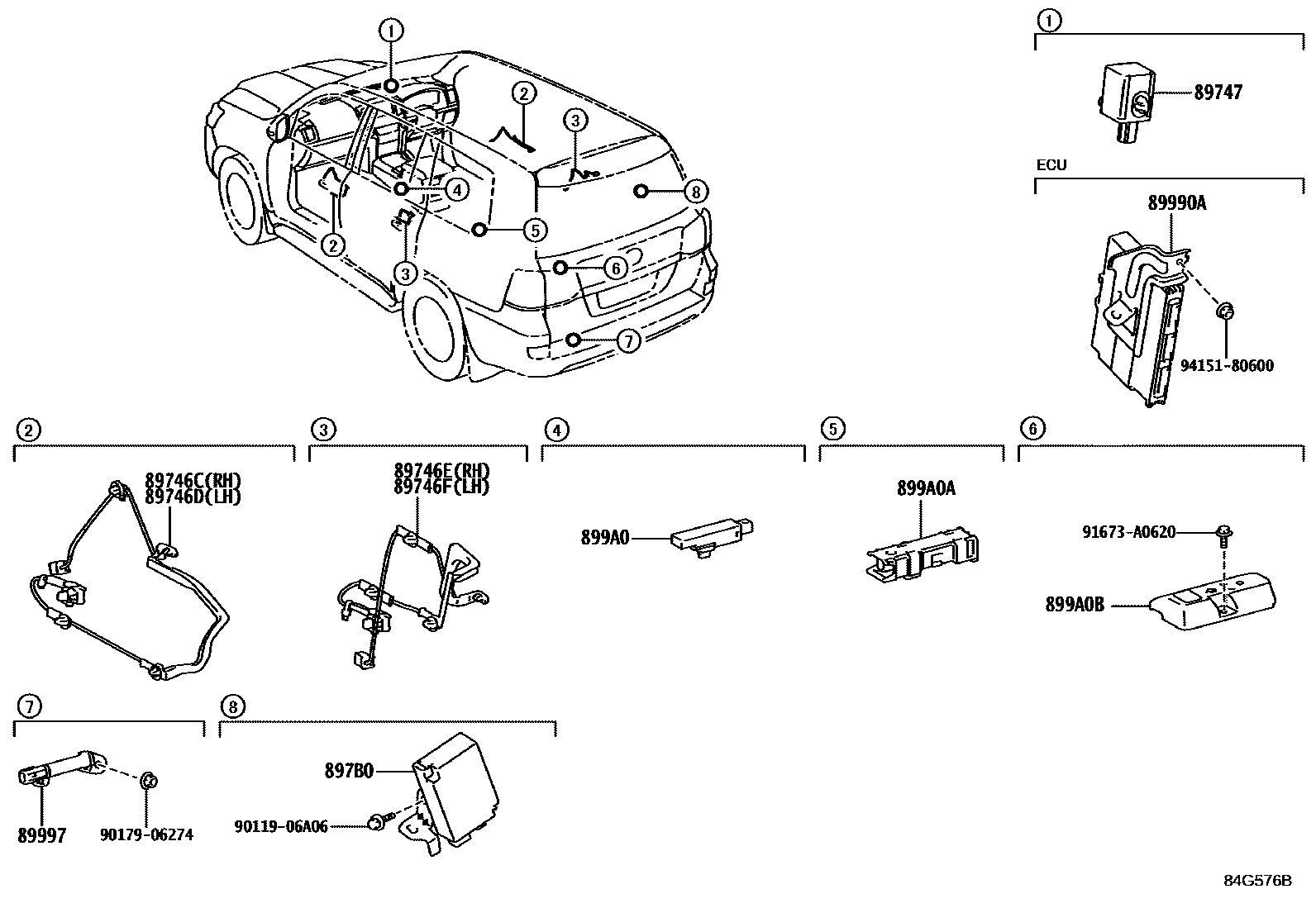

WIRELESS DOOR LOCK

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-60050iURJ201201509

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-60060iURJ201201509

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-60070iURJ201201509

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-60080iURJ201201509

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURJ201201509

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-60010iURJ201201509

89990ACOMPUTER ASSY, SMART KEY

main89990-60290iURJ201201509-201702

main89990-60291iURJ201201703-201808

main89990-60700iURJ201201808-201908

main89990-60780iURJ201201908-202007

main89990-60781iURJ201202008

89997ANTENNA, ELECTRICAL KEY

main89997-30100iURJ201201509

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iURJ201201509

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iURJ201201509

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60040iURJ201201509

9011906A06

main90119-06A06

9017906274

main90179-06274

91673A0620

main91673-A0620

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
