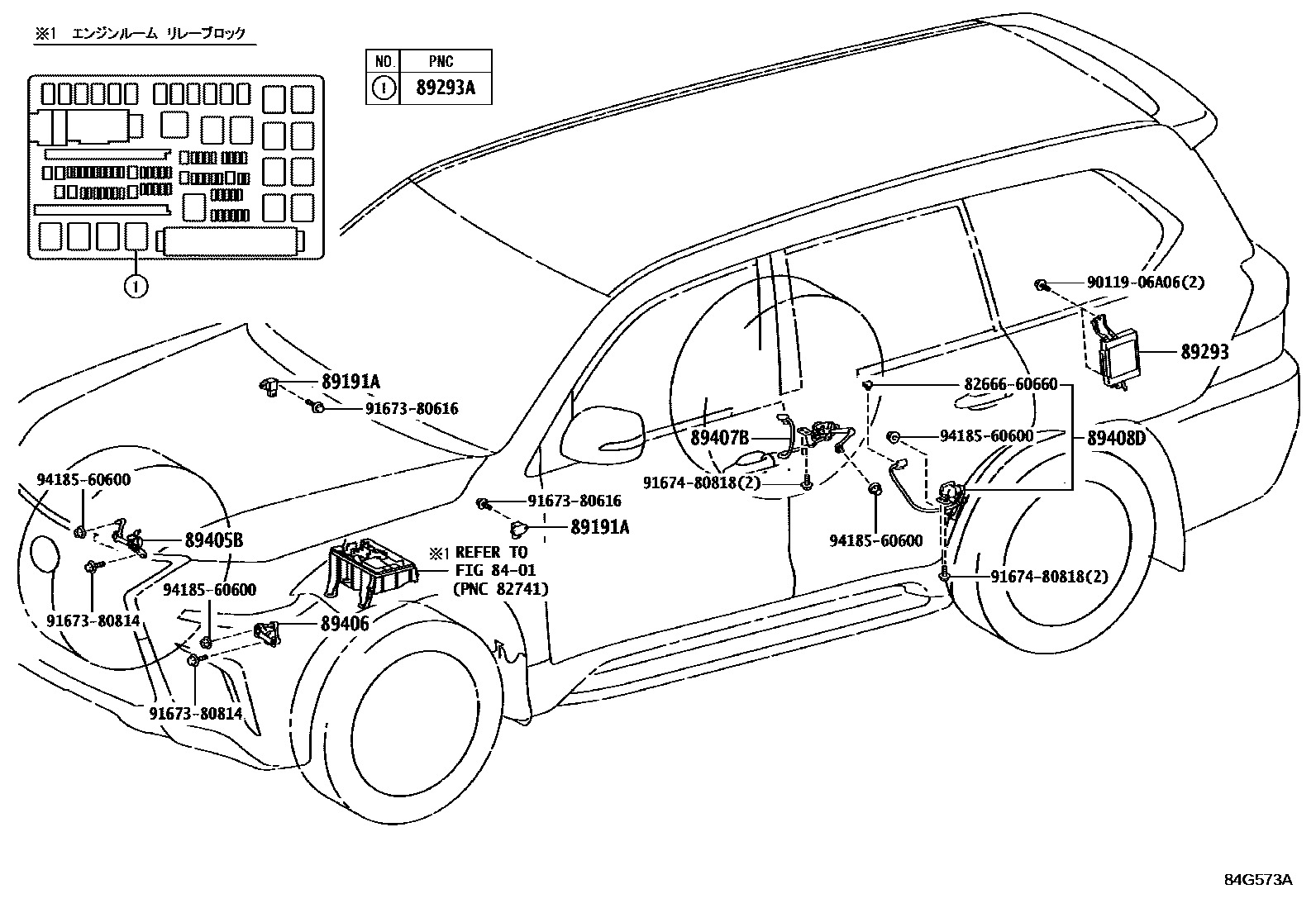

ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89191ASENSOR, ACCELERATION

main89191-22020×2iURJ201201509

89293COMPUTER, SUSPENSION CONTROL

main89293-60083iURJ201201509

89293ARELAY, SUSPENSION CONTROL

main88263-21010iURJ201201509

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-60020iURJ201201509

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-60030iURJ201201509

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60031iURJ201201509

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60040iURJ201201509

8266660660HOLDER, CONNECTOR

main82666-60660

9011906A06

main90119-06A06

9167380616

main91673-80616

9167380814

main91673-80814

9167480818

main91674-80818

9418560600

main94185-60600

14 parts on this diagram · 1 diagram in section
