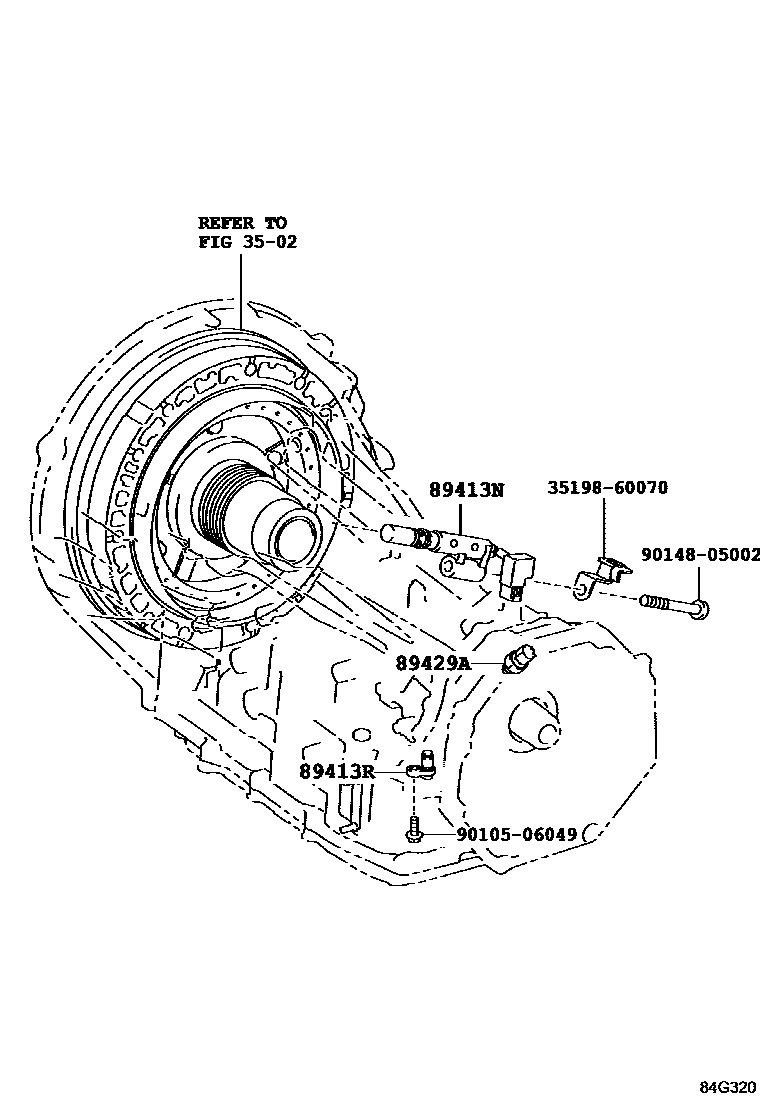

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-60030iURJ201201509-201807

main89413-60031iURJ201201808

89413RSENSOR, TRANSMISSION REVOLUTION (SP2)

main89413-50020iURJ201201509

89429ASENSOR, TEMPERATURE

main89429-60040iURJ201201509-201807

main89429-60041iURJ201201808

3519860070CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-60070

9010506049

main90105-06049

9014805002

main90148-05002

7 parts on this diagram · 1 diagram in section
