SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 1/2 0006 1������������ 2/2 0007 1������� 0008 1��� 0009 1��� & ��� 0010 1��� & �������

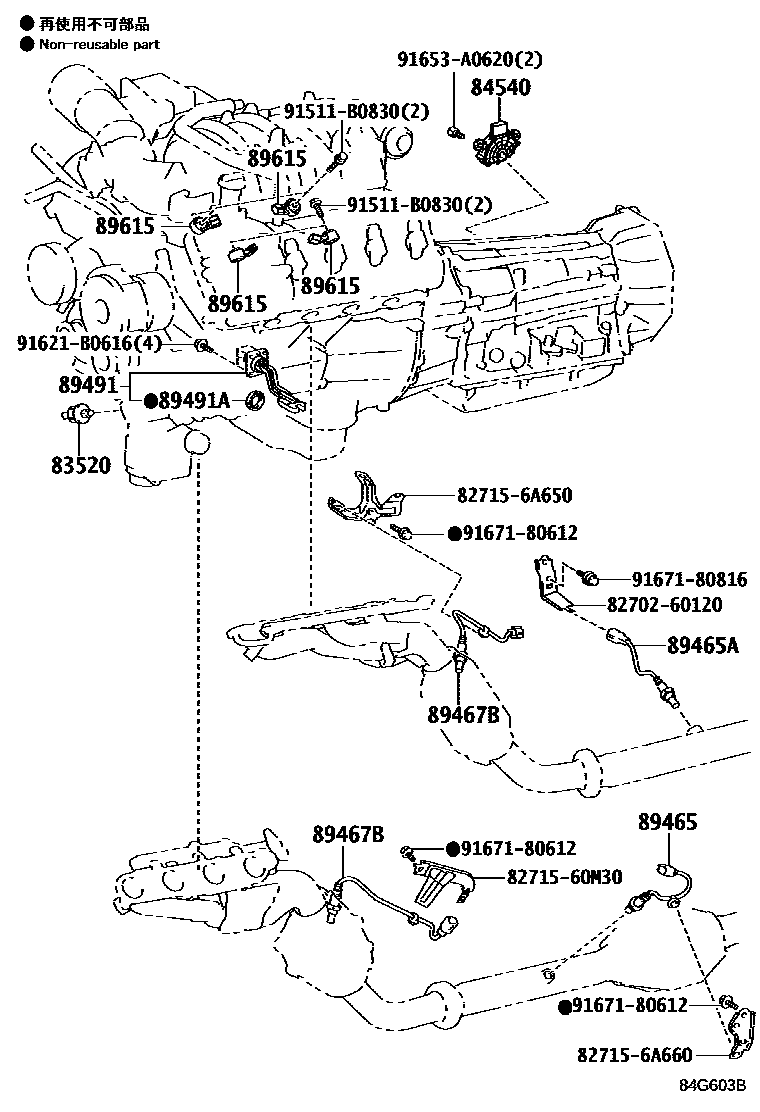

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60051iURJ201201509

84540SWITCH ASSY, NEUTRAL START

main84540-60060iURJ201201509

89465SENSOR, OXYGEN

main89465-60470iURJ201201509

89465ASENSOR, OXYGEN NO.2

main89465-34160iURJ201201509

89467BSENSOR, AIR FUEL RATIO

main89467-60160×2iURJ201201509

89491SENSOR, ENGINE OIL LEVEL

main89491-60120iURJ201201509

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iURJ201201509

89615SENSOR, KNOCK CONTROL

main89615-20090×4iURJ201201509

8270260120BRACKET SUB-ASSY, WIRING HARNESS

main82702-60120

8271560M30BRACKET,WIRING HARNESS CLAMP

main82715-60M30

827156A650BRACKET,WIRING HARNESS CLAMP

main82715-6A650

827156A660BRACKET,WIRING HARNESS CLAMP

main82715-6A660

91511B0830

main91511-B0830

91621B0616

main91621-B0616

91653A0620

main91653-A0620

9167180612

main91671-80612

9167180816

main91671-80816

17 parts on this diagram · 10 diagrams in section
