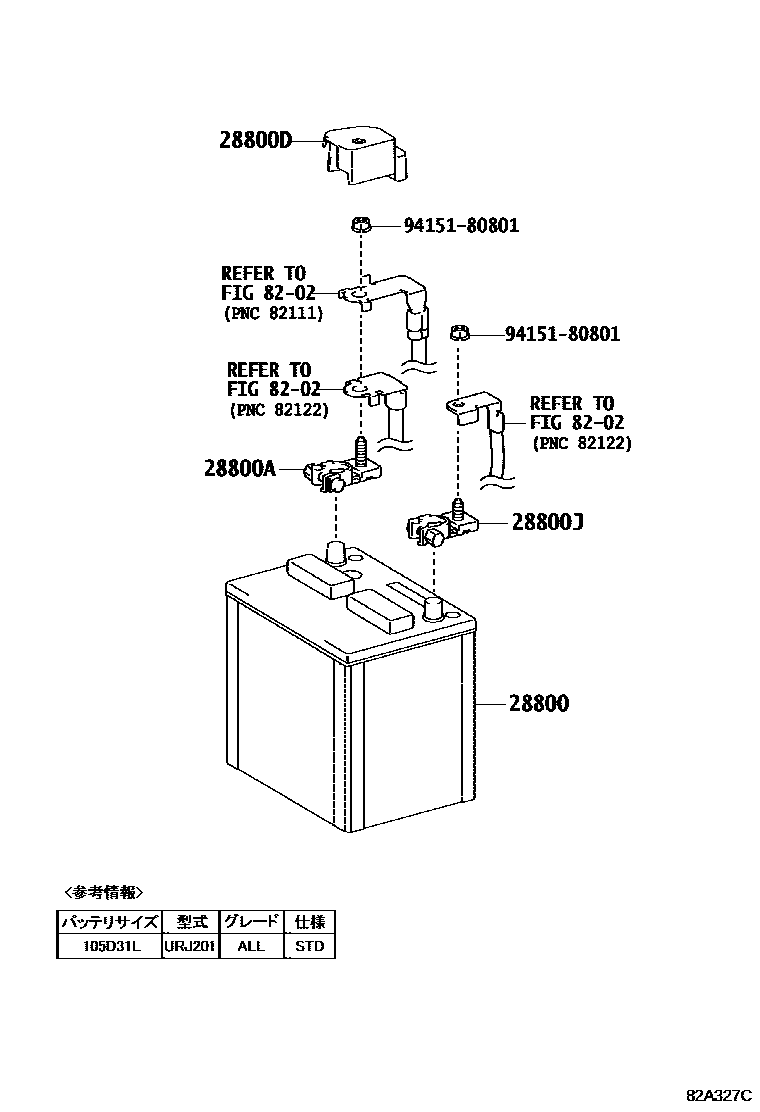

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38130i3URFE..URJ201201509-201803

main28800-38131i3URFE..URJ201201804

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i3URFE..URJ201201509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60200i3URFE..URJ201201509-201907

main82821-60201i3URFE..URJ201201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i3URFE..URJ201201509

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
