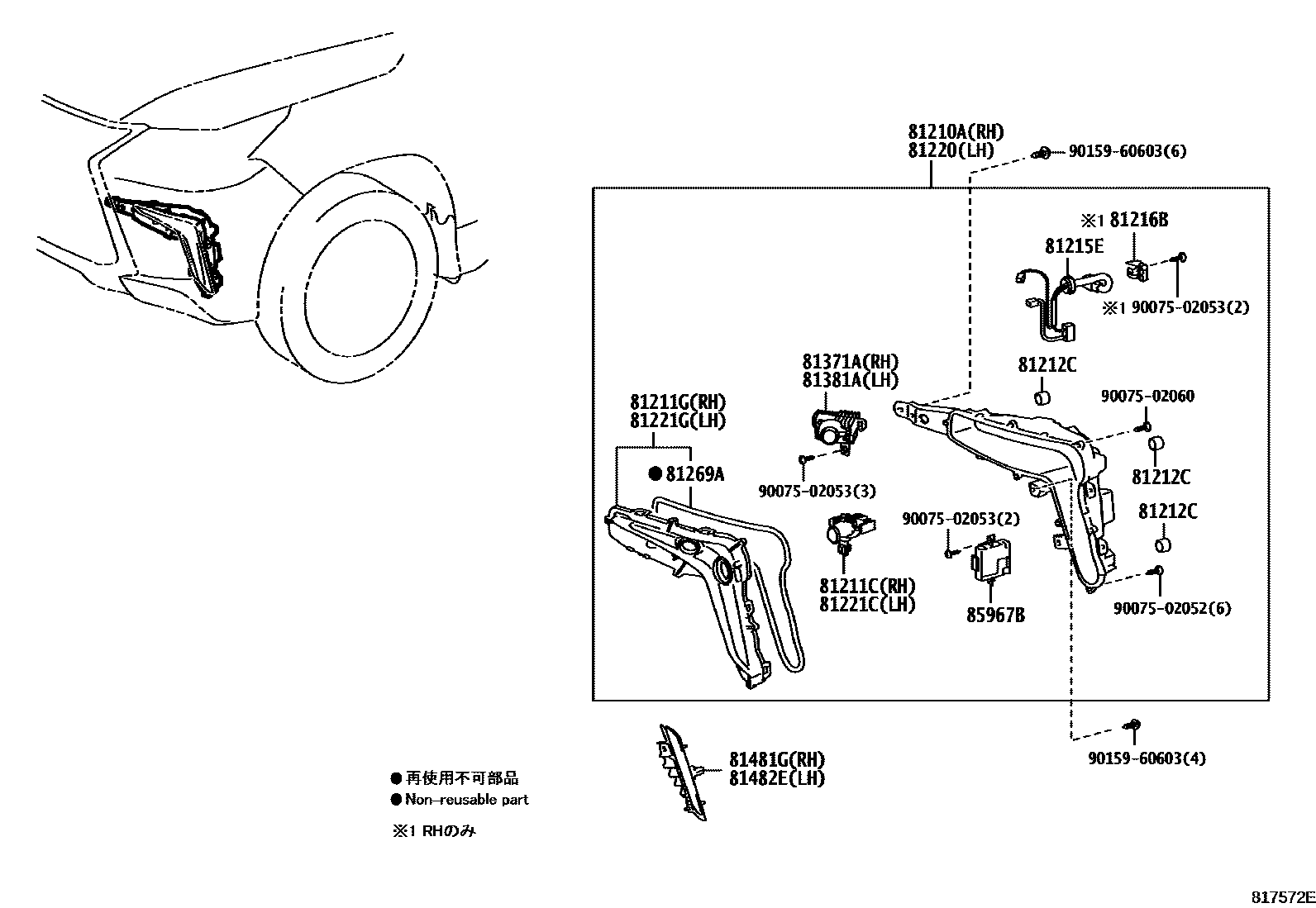

FOG LAMP

81210ALAMP ASSY, FOG, RH

main81360-60070iURJ201201509

main81360-60110iURJ201201808

81211CLAMP UNIT, FOG LAMP, RH

main81373-60060iURJ201201509

81211GLENS, FOG LAMP, RH

main81372-60070iURJ201201509

main81372-60110iURJ201201808

81212CCOVER, FOG LAMP

main90075-15509×6iURJ201201509

81215ECORD, FOG LAMP

main81376-60070×2iURJ201201509

81216BRIM, FOG LAMP, RH NO.1

main81378-60060iURJ201201509

81220LAMP ASSY, FOG, LH

main81390-60020iURJ201201509

main81390-60040iURJ201201808

81221CLAMP UNIT, FOG LAMP, LH

main81383-60010iURJ201201509

81221GLENS, FOG LAMP, LH

main81382-60020iURJ201201509

main81382-60040iURJ201201808

81269ASEAL, FOG LAMP

main81499-17010×2iURJ201201509

81371AUNIT, CORNERING LAMP, RH

main81371-60070iURJ201201509

81381AUNIT, CORNERING LAMP, LH

main81381-60020iURJ201201509

81481GBRACKET, FOG LAMP, RH

main81481-60090iURJ201201509

81482EBRACKET, FOG LAMP, LH

main81482-60080iURJ201201509

85967BCOMPUTER, LIGHT CONTROL LED

main85967-50110×2iURJ201201509

9007502052

main90075-02052

9007502053

main90075-02053

9007502060

main90075-02060

9015960603

main90159-60603

19 parts on this diagram · 1 diagram in section
