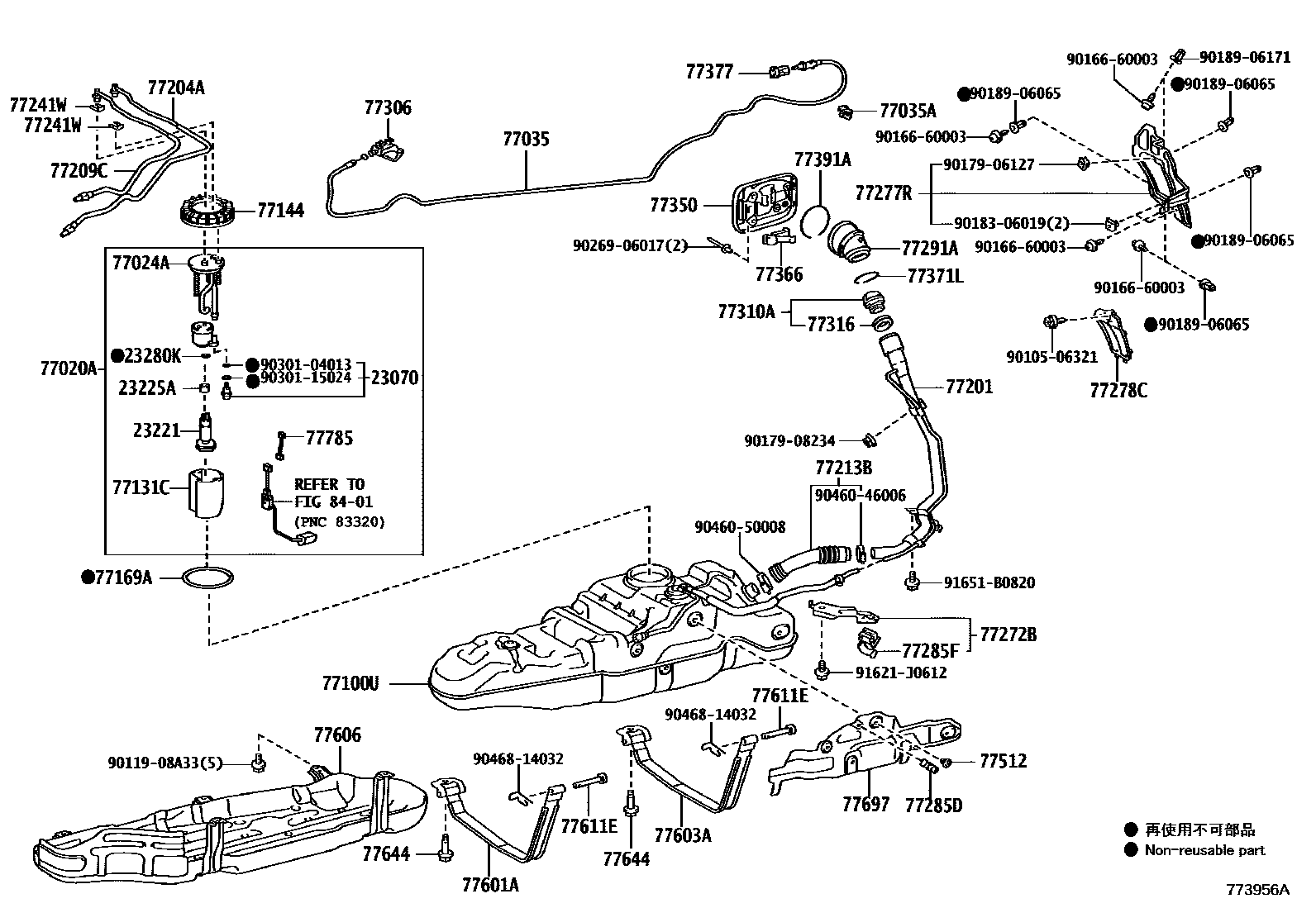

FUEL TANK & TUBE

0001 1�������� 0002 1����������

23070VALVE ASSY, FUEL MAIN

main23070-38010i3URFE..URJ201201509

23221PUMP, FUEL

main23220-50271i3URFE..URJ201201509

23225ASPACER, FUEL PUMP

main23225-23010i3URFE..URJ201201509

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-08019i3URFE..URJ201201509

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60540iURJ201201509

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60211iURJ201201509

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60130iURJ201201509

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-06005iURJ201201509

77100UTANK SUB-ASSY, FUEL

main77001-60801iURJ201201509

77131CSUB-TANK, FUEL, NO.1

main77131-60170iURJ201201509

77144RETAINER, FUEL PUMP GAUGE

main77144-47020iURJ201201509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iURJ201201509

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60C50iURJ201201509-202010

main77201-60E40iURJ201202010

77204ATUBE, FUEL TANK RETURN

main77204-60070iURJ201201509

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60470iURJ201201509

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60310iURJ201201509

77241WCLIP, TUBE JOINT

main77241-33011×2iURJ201201509

77272BSUPPORT, BREATHER TUBE, NO.1

main77205-60C01iURJ201201509

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60140iURJ201201509

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-60020iURJ201201509

77285DCLAMP, FUEL TUBE, NO.1

main77285-60840iURJ201201509

77285FCLAMP, FUEL TUBE, NO.1

main77197-60031iURJ201201509

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60150iURJ201201509

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-58020-A1iURJ201201509

IVORY,TRIM02

main77306-58020-C0iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

77310ACAP ASSY, FUEL TANK

main77300-12020iURJ201202010

main77300-52030iURJ201201509-202010

77316GASKET, FUEL TANK CAP

main77316-52040iURJ201201509

77350LID ASSY, FUEL FILLER OPENING

main77350-60120iURJ201201509

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35040iURJ201201509

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iURJ201201509-202101

main77371-60040iURJ201202102

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iURJ201201509-202102

77391ARING, FUEL INLET BOX

main77391-60060iURJ201201509

77512BRACKET, FUEL TANK, REAR

main77512-35140×4iURJ201201509

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60390iURJ201201509

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-60140iURJ201201509

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60170iURJ201201509

77611EPIN, FUEL TANK BAND

main77653-35040×2iURJ201201509

77644BOLT, FUEL TANK

main77644-35030×2iURJ201201509

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60010iURJ201201509

77785HARNESS, FUEL PUMP

main77785-60010iURJ201201509-201803

main77785-60011iURJ201201804

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506321

main90105-06321

9011908A33

main90119-08A33

9016660003

main90166-60003

9017906127

main90179-06127

9017908234

main90179-08234

9018306019

main90183-06019

9018906065

main90189-06065

9018906171

main90189-06171

9026906017

main90269-06017

9030104013

main90301-04013

9030115024

main90301-15024

9046046006

main90460-46006

9046050008

main90460-50008

9046814032

main90468-14032

91621J0612

main91621-J0612

91651B0820

main91651-B0820

56 parts on this diagram · 2 diagrams in section
