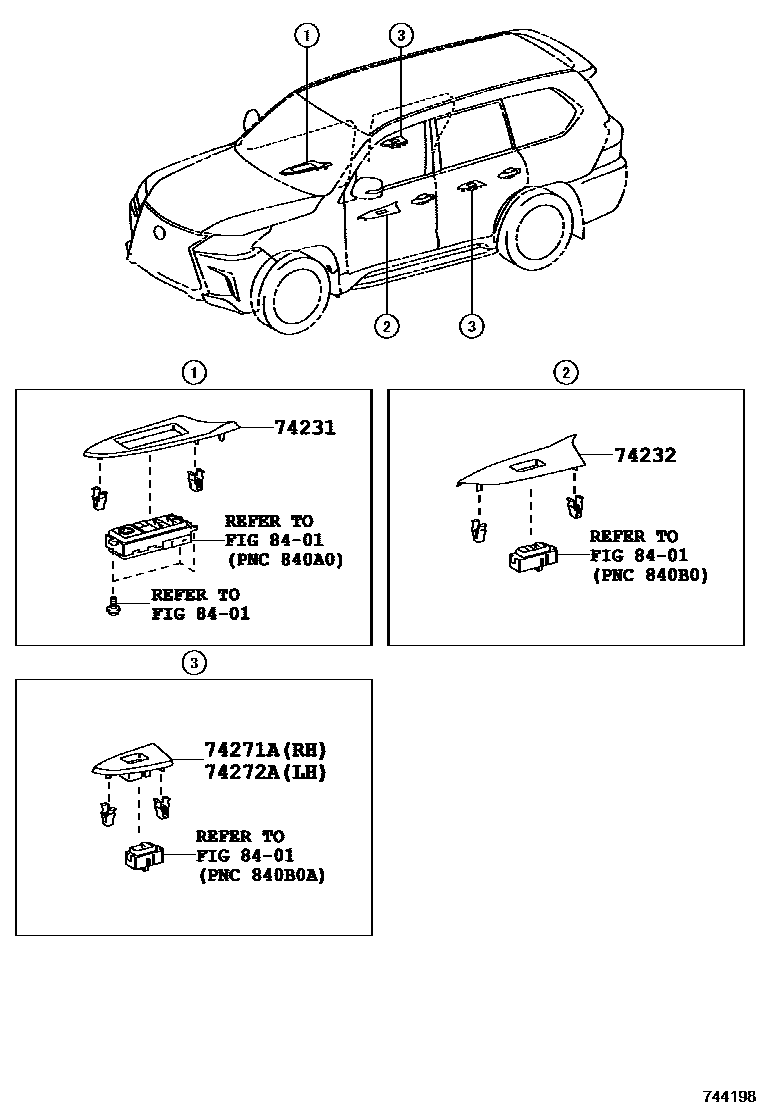

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60A10iURJ201201509

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60860iURJ201201509

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60430iURJ201201509

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60430iURJ201201509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 2 diagrams in section
