SEAT BELT

0001 1������� 0002 1�� NO.1 ��� 0003 1�� NO.2 ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A4iURJ201201509

IVORY,TRIM02

main73023-30010-B2iURJ201201509

LT.GRAY,TRIM05,21,32,45,51

main73023-30010-C0iURJ201201509

BLACK,TRIM05,06,21,24,31,32,44,45,52

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A4iURJ201201509

IVORY,TRIM02

main73024-30010-B2iURJ201201509

LT.GRAY,TRIM05,21,32,45,51

main73024-30010-C0iURJ201201509

BLACK,TRIM05,06,21,24,31,32,44,45,52

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×4iURJ201201509

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60870-A0iURJ201201509-201708

IVORY,TRIM02

main73210-60870-C0iURJ201201509-201708

BLACK,TRIM05,06,2#,3#,4#

main73210-60871-A0iURJ201201708

IVORY,TRIM02

main73210-60871-C0iURJ201201708

BLACK,TRIM05,06,2#,3#,4#,5#

73219STOPPER, TONGUE PLATE

main73219-33010iURJ201201509

main73219-33020iURJ201201509

main73219-33030iURJ201201509

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60670-A0iURJ201201509-201708

IVORY,TRIM02

main73220-60670-C0iURJ201201509-201708

BLACK,TRIM05,06,2#,3#,4#

main73220-60671-A0iURJ201201708

IVORY,TRIM02

main73220-60671-C0iURJ201201708

BLACK,TRIM05,06,2#,3#,4#,5#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60700-A0iURJ201201509

IVORY,TRIM02

main73230-60700-C0iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-60550-A0iURJ201201509

IVORY,TRIM02

main73240-60550-C0iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

9155381018

main91553-81018

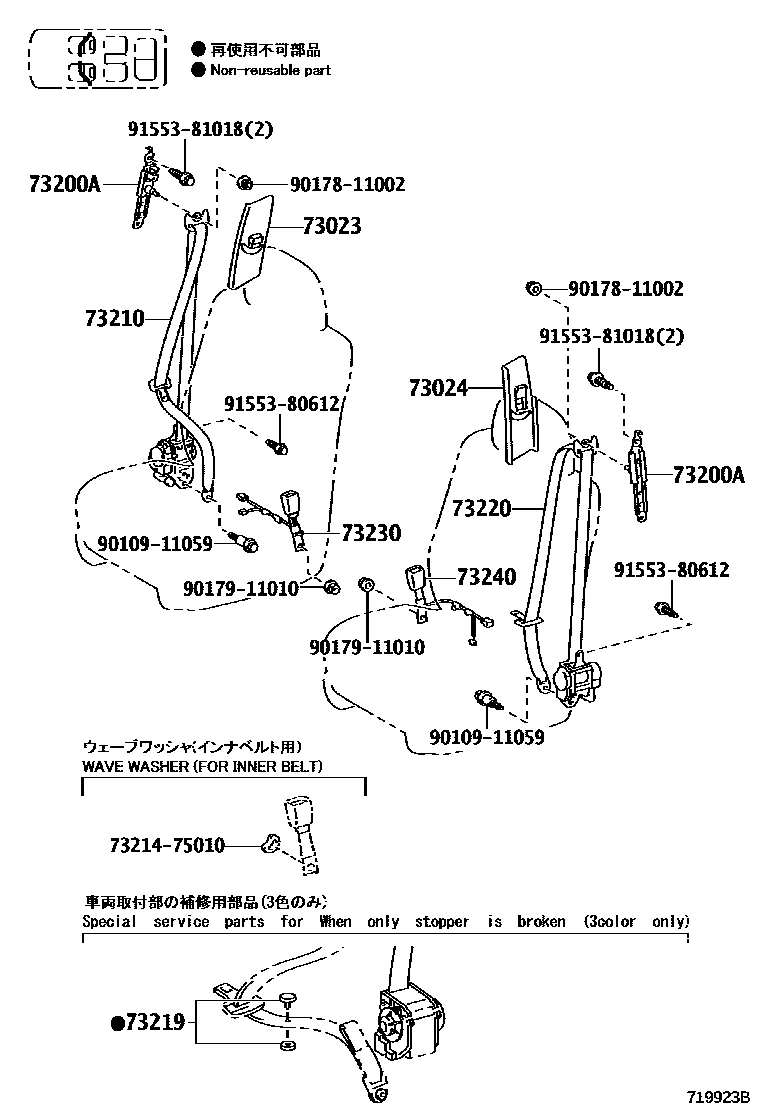

14 parts on this diagram · 3 diagrams in section
