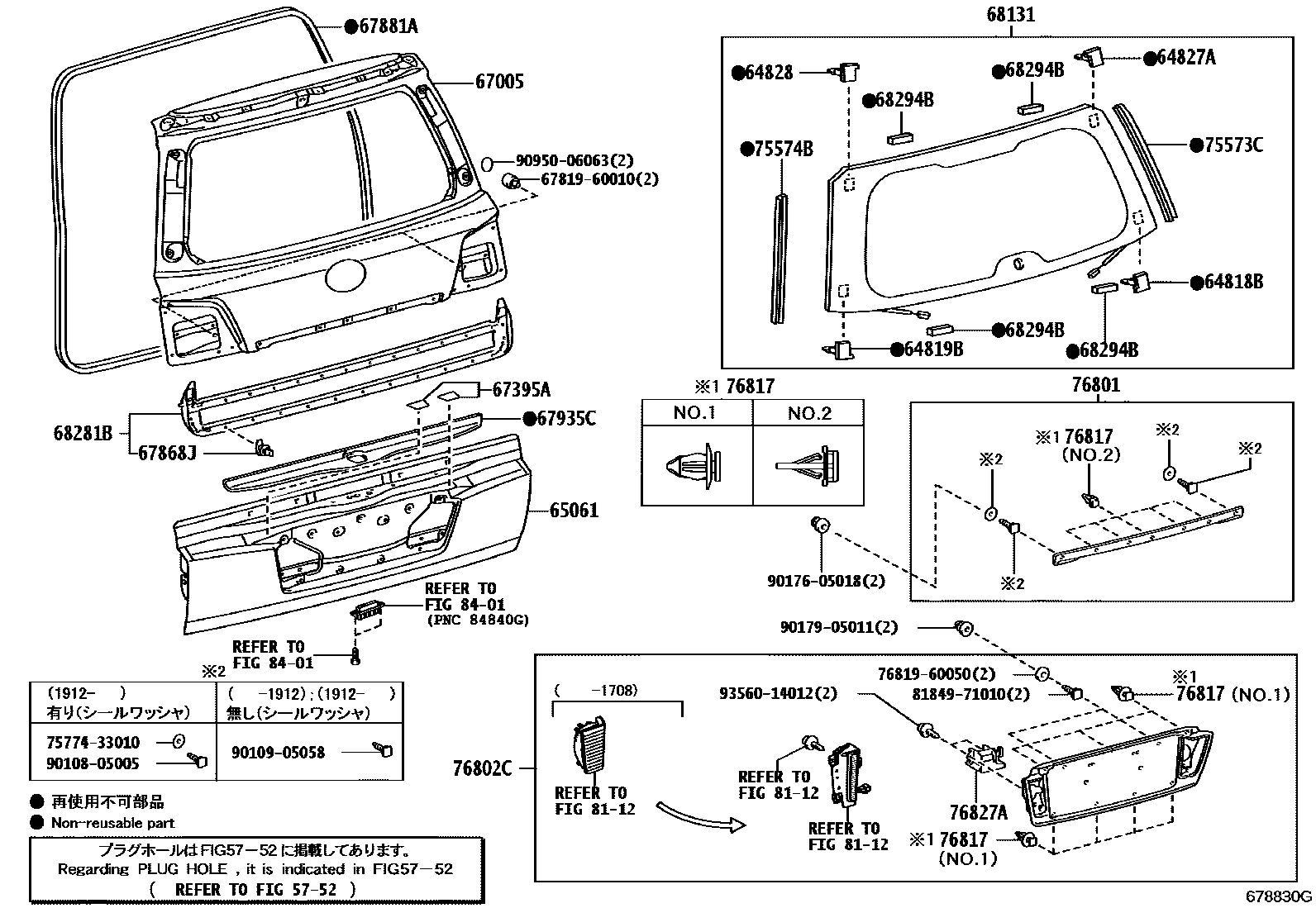

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5752HOLE PLUG

→ Go to FIG 57-52

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-60070iURJ201201509

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-60070iURJ201201509

64827ACLIP, BACK WINDOW GLASS, RH

main64827-60110iURJ201201509

64828CLIP, BACK WINDOW GLASS, LH

main64828-60110iURJ201201509

65061PANEL SUB-ASSY, TAIL GATE

main65061-60371iURJ201201509-201906

main65061-60372iURJ201201907

67005PANEL SUB-ASSY, BACK DOOR

main67005-60K70iURJ201201509

67395APROTECTOR, BACK DOOR, LOWER

main67395-60040iURJ201201509

67868JRETAINER, DOOR WEATHERSTRIP

main67867-12150×23iURJ201201509

main90467-04034×2iURJ201201509

67881AWEATHERSTRIP, BACK DOOR

main67881-60120iURJ201201511

main67881-60150iURJ201201509-201511

67935CGARNISH, BACK DOOR

main67930-60050iURJ201201509

68131GLASS, BACK DOOR

main68105-60320iURJ201201509

68281BWEATHERSTRIP, LIFT GATE

main68281-60030iURJ201201511

main68281-60050iURJ201201509-201511

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iURJ201201509

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-60120iURJ201201509

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-60050iURJ201201509

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-60370iURJ201201509

main76801-60480iURJ201201808

76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2

main76802-60140-A0iURJ201201509-201708

WHITE PEARL CS.,077

main76802-60140-B0iURJ201201509-201708

MERCURY GRAY MC.,1H9

main76802-60140-B1iURJ201201509-201708

SONIC TITANIUM,1J7

main76802-60140-C0iURJ201201509-201708

BLACK,202

main76802-60140-C1iURJ201201509-201708

STARLIGHT BLACK GF.,217

main76802-60140-E0iURJ201201509-201708

SLEEK ECRU ME.,4U7

main76802-60140-J0iURJ201201509-201708

DEEP BLUE MC.,8X5

main76802-60200-A1iURJ201201708

SONIC QUARTZ,085

main76802-60200-B0iURJ201201708-202008

MERCURY GRAY MC.,1H9

main76802-60200-B1iURJ201201708

SONIC TITANIUM,1J7

main76802-60200-C0iURJ201201708

BLACK,202

main76802-60200-C1iURJ201201708

STARLIGHT BLACK GF.,217

main76802-60200-E0iURJ201201708-201912

SLEEK ECRU ME.,4U7

main76802-60200-J0iURJ201201708-202101

DEEP BLUE MC.,8X5

main76802-60240-A0iURJ201201808

main76802-60240-C0iURJ201201808

main76802-60240-C1iURJ201201808

main76802-60240-G0supersedes 76802-60200-G0iURJ201202008

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-68010×7iURJ201201509-201708

main90467-09206×5iURJ201201509

76827ARETAINER, BACK DOOR GARNISH, NO.2

main76827-60030iURJ201201509-201708

main76827-60080iURJ201201708

8112BACK UP LAMP

→ Go to FIG 81-12

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6781960010PAD, BACK DOOR OUTSIDE PANEL

main67819-60010

7577433010PANEL, REAR DOOR OUTER SIDE FINISH, LH

main75774-33010

7681960050SEAL, BACK DOOR OUTSIDE GARNISH

main76819-60050

8184971010

main81849-71010

9010805005

main90108-05005

9010905058

main90109-05058

9017605018

main90176-05018

9017905011

main90179-05011

9095006063

main90950-06063

9356014012

main93560-14012

32 parts on this diagram · 2 diagrams in section
