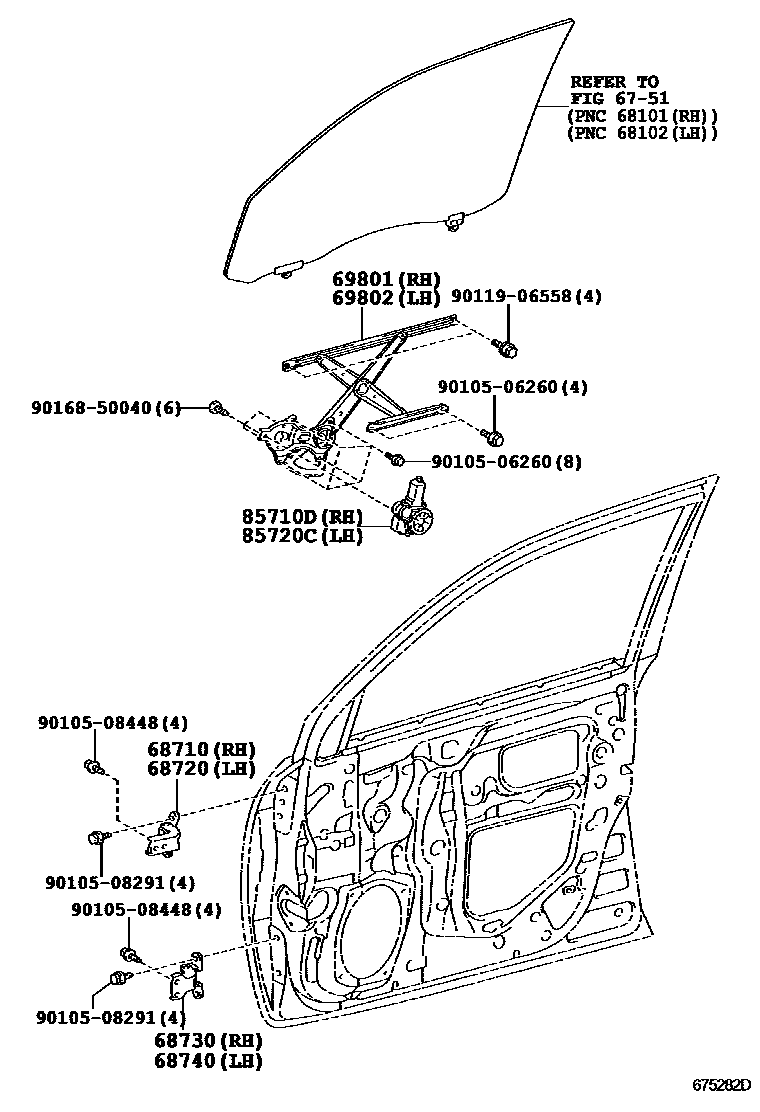

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iURJ201201509

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iURJ201201509

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iURJ201201509

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iURJ201201509

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60080iURJ201201509

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60080iURJ201201509

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-60351iURJ201201509

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-60331iURJ201201509

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906558

main90119-06558

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
