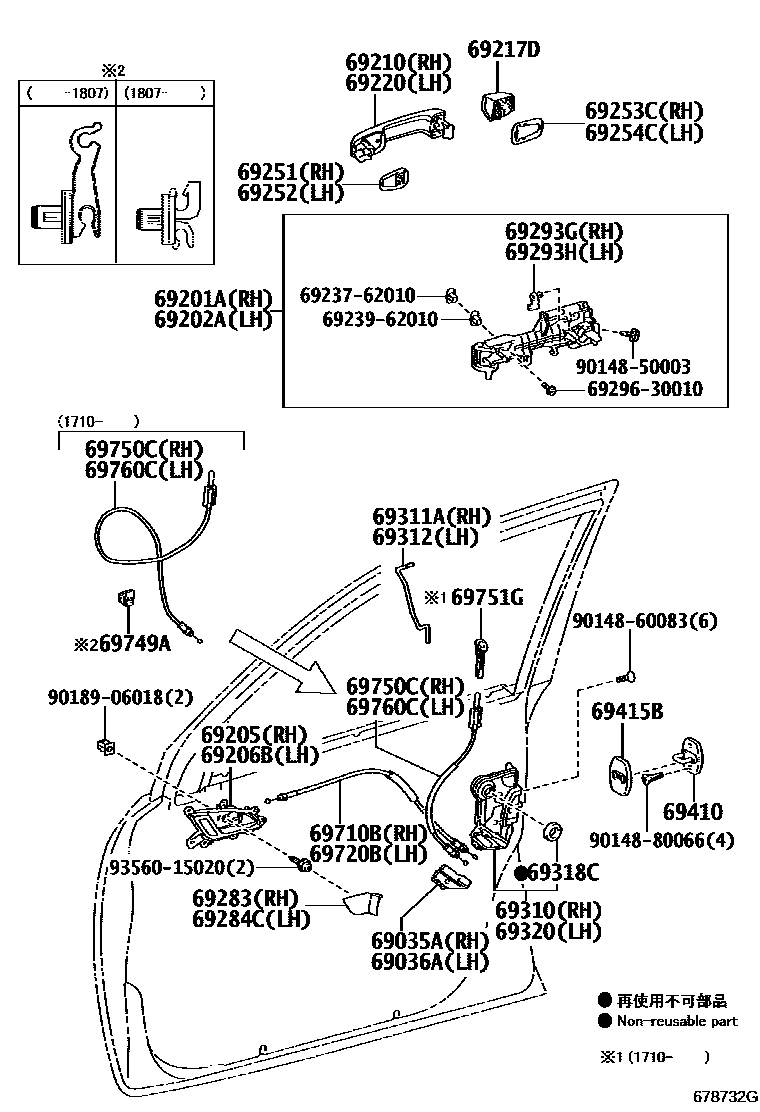

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM05,06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM05,06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM05,06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM05,06,2#,3#,4#,5#
ORCHID BROWN,TRIM02
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923762010RETAINER, DOOR OUTSIDE HANDLE
main69237-62010
6923962010PIN, BACK DOOR OUTSIDE HANDLE
main69239-62010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018906018
main90189-06018
9356015020
main93560-15020
38 parts on this diagram · 1 diagram in section
