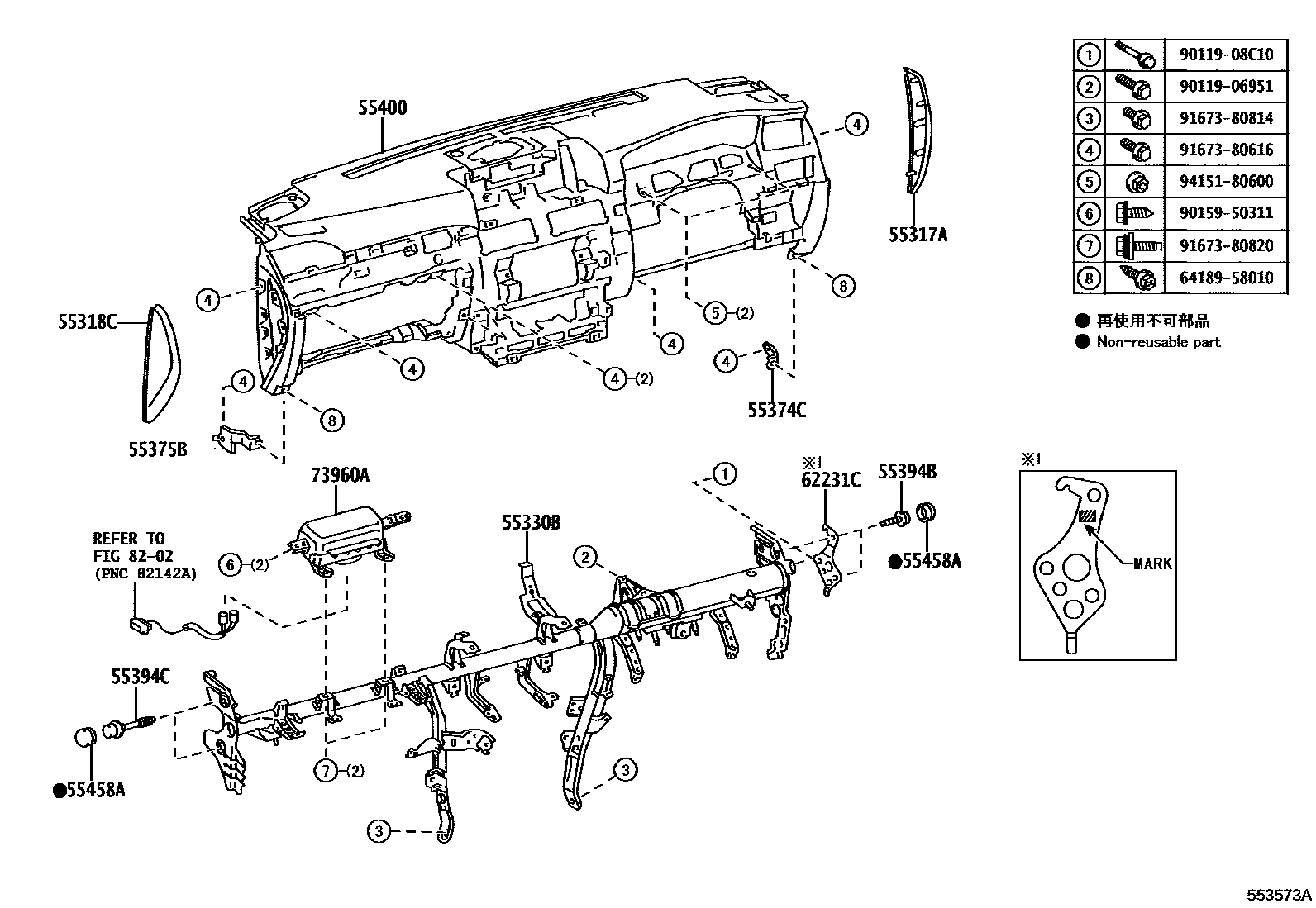

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55317APANEL, INSTRUMENT SIDE, RH

main55317-60021-A2iURJ201201509

IVORY,TRIM02

main55317-60021-C0iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60051-A2iURJ201201509

IVORY,TRIM02

main55318-60051-C0iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60410iURJ201201509-201708

main55330-60470iURJ201201708

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60100iURJ201201509

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60100iURJ201201509

55394BBOLT, INSTRUMENT PANEL

main55394-50010×2iURJ201201509

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iURJ201201509

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60080-C1iURJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

main55400-60080-E2iURJ201201509

ORCHID BROWN,TRIM02

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×4iURJ201201509

62231CSPACER, FRONT PILLAR, NO.1 LH

main62231-60010iURJ201201509

main62231-60020iURJ201201509

main62231-60030iURJ201201509

main62231-60040iURJ201201509

main62231-60050iURJ201201509

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60190iURJ201201509

8202WIRING & CLAMP

→ Go to FIG 82-02

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906951

main90119-06951

9011908C10

main90119-08C10

9015950311

main90159-50311

9167380616

main91673-80616

9167380814

main91673-80814

9167380820

main91673-80820

9415180600

main94151-80600

20 parts on this diagram · 4 diagrams in section
