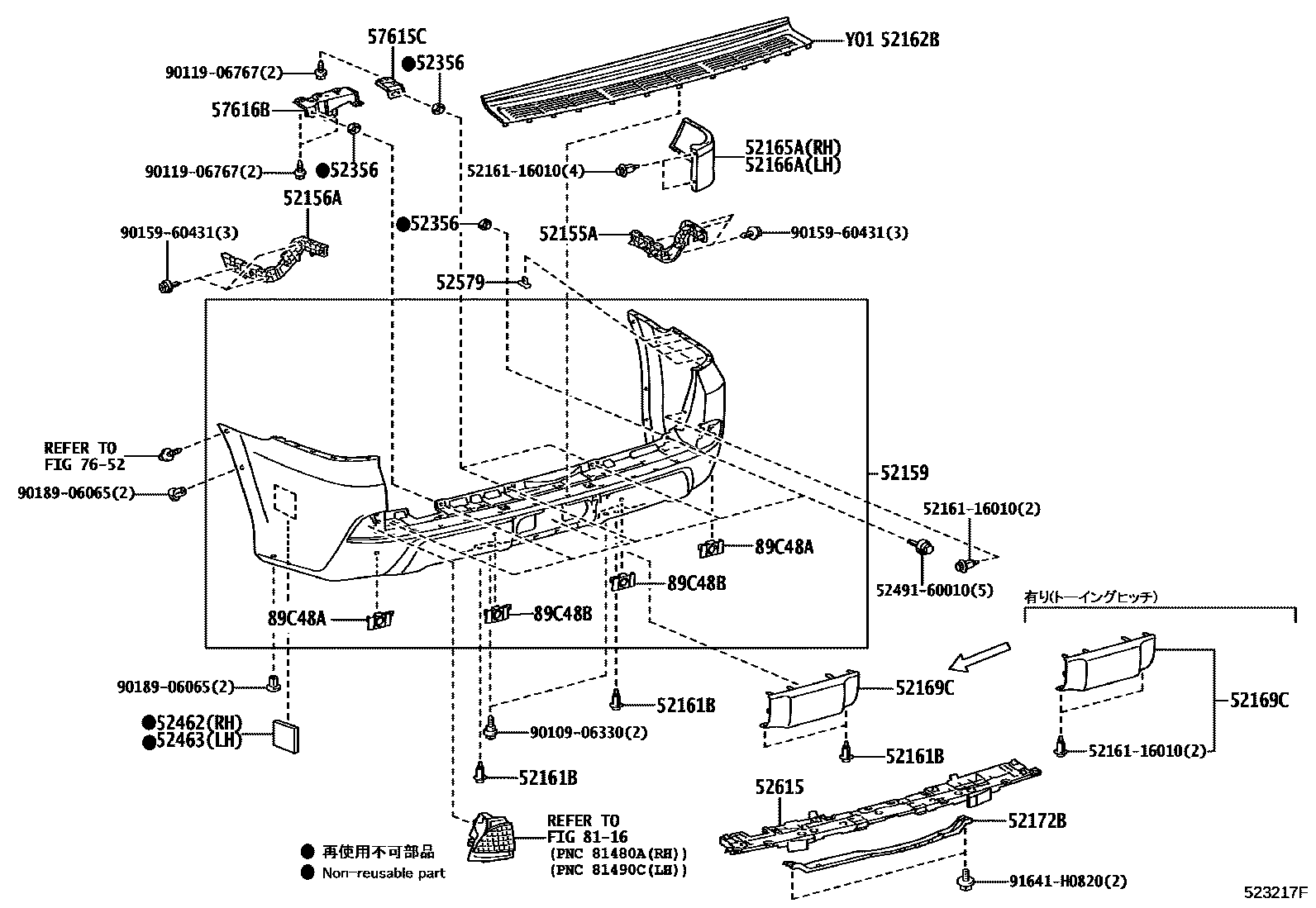

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52165ACOVER, REAR BUMPER, UPR RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
52166ACOVER, REAR BUMPER, UPR LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
52169CCOVER, REAR BUMPER, LOWER
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
DEEP BLUE MC.,8X5
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
SLEEK ECRU ME.,4U7
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
52172BREINFORCEMENT, REAR BUMPER, NO.2
52356CUSHION, REAR BUMPER STEP
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52579RETAINER, REAR BUMPER SIDE, NO.3
52615ABSORBER, REAR BUMPER ENERGY
57615CBRACKET, REAR BUMPER ARM
57616BBRACKET, REAR BUMPER ARM
7652SPOILER & SIDE MUDGUARD
8116REAR FOG LAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5249160010BOLT, BUMPER PAD
main52491-60010
9010906330
main90109-06330
9011906767
main90119-06767
9015960431
main90159-60431
9018906065
main90189-06065
91641H0820
main91641-H0820
27 parts on this diagram · 1 diagram in section
