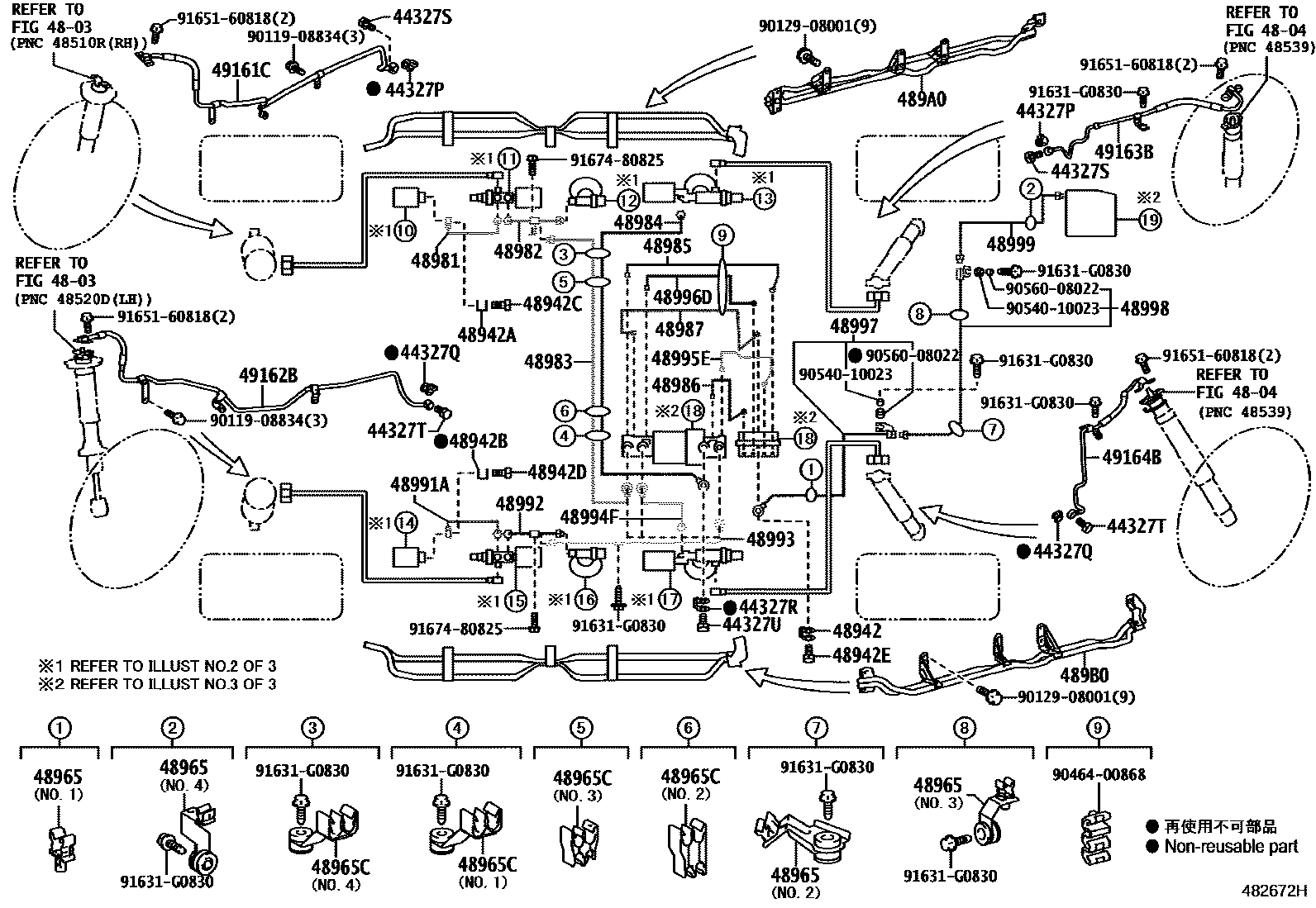

HEIGHT CONTROL (AUTO-LEVELER)
44327PGASKET, PRESSURE PORT, NO.1 RH
44327QGASKET, PRESSURE PORT, NO.1 LH
44327RGASKET, PRESSURE PORT, NO.2
44327SBOLT, UNION, NO.3 RH
44327TBOLT, UNION, NO.3 LH
44327UBOLT, UNION, NO.4
4803FRONT SPRING & SHOCK ABSORBER
4804REAR SPRING & SHOCK ABSORBER
48942GASKET, HEIGHT CONTROL UNION
48942AGASKET, HEIGHT CONTROL UNION RH
48942BGASKET, HEIGHT CONTROL UNION LH
48942CBOLT, UNION, NO.1 RH
48942DBOLT, UNION, NO.1 LH
48942EBOLT, UNION, NO.2
48965CLAMP, HEIGHT CONTROL TUBE
48965CCLAMP, HEIGHT CONTROL TUBE, NO.1
48982TUBE, HEIGHT CONTROL, NO.2
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48985TUBE, HEIGHT CONTROL, NO.5
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48991ATUBE, HEIGHT CONTROL, LH NO.1
48992TUBE, HEIGHT CONTROL, LH NO.2
48993TUBE, HEIGHT CONTROL, LH NO.3
48994FTUBE, HEIGHT CONTROL, LH NO.4
48995ETUBE, HEIGHT CONTROL, LH NO.5
48996DTUBE, HEIGHT CONTROL, LH NO.6
48997TUBE, HEIGHT CONTROL, REAR NO.4
48998TUBE, HEIGHT CONTROL, REAR NO.5
48999TUBE, HEIGHT CONTROL, REAR NO.6
489A0PROTECTOR ASSY, HEIGHT CONTROL UNIT, RH
489B0PROTECTOR ASSY, HEIGHT CONTROL UNIT, LH
49161CHOSE, SUSPENSION CONTROL PRESSURE, NO.1
49162BHOSE, SUSPENSION CONTROL PRESSURE, NO.2
49163BHOSE, SUSPENSION CONTROL PRESSURE, NO.3
49164BHOSE, SUSPENSION CONTROL PRESSURE, NO.4
9011908834
main90119-08834
9012908001
main90129-08001
9046400868
main90464-00868
9054010023
main90540-10023
9056008022
main90560-08022
91631G0830
main91631-G0830
9165160818
main91651-60818
9167480825
main91674-80825
46 parts on this diagram · 3 diagrams in section
