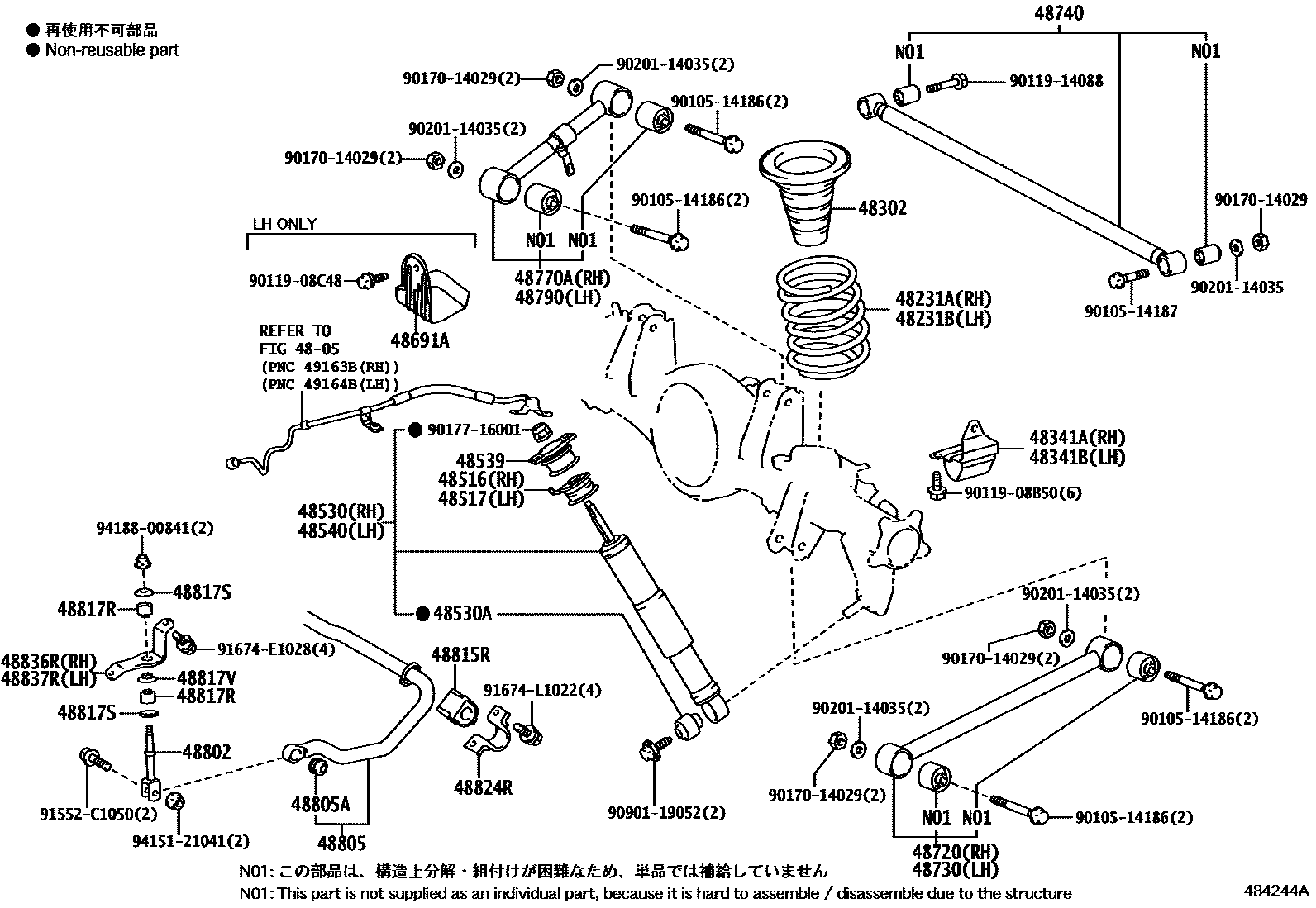

REAR SPRING & SHOCK ABSORBER

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48231ASPRING, COIL, REAR RH

main48231-60E10iURJ201201509

main48231-60D90iURJ201201708

48231BSPRING, COIL, REAR LH

main48231-60E00iURJ201201509

main48231-60D80iURJ201201708

48302SPRING SUB-ASSY, HOLLOW

main48302-60100×2iURJ201201509

48341ABUMPER, REAR SPRING, NO.1 RH

main48306-60221iURJ201201509

48341BBUMPER, REAR SPRING, NO.1 LH

main48306-60221iURJ201201509

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-60060iURJ201201509

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-60060iURJ201201509

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-69415iURJ201201509

main48530-69725iURJ201201906

main48530-69735iURJ201201906

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19010×2iURJ201201509

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-60020×2iURJ201201509

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-69415iURJ201201509

main48530-69725iURJ201201906

main48530-69735iURJ201201906

48691AINSULATOR, UPPER ARM BUSH, HEAT

main48691-60020iURJ201201509

48720ARM ASSY, LOWER CONTROL, RH

main48720-60070iURJ201201509

48730ARM ASSY, LOWER CONTROL, LH

main48720-60070iURJ201201509

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60150iURJ201201509

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-60121iURJ201201509

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-60131iURJ201201509

48802LINK SUB-ASSY, STABILIZER

main48802-60110×2iURJ201201509

48805BAR SUB-ASSY, REAR STABILIZER

main48805-60120iURJ201201509

48805ABUSH(FOR REAR STABILIZER BAR)

main48849-60010×2iURJ201201509

48815RBUSH, STABILIZER(FOR REAR)

main48815-60241×2iURJ201201509

48817RCUSHION, STABILIZER(FOR REAR)

main48817-60020×4iURJ201201509

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02200×4iURJ201201509

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02197×2iURJ201201509

48824RBRACKET, STABILIZER(FOR REAR)

main48824-26230×2iURJ201201509

48836RBRACKET, REAR STABILIZER END, RH

main48836-60080iURJ201201509

48837RBRACKET, REAR STABILIZER END, LH

main48837-60050iURJ201201509

9010514186

main90105-14186

9010514187

main90105-14187

9011908B50

main90119-08B50

9011908C48

main90119-08C48

9011914088

main90119-14088

9017014029

main90170-14029

9017716001

main90177-16001

9020114035

main90201-14035

9090119052

main90901-19052

91552C1050

main91552-C1050

91674E1028

main91674-E1028

91674L1022

main91674-L1022

9415121041

main94151-21041

9418800841

main94188-00841

42 parts on this diagram · 1 diagram in section
