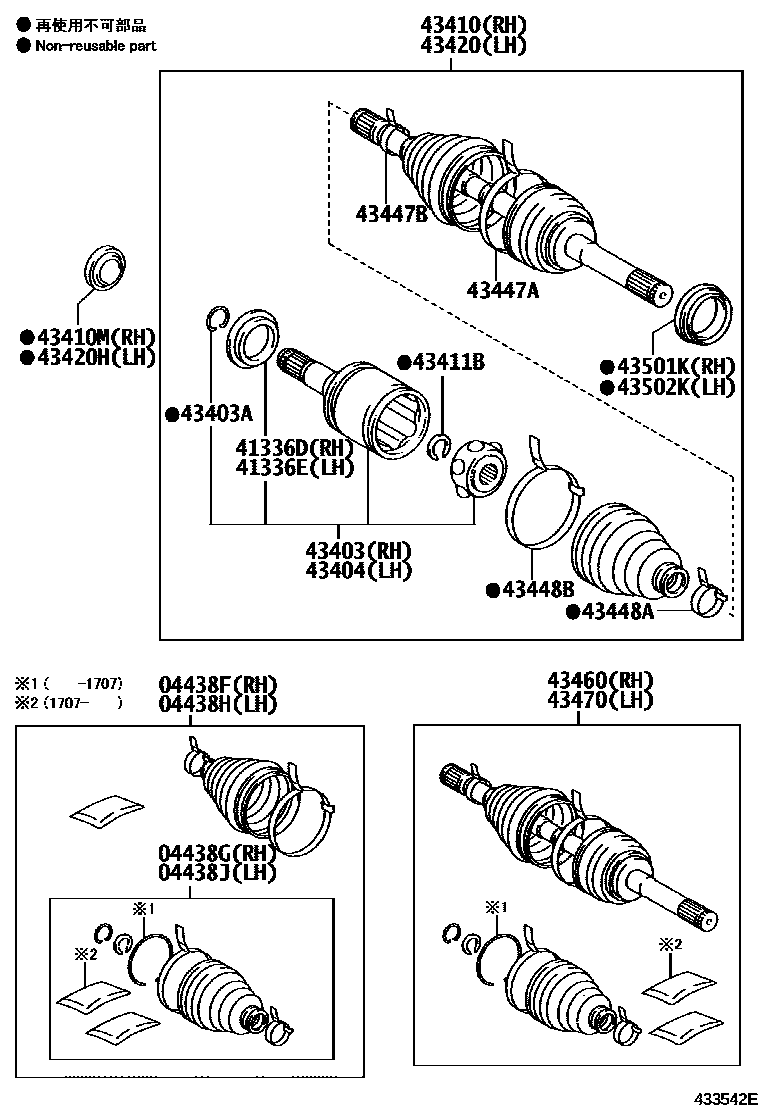

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-60090i201509-201707

main04427-60092i201707

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-60050i201509-201707

main04437-60052i201707

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-60090i201509

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-60050i201509

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-35020i201509

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-35020i201509

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-60030i201509

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-37010×2i201509

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-60030i201509

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-60071i201509

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-47013i201509-201511

main90311-47026i201511

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main43425-60030×2i201509

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-60071i201509

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-47012i201509-201511

main90311-47027i201511

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60140×2i201509-202103

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60130×2i201509

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-60130×2i201509

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-60150×2i201509

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69175i201509-201707

main43460-69236i201707

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-69175i201509-201707

main43460-69236i201707

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-94001i201509

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-94001i201509

22 parts on this diagram · 1 diagram in section
