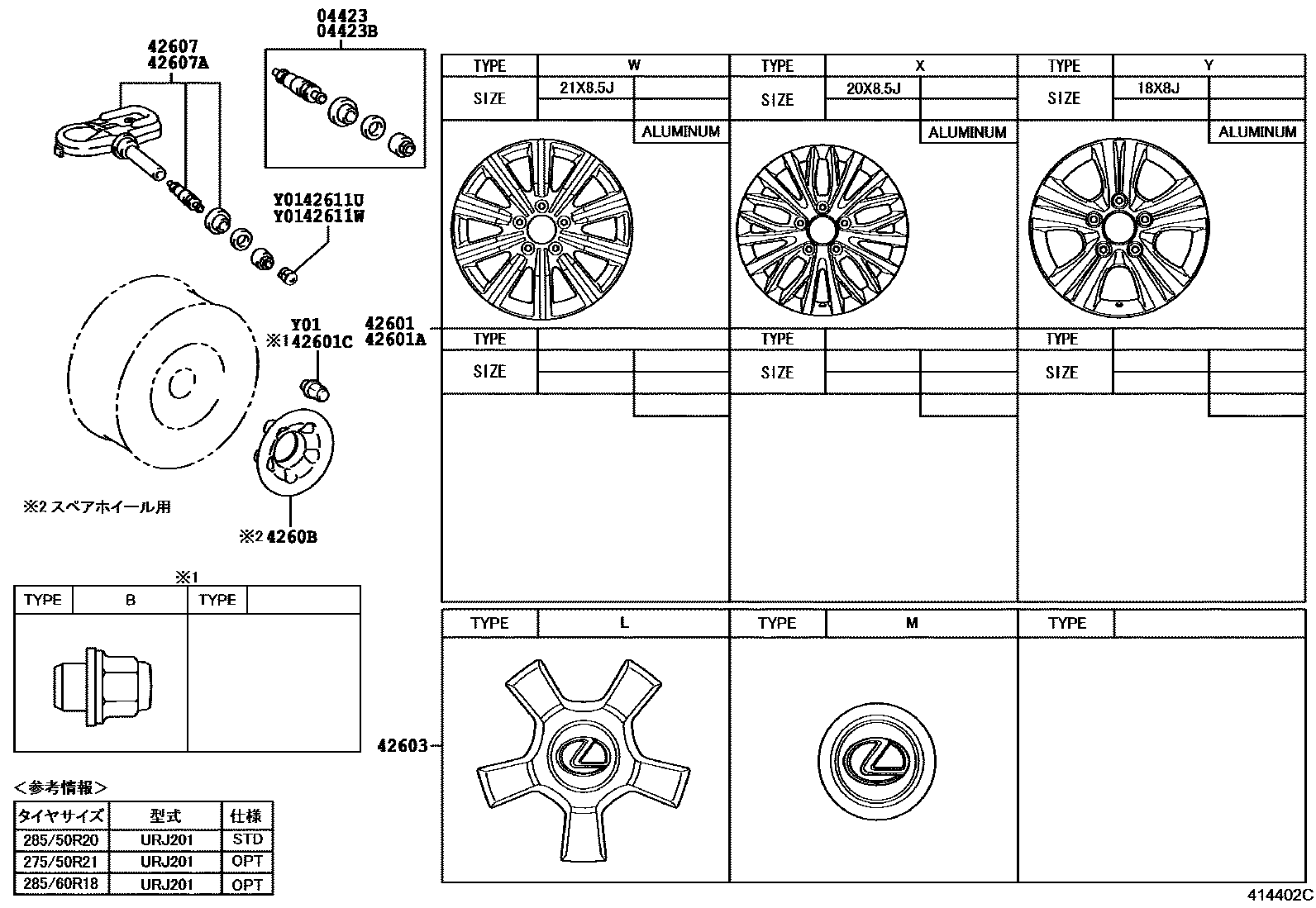

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iURJ201201509

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-33060iURJ201201509

42601WHEEL, DISC

main42611-60C90×4iURJ201201509-201708

sub42611-60C91

main42611-60D10×4supersedes 42611-60D01iURJ201201509-201607

main42611-60D11×4iURJ201201608-201708

sub42611-60D12

main42611-60E20×4iURJ201201708-201908

main42611-60E21×4supersedes 42611-60D01iURJ201201909

main42611-60E30×4iURJ201201708-201908

main42611-60E31×4supersedes 42611-60D01iURJ201201909

42601AWHEEL, DISC (FOR SPARE)

main42611-60C90iURJ201201509-201708

sub42611-60C91

main42611-60D10supersedes 42611-60D01iURJ201201509-201607

main42611-60D11iURJ201201608-201708

sub42611-60D12

main42611-60E20iURJ201201708-201908

main42611-60E21supersedes 42611-60D01iURJ201201909

main42611-60E30iURJ201201708-201908

main42611-60E31supersedes 42611-60D01iURJ201201909

42601CNUT, HUB (FOR AXLE)

main90942-01103×20iURJ201201509

42603ORNAMENT SUB-ASSY, WHEEL HUB

main4260B-60390×4iURJ201201509

main4260B-60380×4iURJ201201509-201708

main4260B-60440×4iURJ201201708

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48010×4iURJ201201509

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-48010iURJ201201509

4260BCOVER SUB-ASSY, WHEEL HUB

main4260B-60410iURJ201201509

42611UCAP, TIRE VALVE

main90942-05042×4iURJ201201509

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05042iURJ201201509

11 parts on this diagram · 2 diagrams in section
