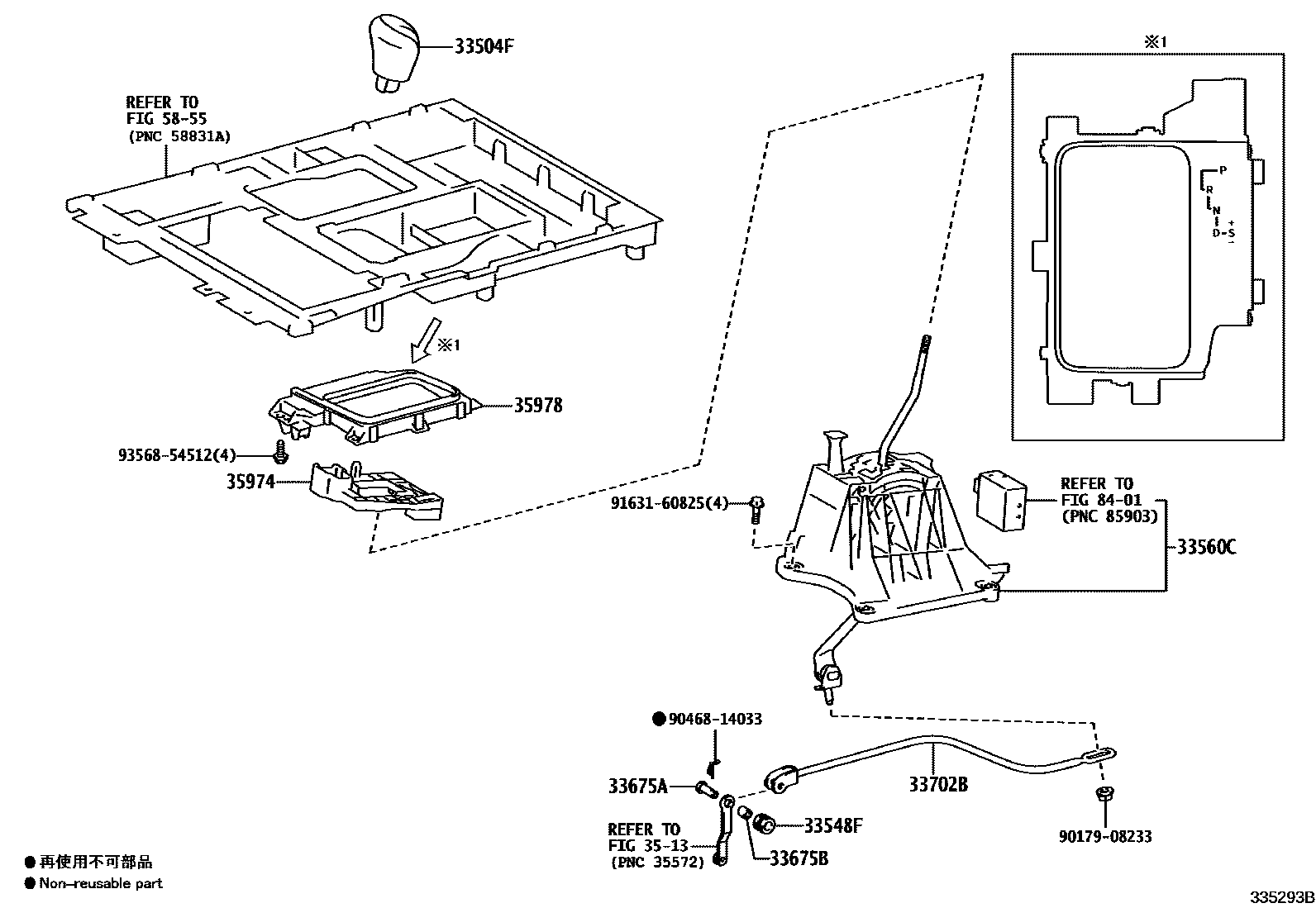

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60500-C0iURJ201201509

BLACK,TRIM0#,2#,3#,4#,5#

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60060iURJ201201509

33560CLEVER ASSY, SHIFT, LOWER

main33560-60240iURJ201201509-201707

main33560-60241iURJ201201708

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08054iURJ201201509

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iURJ201201509

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-60140iURJ201201509

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60170iURJ201201509

35978INDICATOR, SHIFT POSITION

main35978-60080iURJ201201509

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908233

main90179-08233

9046814033

main90468-14033

9163160825

main91631-60825

9356854512

main93568-54512

15 parts on this diagram · 1 diagram in section
