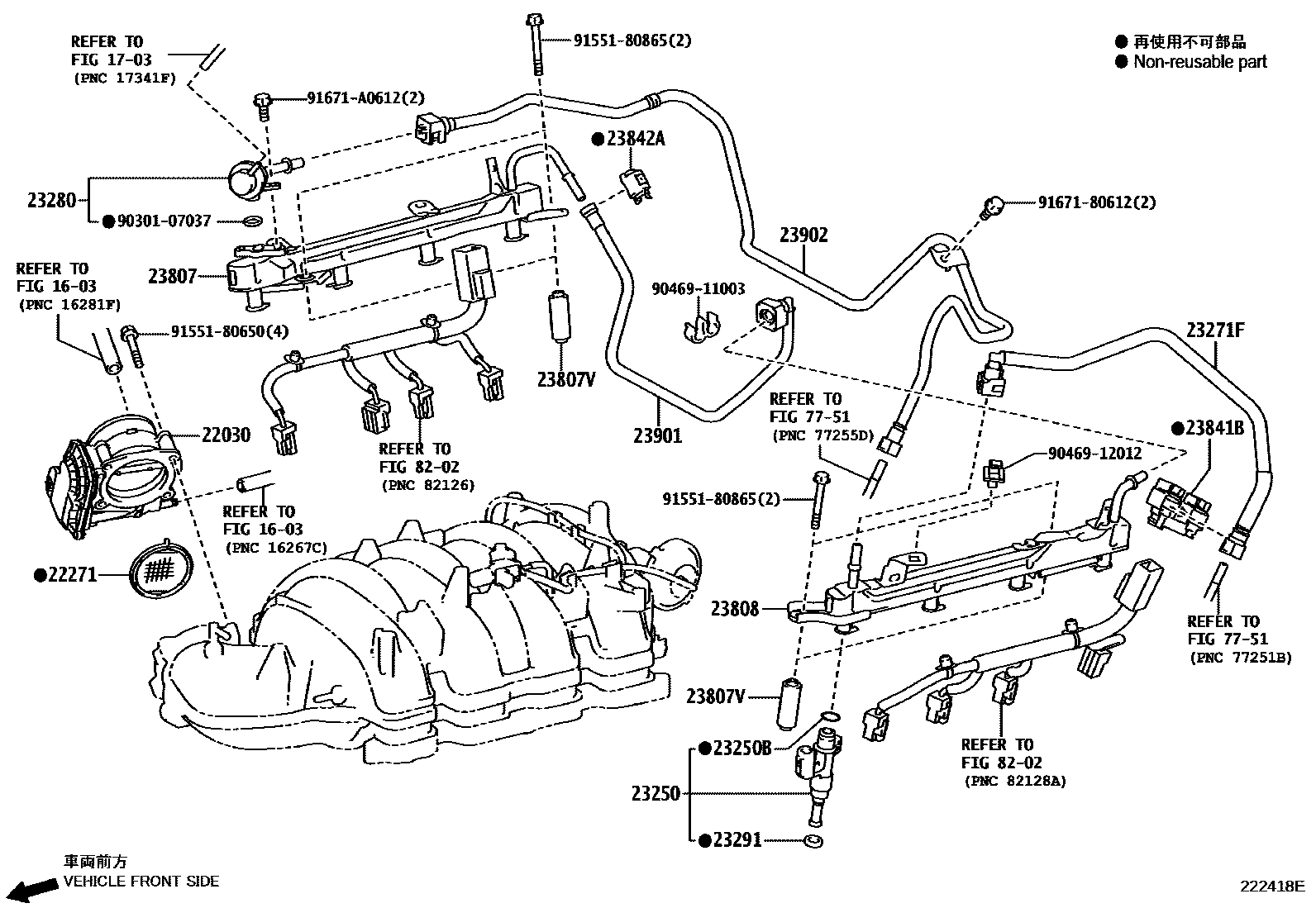

FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1703AIR CLEANER

→ Go to FIG 17-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-38020i3URFE..URJ201201509

22271GASKET, THROTTLE BODY

main22271-38010i3URFE..URJ201201509

23250INJECTOR ASSY, FUEL

main23209-39165×8i3URFE..URJ201201509

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×8i3URFE..URJ201201509

23271FHOSE, FUEL

main23271-38050i3URFE..URJ201201509

23280REGULATOR ASSY, FUEL PRESSURE

main23280-38011i3URFE..URJ201201509

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×8i3URFE..URJ201201509

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-38032i3URFE..URJ201201509

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020×4i3URFE..URJ201201509

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23815-38011i3URFE..URJ201201509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-50020i3URFE..URJ201201509

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i3URFE..URJ201201509

23901TUBE SUB-ASSY, FUEL

main23901-38011i3URFE..URJ201201509

23902TUBE SUB-ASSY, FUEL

main23902-38011i3URFE..URJ201201509

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8202WIRING & CLAMP

→ Go to FIG 82-02

9030107037

main90301-07037

9046911003

main90469-11003

9046912012

main90469-12012

9155180650

main91551-80650

9155180865

main91551-80865

9167180612

main91671-80612

91671A0612

main91671-A0612

25 parts on this diagram · 1 diagram in section
