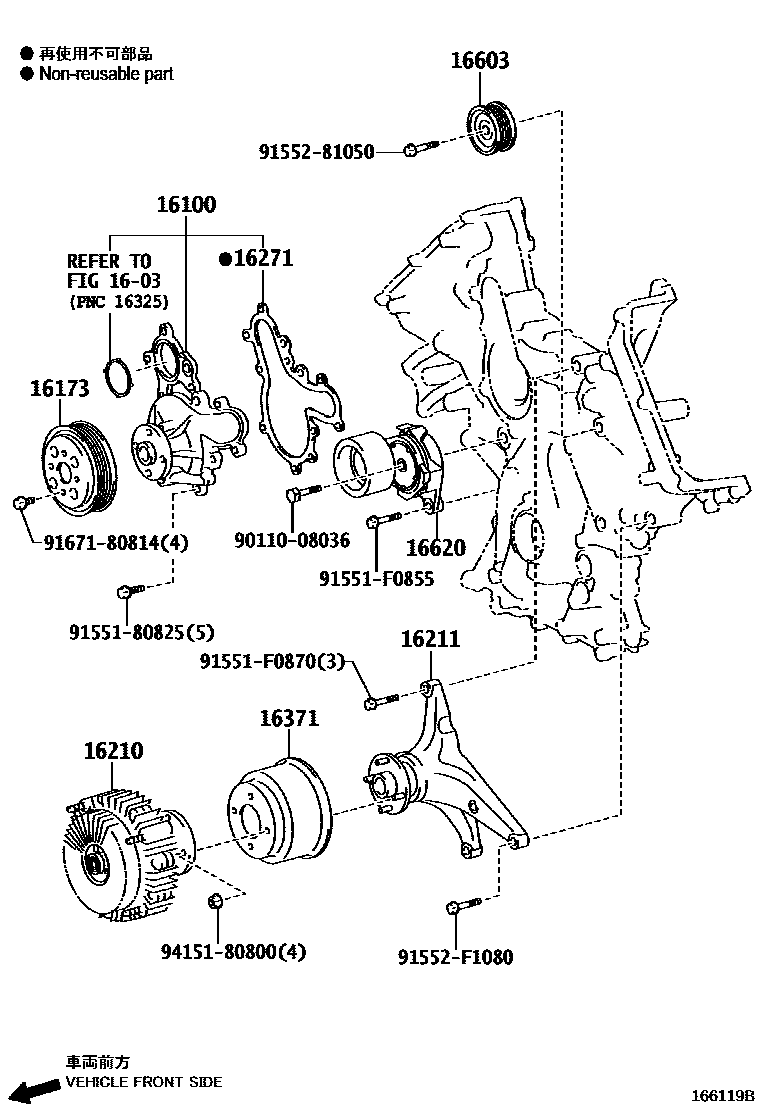

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39496i3URFE..URJ201201509

16173PULLEY, WATER PUMP

main16173-38030i3URFE..URJ201201509-202004

main16173-38031i3URFE..URJ201202005

16210COUPLING ASSY, FLUID

main16210-38071i3URFE..URJ201201509

16211BRACKET, FLUID COUPLING

main16380-38010i3URFE..URJ201201509

16271GASKET, WATER PUMP

main16271-38020i3URFE..URJ201201509

16371PULLEY, FAN

main16371-38010i3URFE..URJ201201509

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-38011i3URFE..URJ201201509-201902

main16603-38012i3URFE..URJ201201903

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S011i3URFE..URJ201201509-201706

main16620-0S012i3URFE..URJ201201707

9011008036

main90110-08036

9155180825

main91551-80825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

9155281050

main91552-81050

91552F1080

main91552-F1080

9167180814

main91671-80814

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
