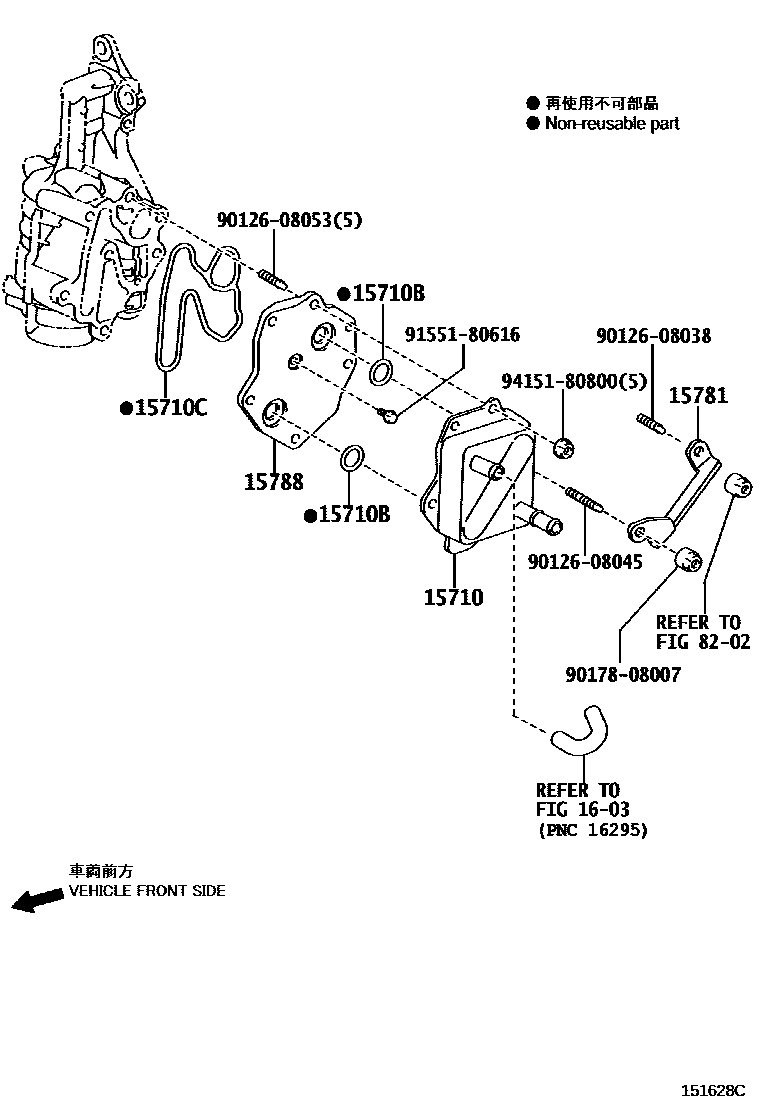

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-38021i3URFE..URJ201201509

15710BRING, O(FOR OIL COOLER)

main90301-21017×2i3URFE..URJ201201509

15710CGASKET(FOR OIL COOLER)

main15785-38010i3URFE..URJ201201509

15781BRACKET, OIL COOLER, NO.1

main15781-38030i3URFE..URJ201201509

15788SPACER, OIL COOLER

main15788-38010i3URFE..URJ201201509

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9012608038

main90126-08038

9012608045

main90126-08045

9012608053

main90126-08053

9017808007

main90178-08007

9155180616

main91551-80616

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
