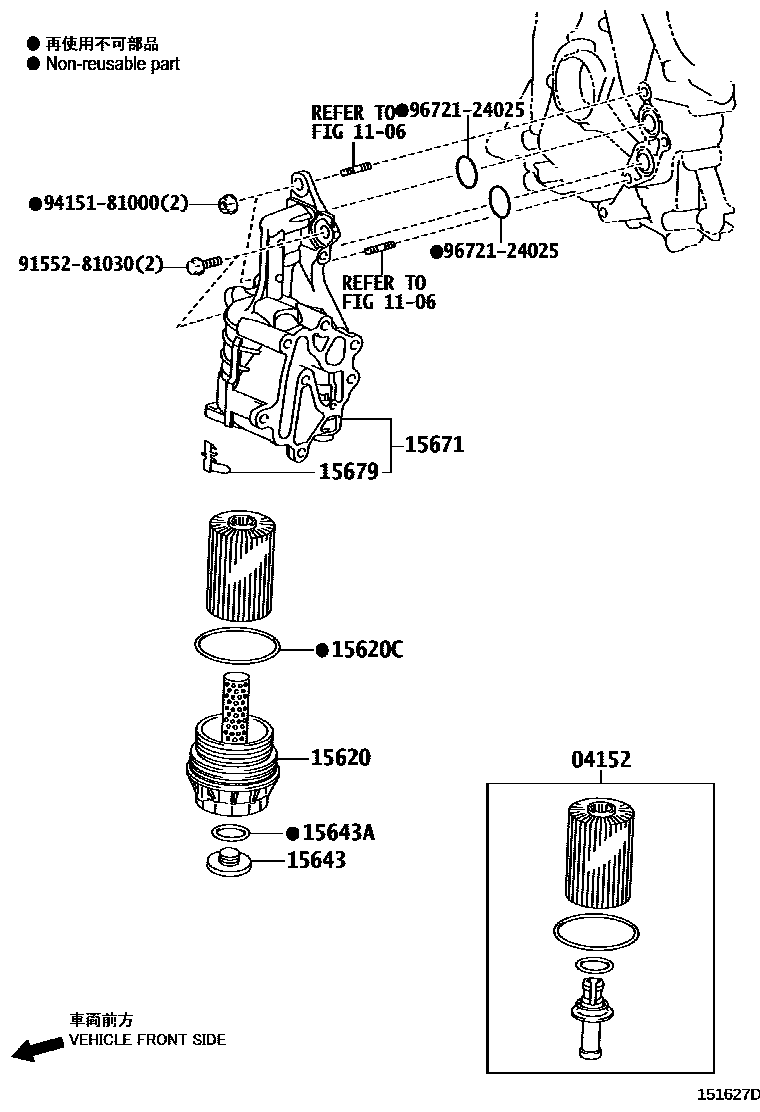

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-38020i3URFE..URJ201201509

1106

15620CAP ASSY, OIL FILTER

main15620-38010i3URFE..URJ201201509

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i3URFE..URJ201201509

15643PLUG, OIL FILTER DRAIN

main15643-31050i3URFE..URJ201201509

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i3URFE..URJ201201509

15671BRACKET, OIL FILTER

main15670-38011i3URFE..URJ201201509

15679CLIP, OIL FILTER BRACKET

main15679-37011i3URFE..URJ201201509

9155281030

main91552-81030

9415181000

main94151-81000

9672124025

main96721-24025

11 parts on this diagram · 1 diagram in section
