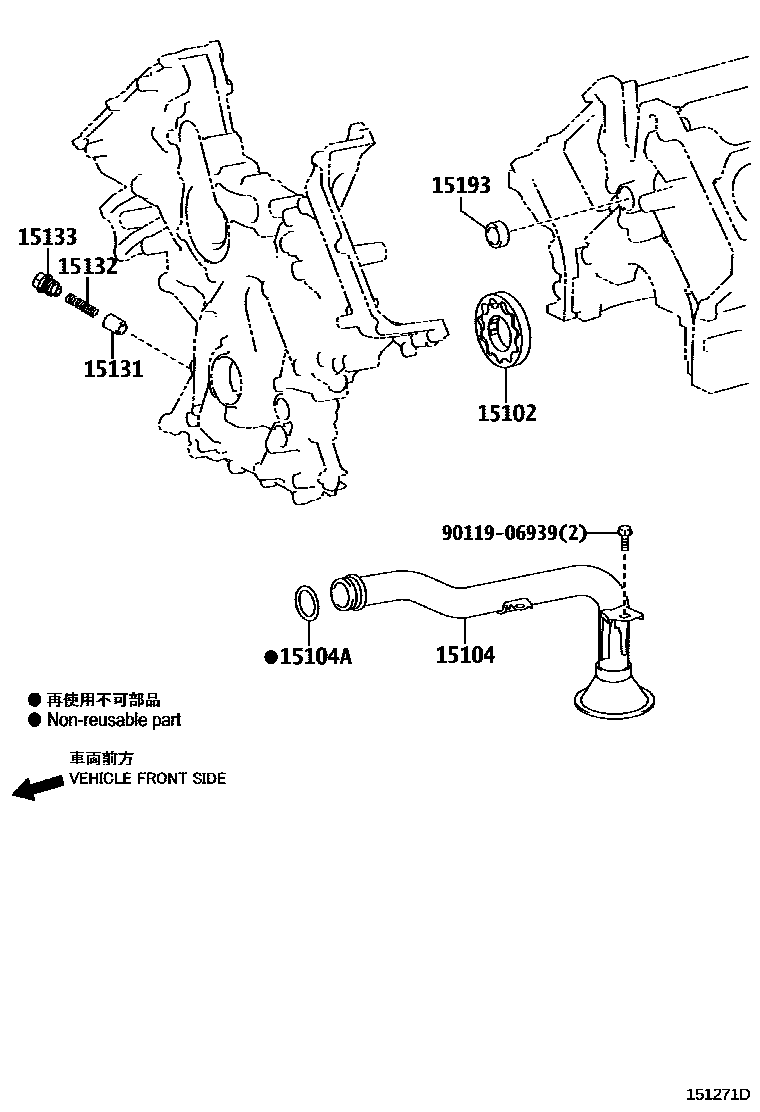

ENGINE OIL PUMP

15102ROTOR SET, OIL PUMP

main15103-38060i3URFE..URJ201201509

15104STRAINER SUB-ASSY, OIL

main15104-0S010i3URFE..URJ201201509

15104ARING, O(FOR OIL STRAINER)

main96721-24031i3URFE..URJ201201509

15131VALVE, OIL PUMP RELIEF

main15131-38070i3URFE..URJ201201509

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i3URFE..URJ201201509

15133PLUG, OIL PUMP RELIEF VALVE

main15133-38070i3URFE..URJ201201509

15193GASKET, OIL PUMP

main15193-38010i3URFE..URJ201201509

9011906939

main90119-06939

8 parts on this diagram · 1 diagram in section
