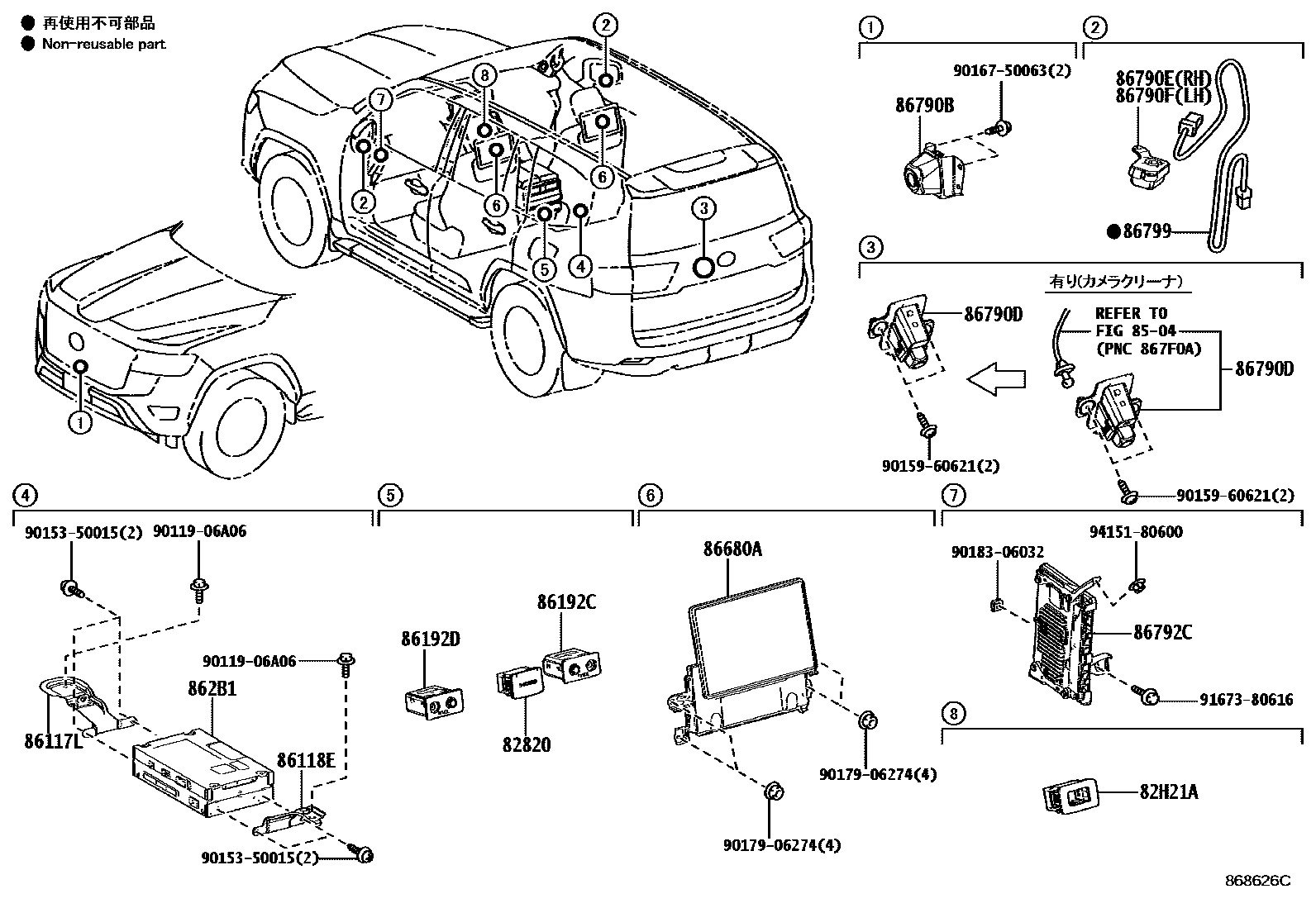

CAMERA & REAR MONITOR DISPLAY

82820COVER, CONNECTOR

main82821-58050-C2iFJA300,VJA300..GRS,ZX202107-202411

82H21ACOVER, CONNECTOR

8504REAR WASHER

→ Go to FIG 85-04

86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1

main86117-60190iFJA300,VJA300..GRS,ZX202107-202411

86118EBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86118-60140iFJA300,VJA300..GRS,ZX202107-202411

86192CTERMINAL, HEADPHONE, RH

main86192-50040iFJA300,VJA300..GRS,ZX202107-202411

86192DTERMINAL, HEADPHONE, LH

main86192-50030iFJA300,VJA300..GRS,ZX202107-202411

862B1CONTROLLER, MULTI-DISPLAY

main862B1-60010iFJA300,VJA300..GRS,ZX202107-202202

main862B1-60011iFJA300,VJA300..GRS,ZX202203-202211

main862B1-60012iFJA300,VJA300..GRS,ZX202212-202411

86680ADISPLAY ASSY, TELEVISION

main86680-60460×2iFJA300,VJA300..GRS,ZX202107-202411

86790BCAMERA ASSY, TELEVISION, FR

main86790-60340iFJA300,VJA300..AX,STD,VX,ZX202107-202411

main86790-60420iFJA300,VJA300..GRS202107-202411

86790DCAMERA ASSY, TELEVISION, RR

main867B0-60220iFJA300,VJA300202107-202411

main867B0-60230iFJA300; VJA300202107-202411

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-60330iFJA300,VJA300202107-202411

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-60320iFJA300,VJA300202107-202411

86792CCOMPUTER, PARKING ASSIST

main86792-60750iFJA300,VJA300202107-202411

main86792-60720iFJA300,VJA300..GRS,ZX; VJA300..7S202107-202411

86799WIRE, TELEVISION CAMERA

main86799-60070×2iFJA300,VJA300202107-202411

9011906A06

main90119-06A06

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018306032

main90183-06032

9167380616

main91673-80616

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
