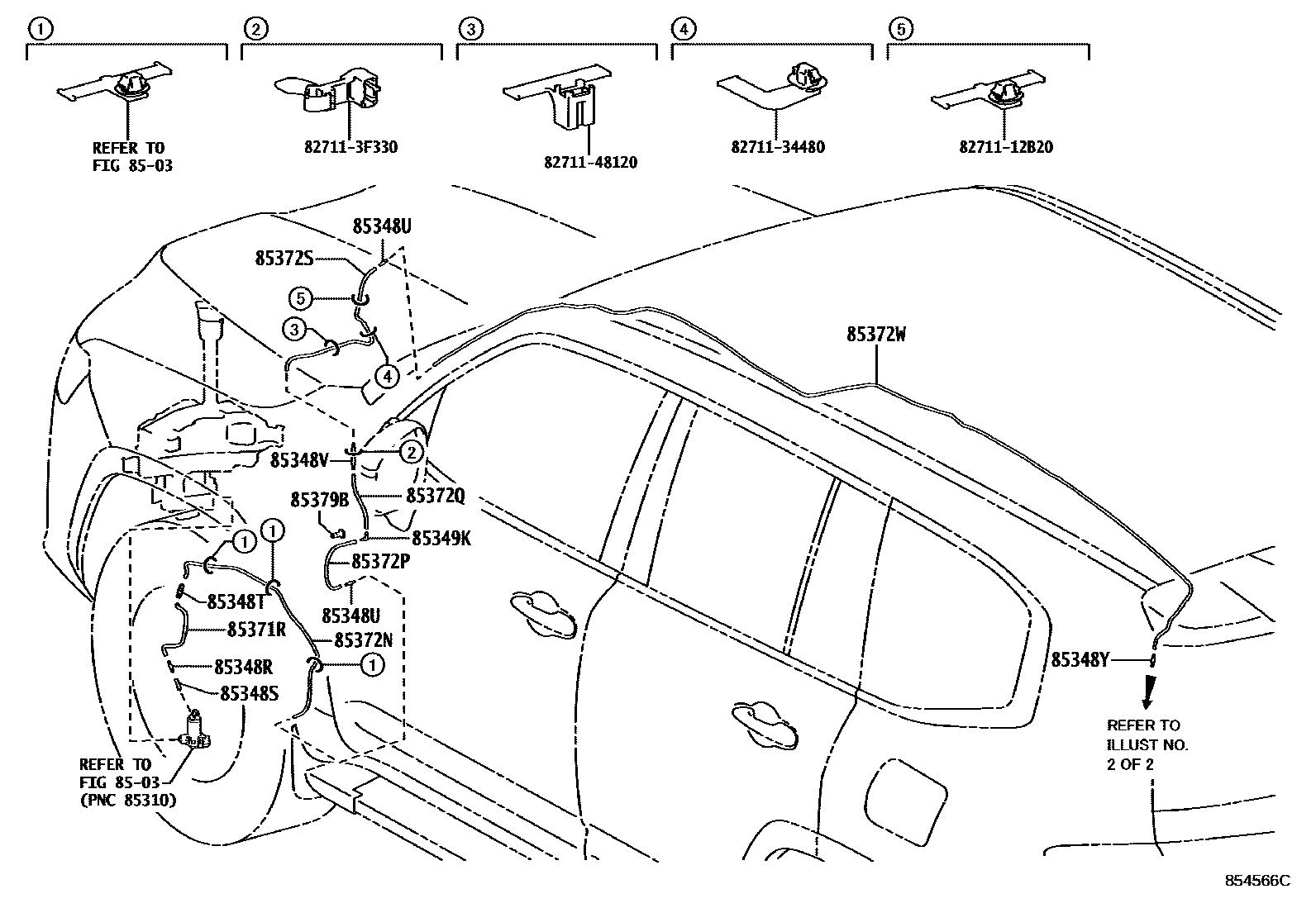

REAR WASHER

0001 1 0002 1 0003 1��(�������)

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iFJA300,VJA300202107-202411

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iFJA300,VJA300202107-202411

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iFJA300,VJA300202107-202411

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122×2iFJA300,VJA300202107-202411

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-32150iFJA300,VJA300202107-202411

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iFJA300,VJA300202107-202411

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iFJA300,VJA300202107-202411

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62085iFJA300,VJA300202107-202411

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62251iFJA300,VJA300202107-202411

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263iFJA300; FJA300,VJA300; FJA300,VJA300..GRS; FJA300..GRS; VJA300; VJA300..AX,STD; VJA300..GRS; VJA300..VX202107-202411

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62263iFJA300; FJA300,VJA300; FJA300,VJA300..GRS; FJA300..GRS; VJA300; VJA300..AX,STD; VJA300..GRS; VJA300..VX202107-202411

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62263iFJA300; FJA300,VJA300; FJA300,VJA300..GRS; FJA300..GRS; VJA300; VJA300..AX,STD; VJA300..GRS; VJA300..VX202107-202411

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-62259iFJA300; FJA300,VJA300..GRS,ZX; VJA300..AX,STD; VJA300..GRS,ZX; VJA300..VX202107-202411

main90099-62248iFJA300,VJA300..GRS; FJA300..GRS; VJA300..AX,STD,VX; VJA300..GRS202107-202411

85379BGROMMET, WASHER, A

main85379-12850iFJA300,VJA300202107-202411

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B20

8271134480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34480

827113F330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F330

8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48120

19 parts on this diagram · 3 diagrams in section
