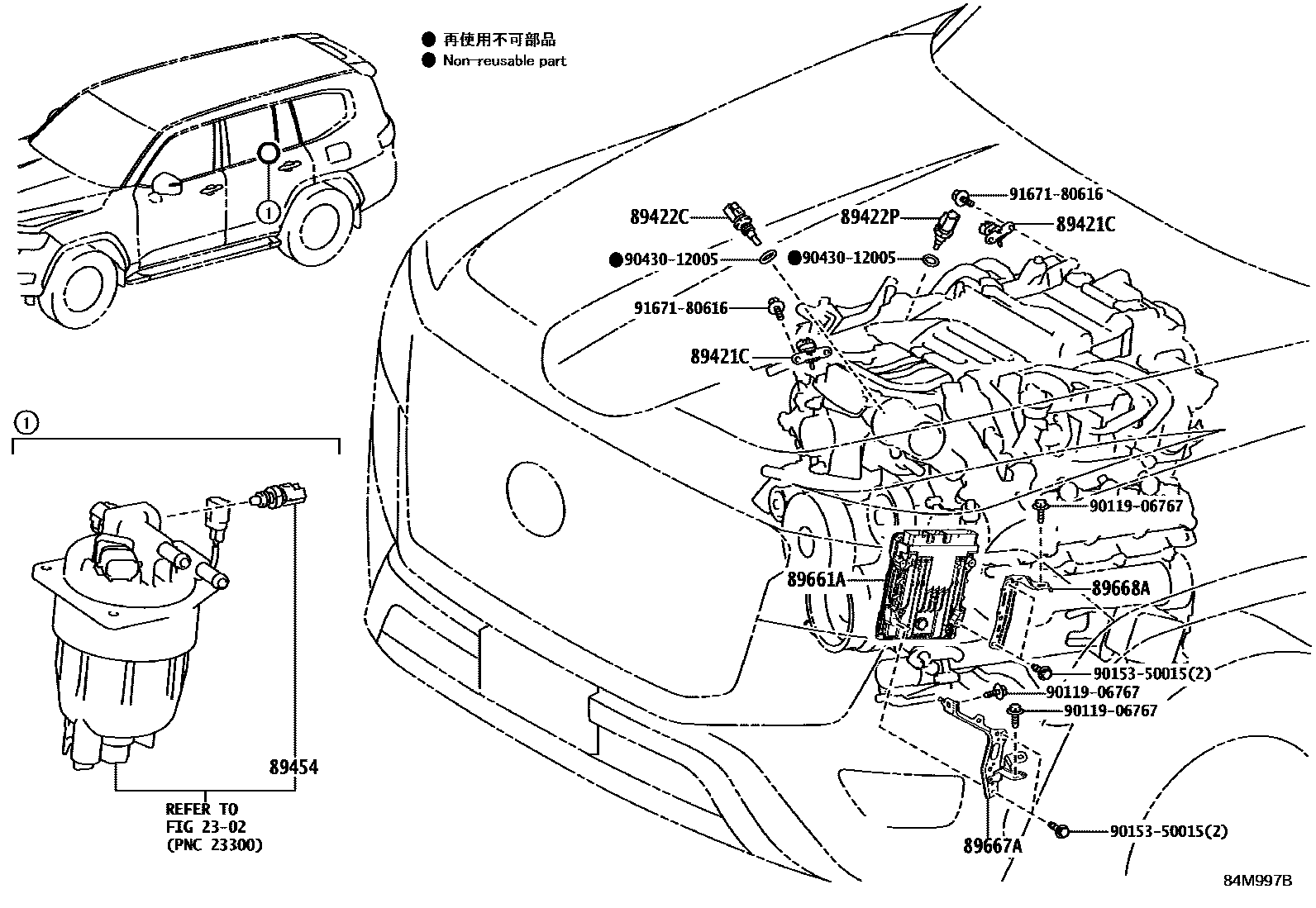

ELECTRONIC CONTROLED DIESEL (ECD)

2302FUEL FILTER

→ Go to FIG 23-02

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200×2iFJA300202107-202411

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iFJA300202107-202411

89422PSENSOR, WATER TEMPERATURE

main89422-33030iFJA300202107-202411

89454SENSOR, FUEL TEMPERATURE

main89454-20010iFJA300202107-202411

89661ACOMPUTER, ENGINE CONTROL

main89666-60L80iFJA300202107-202402

main89666-60L81iFJA300202403-202411

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60300iFJA300202107-202411

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60320iFJA300202107-202411

9011906767

main90119-06767

9015350015

main90153-50015

9043012005

main90430-12005

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
