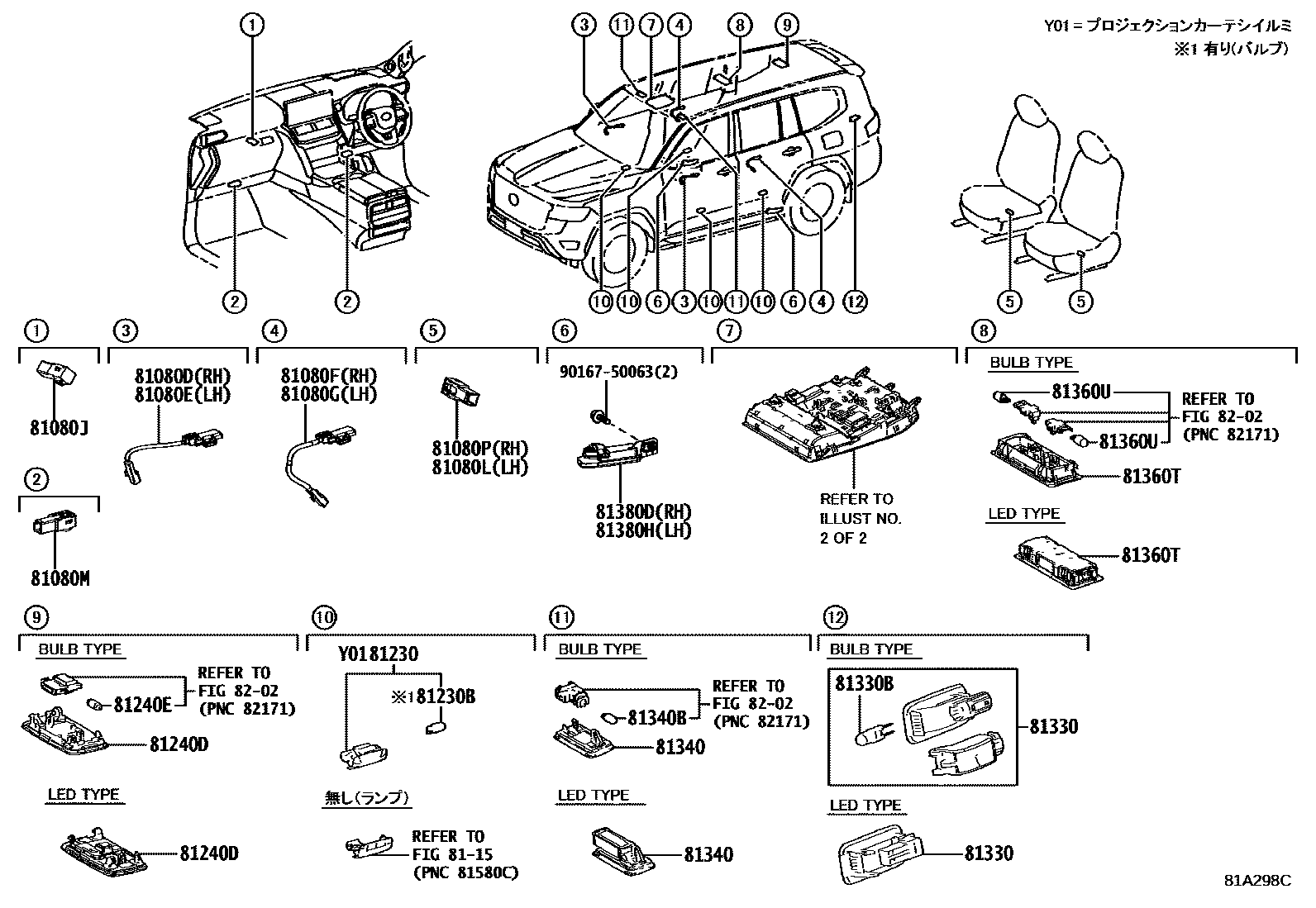

INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202211-202411

main81080-60310iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202211

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202211-202411

main81080-60320iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202211

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202211-202411

main81080-60310iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202211

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202211-202411

main81080-60320iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202211

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iFJA300,VJA300202107-202411

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-30170iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202411

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290×2iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202411

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-30170iFJA300,VJA300..GRS,VX,ZX; VJA300..AX202107-202411

8115REFLEX REFLECTOR

→ Go to FIG 81-15

81230LAMP ASSY, COURTESY

main81230-30200×4iVJA300..AX202107-202411

main81230-11030×4iFJA300,VJA300..GRS,VX,ZX202107-202411

main81230-WY040×4supersedes 81230-11030iFJA300,VJA300..GRS,VX,ZX202107-202411

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iVJA300..AX202107-202411

81240DLAMP ASSY, ROOM, NO.2

main81240-12100-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main81240-12100-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main81240-48030-C1iFJA300,VJA300..GRS,ZX; VJA300..VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main81240-48030-E0iFJA300,VJA300..VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

81240EBULB, ROOM LAMP, NO.2

main90981-14011iVJA300..AX,STD202107-202411

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iFJA300,VJA300..GRS,VX,ZX202107-202411

main81330-30100iVJA300..AX,STD202107-202411

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iVJA300..AX,STD202107-202411

81340LAMP ASSY, VANITY

main81340-30110×2iVJA300..AX,STD202107-202411

main81340-50260×2iFJA300,VJA300..GRS,VX,ZX202107-202411

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iVJA300..AX,STD202107-202411

81360TLAMP ASSY, SPOT

main81360-60140-C0iFJA300,VJA300..GRS,ZX; VJA300..VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main81360-60140-E0iFJA300,VJA300..VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

main81360-60150-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main81360-60150-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

81360UBULB, SPOT LAMP

main99132-12050×2iVJA300..AX,STD202107-202411

81380DLAMP ASSY, STEP

main81380-60140iFJA300,VJA300..ZX202107-202411

81380HLAMP ASSY, STEP

main81380-60150iFJA300,VJA300..ZX202107-202411

8202WIRING & CLAMP

→ Go to FIG 82-02

9016750063

main90167-50063
