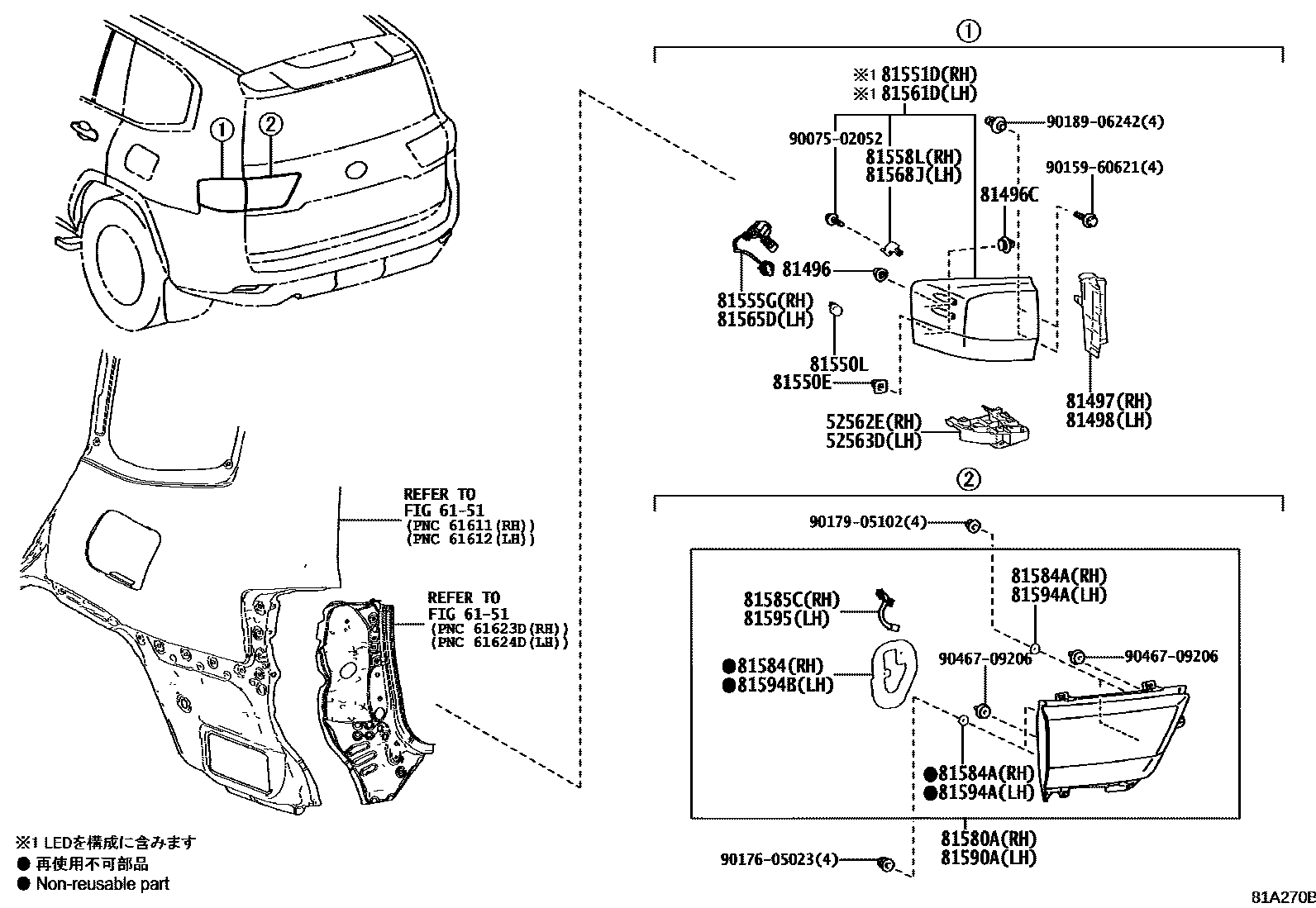

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60120iFJA300,VJA300202107-202411

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60120iFJA300,VJA300202107-202411

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iFJA300,VJA300202107-202411

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iFJA300,VJA300202107-202411

81497COVER, REAR COMBINATION LAMP, RH

main81497-60030iVJA300..AX,STD,VX202107-202411

main81497-60040iFJA300,VJA300..GRS,ZX202107-202411

81498COVER, REAR COMBINATION LAMP, LH

main81498-60030iVJA300..AX,STD,VX202107-202411

main81498-60040iFJA300,VJA300..GRS,ZX202107-202411

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iFJA300,VJA300202107-202411

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iVJA300..AX,STD202107-202411

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60D30iVJA300..VX202107-202411

main81551-60D40iFJA300,VJA300..GRS,ZX202107-202411

main81551-60D50iVJA300..AX,STD202107-202411

81555GCORD, REAR COMBINATION LAMP, RH

main81555-60D30iVJA300..VX202107-202411

main81555-60D40iFJA300,VJA300..GRS,ZX202107-202411

main81555-60D50iVJA300..AX,STD202107-202411

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-60D40iFJA300,VJA300202107-202411

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60D30iVJA300..VX202107-202411

main81561-60D40iFJA300,VJA300..GRS,ZX202107-202411

main81561-60D50iVJA300..AX,STD202107-202411

81565DCORD, REAR COMBINATION LAMP, LH

main81565-60D30iVJA300..VX202107-202411

main81565-60D40iFJA300,VJA300..GRS,ZX202107-202411

main81565-60D50iVJA300..AX,STD202107-202411

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-60D40iFJA300,VJA300202107-202411

81580ALAMP ASSY, REAR

main81580-60520iVJA300..AX,STD,VX202107-202411

main81580-60540iFJA300,VJA300..GRS,ZX202107-202411

81584PACKING, REAR LAMP RH

main81582-60530iFJA300,VJA300202107-202411

81584AGASKET, REAR LAMP RH

main81584-24050iFJA300,VJA300202107-202411

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-60510iVJA300..AX,STD,VX202107-202411

main81585-60530iFJA300,VJA300..GRS,ZX202107-202411

81590ALAMP ASSY, REAR, LH

main81590-60520iVJA300..AX,STD,VX202107-202411

main81590-60540iFJA300,VJA300..GRS,ZX202107-202411

81594AGASKET, REAR LAMP LH

main81584-24050iFJA300,VJA300202107-202411

81594BPACKING, REAR LAMP LH

main81592-60530iFJA300,VJA300202107-202411

81595SOCKET & WIRE, REAR LAMP, LH

main81595-60510iVJA300..AX,STD,VX202107-202411

main81595-60530iFJA300,VJA300..GRS,ZX202107-202411

9007502052

main90075-02052

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

29 parts on this diagram · 2 diagrams in section
