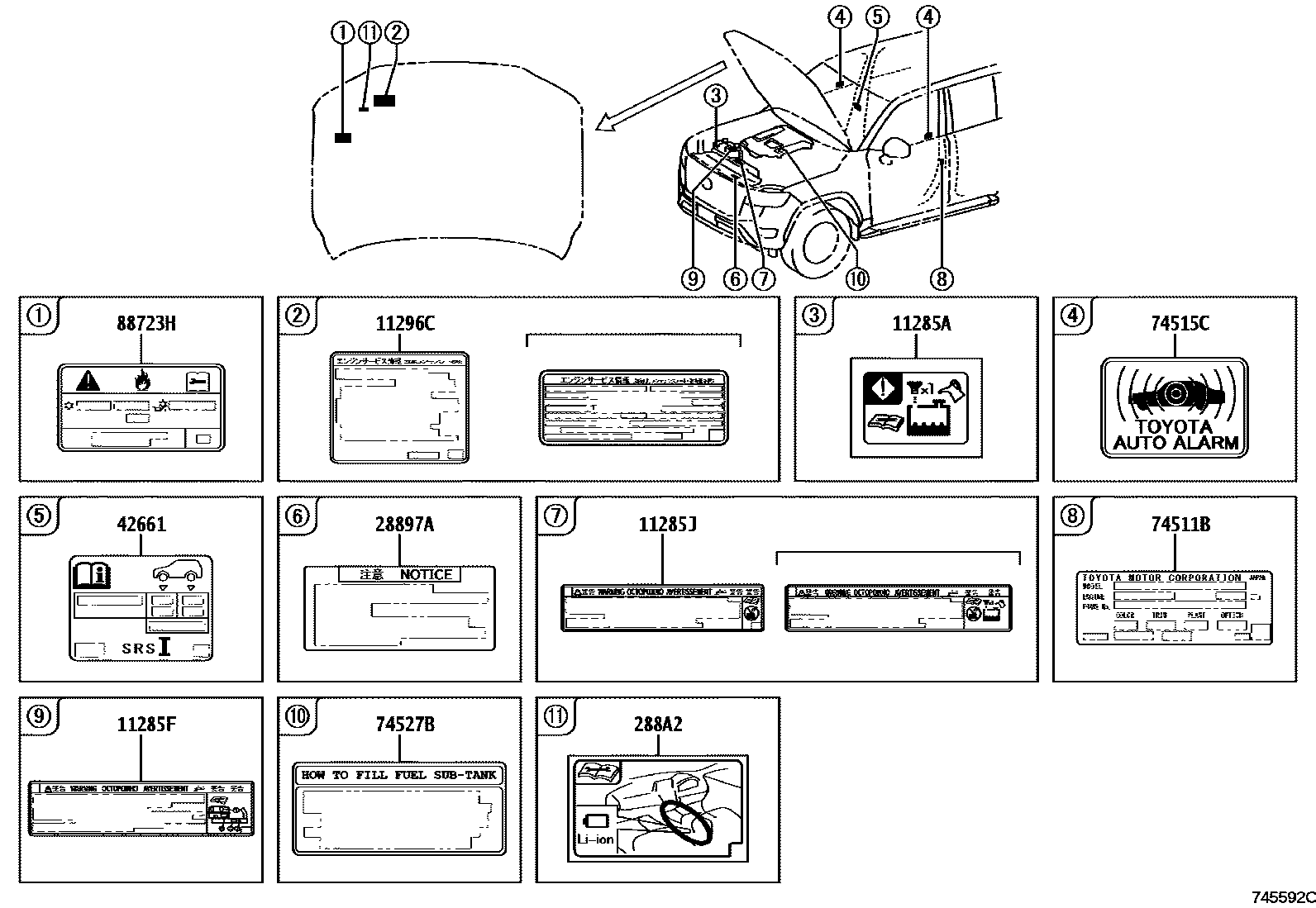

CAUTION PLATE

0001 1��������& ���������(1/2) 0002 1���������(2/2)&����(1/2) 0003 1����(2/2)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020iF33AFTV,V35AFTS..FJA300,VJA300202107-202411

11285FLABEL, COOLANT SYSTEM CAUTION

main11285-70101iF33AFTV,V35AFTS..FJA300,VJA300202107-202411

11285JLABEL, COOLANT SYSTEM CAUTION, NO.2

main11285-70110iV35AFTS..VJA300202107-202411

main11285-70120iF33AFTV..FJA300202107-202411

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-11430iF33AFTV..FJA300202107-202411

main11296-47080iV35AFTS..VJA300202107-202411

28897APLATE, BATTERY CAUTION

main28897-54030iF33AFTV..FJA300202107-202411

288A2LABEL, BATTERY LOCATION

main288A2-25010

42661LABEL, TIRE PRESSURE INFORMATION

main42661-60F80supersedes 42661-60F90iFJA300,VJA300..AX,GRS,STD,VX202107-202411

main42661-60F90iFJA300,VJA300..ZX; VJA300..VX202107-202411

74511BPLATE, NAME

main74511-2B300iFJA300,VJA300202107-202411

74515CLABEL, THEFT WARNING INFORMATION

main74515-33020×2iFJA300,VJA300202107-202411

74527BLABEL, ENGINE COVER CAUTION

main74527-60010iFJA300202107-202411

88723HLABEL, COOLER SERVICE CAUTION

main88723-60530supersedes 88723-60410iFJA300,VJA300..AX,GRS,VX,ZX; VJA300..STD202107-202411

11 parts on this diagram · 3 diagrams in section
