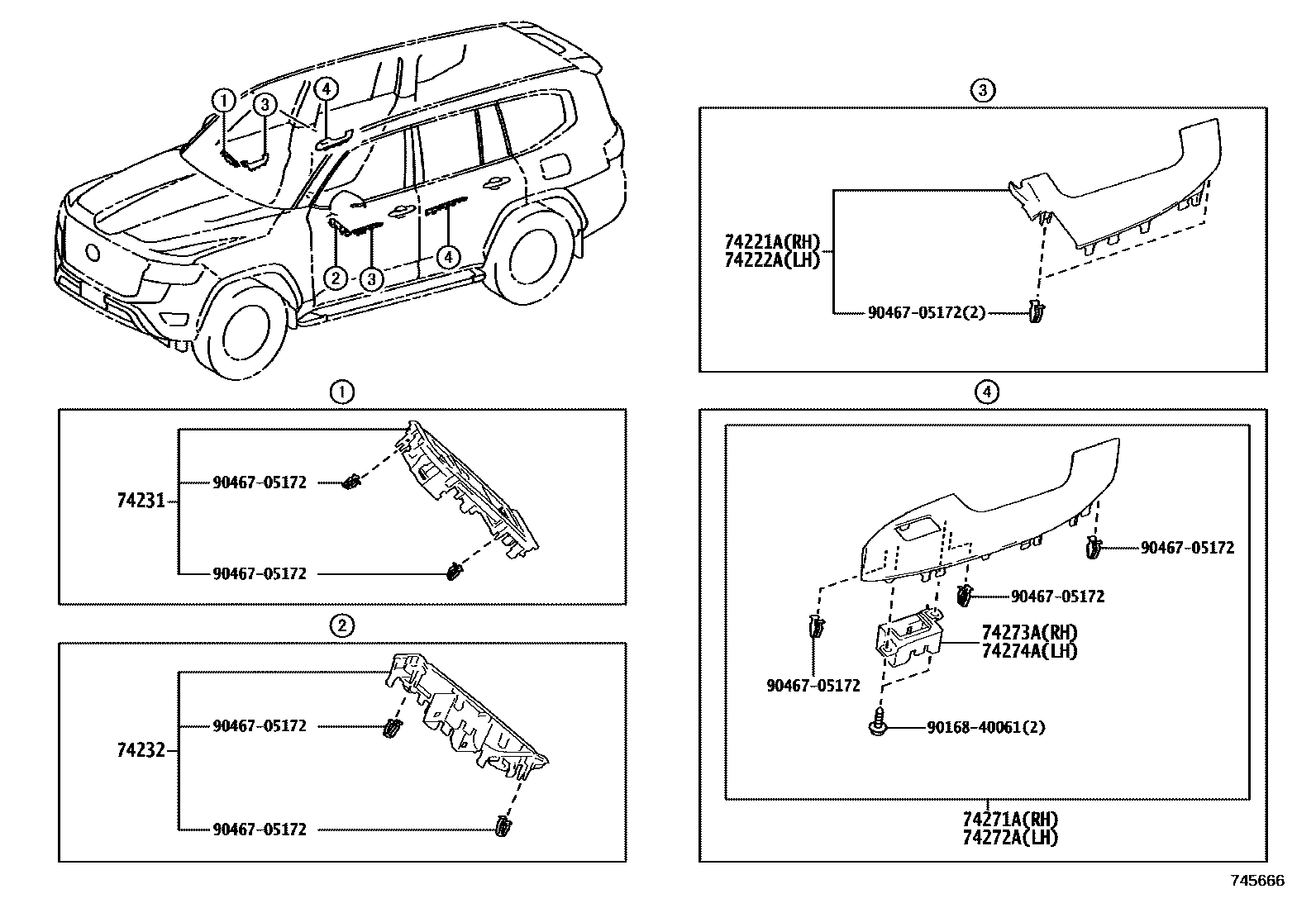

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74221ACOVER, FRONT DOOR ARMREST, RH

main67711-60440iVJA300..AX,STD202107-202411

main67711-60450iVJA300..VX202107-202411

main67711-60470iFJA300,VJA300..GRS,ZX202107-202411

main67711-60460iFJA300,VJA300..VX,ZX202107-202411

74222ACOVER, FRONT DOOR ARMREST, LH

main67712-60480iVJA300..AX,STD202107-202411

main67712-60490iVJA300..VX202107-202411

main67712-60510iFJA300,VJA300..GRS,ZX202107-202411

main67712-60500iFJA300,VJA300..VX,ZX202107-202411

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60A80iVJA300..AX,STD202107-202411

main74231-60A90iFJA300,VJA300..GRS,VX,ZX202107-202411

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60890iVJA300..AX,STD202107-202411

main74232-60A20iFJA300,VJA300..GRS,VX,ZX202107-202411

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60410iVJA300..AX,STD202107-202411

main74271-60440iVJA300..VX202107-202411

main74271-60460iFJA300,VJA300..GRS,ZX202107-202411

main74271-60450iFJA300,VJA300..VX,ZX202107-202411

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60410iVJA300..AX,STD202107-202411

main74272-60440iVJA300..VX202107-202411

main74272-60460iFJA300,VJA300..GRS,ZX202107-202411

main74272-60450iFJA300,VJA300..VX,ZX202107-202411

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-60050iFJA300,VJA300202107-202411

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-60050iFJA300,VJA300202107-202411

9016840061

main90168-40061

9046705172

main90467-05172

10 parts on this diagram · 2 diagrams in section
