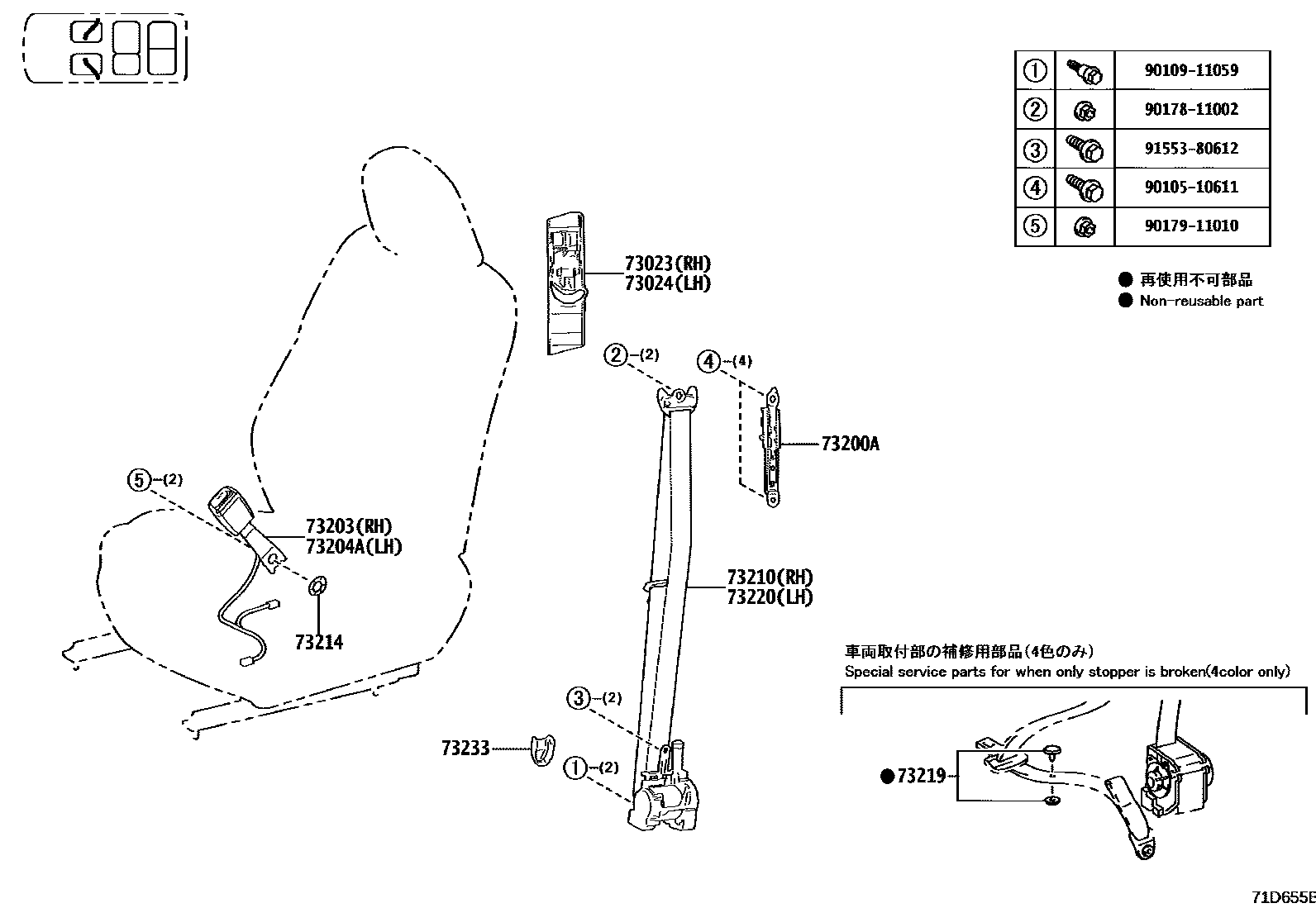

SEAT BELT

0001 1������� 0002 1��NO.1��� 0003 1��NO.2���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73023-12030-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73024-12020-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020×2iFJA300,VJA300202107-202411

73203BELT SET, FRONT SEAT, RH

main73204-60010-C0iVJA300..STD202107-202411

BLACK,TRIM2#

main73204-60010-E0iVJA300..STD202107-202411

NEUTRAL BEIGE,TRIM4#

main73204-60030-C0supersedes 73204-60020-C0iFJA300,VJA300..GRS,ZX; VJA300..AX; VJA300..VX202107-202411

main73204-60030-E0supersedes 73204-60020-E0iFJA300,VJA300..VX,ZX; VJA300..AX202107-202411

73204ABELT SET, FRONT SEAT, LH

main73203-60020-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#

main73203-60020-E0iVJA300..AX,STD202107-202411

NEUTRAL BEIGE,TRIM4#

main73203-60030-C0iFJA300,VJA300..GRS,ZX; VJA300..AX; VJA300..VX202107-202411

main73203-60030-E0iFJA300,VJA300..VX,ZX; VJA300..AX202107-202411

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76200-A0iFJA300,VJA300..AX,STD,VX,ZX202107-202207

IVORY/NEUTRAL BEIGE,TRIM4#

main73210-76200-C1iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202207

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73210-76201-A0iFJA300,VJA300..AX,STD,VX,ZX202208-202411

IVORY/NEUTRAL BEIGE,TRIM4#

main73210-76201-C1iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202208-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iFJA300,VJA300202107-202411

73219STOPPER, TONGUE PLATE

main73219-33010iFJA300,VJA300202107-202411

main73219-33020iFJA300,VJA300202107-202411

main73219-33030iFJA300,VJA300202107-202411

main73219-50010iFJA300,VJA300202107-202411

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76180-A0iFJA300,VJA300..AX,STD,VX,ZX202107-202207

IVORY/NEUTRAL BEIGE,TRIM4#

main73220-76180-C1iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202207

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73220-76181-A0iFJA300,VJA300..AX,STD,VX,ZX202208-202411

IVORY/NEUTRAL BEIGE,TRIM4#

main73220-76181-C1iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202208-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main73233-60020-E6×2iFJA300,VJA300..AX,STD,VX,ZX202107-202411

NEUTRAL BEIGE,TRIM4#

9010510611

main90105-10611

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 3 diagrams in section
