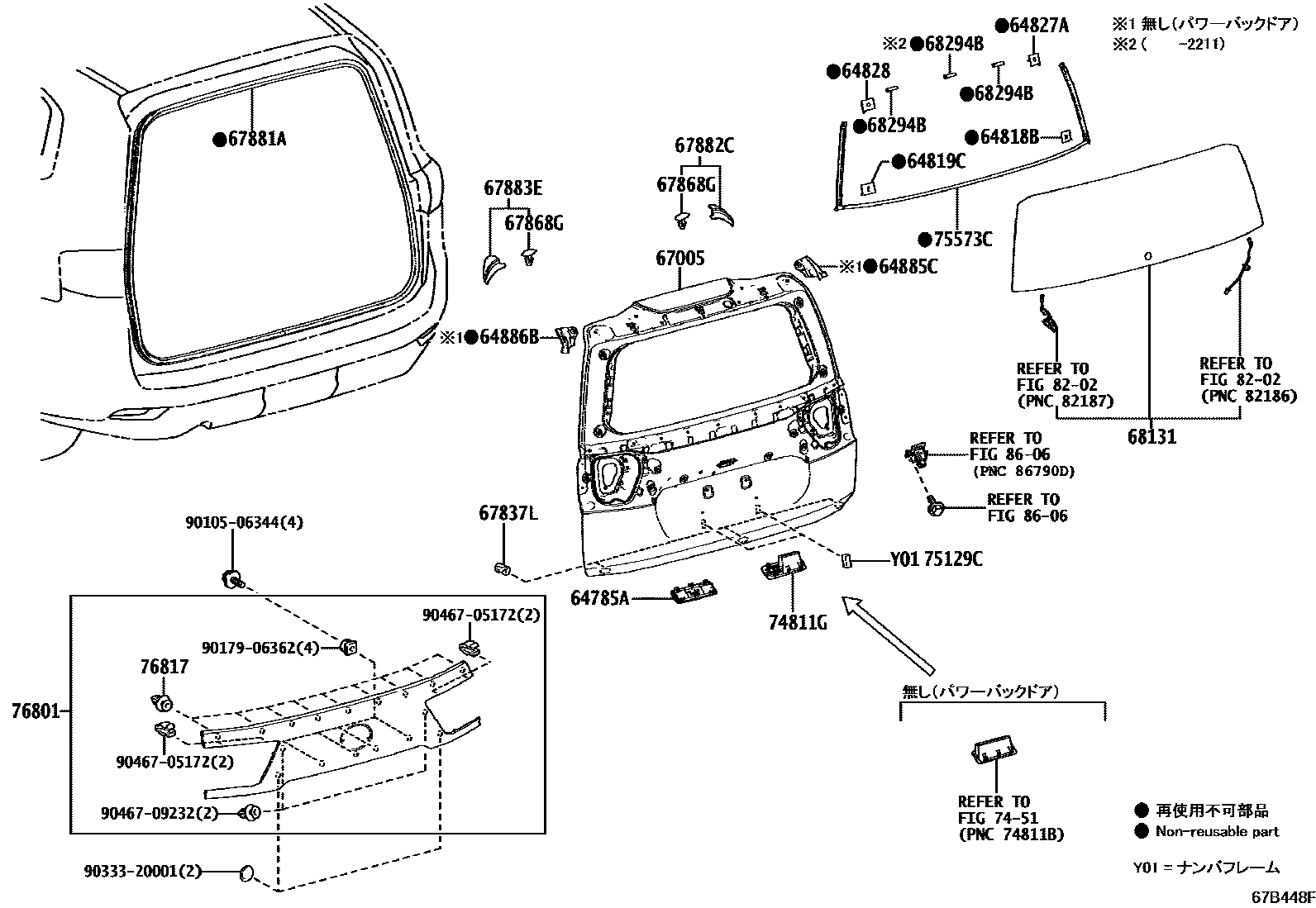

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

64785ABASE, BACK DOOR TRIM

main64785-60010-C0iFJA300,VJA300..GRS,ZX; VJA300..VX202107-202411

main64785-60010-E0iFJA300,VJA300..ZX; VJA300..VX202107-202411

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-60080iFJA300,VJA300202107-202411

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-60090iFJA300,VJA300202107-202411

64827ACLIP, BACK WINDOW GLASS, RH

main64827-60120iFJA300,VJA300202107-202411

64828CLIP, BACK WINDOW GLASS, LH

main64828-60120iFJA300,VJA300202107-202411

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-60070iVJA300..AX,STD,VX202107-202411

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-60070iVJA300..AX,STD,VX202107-202411

67005PANEL SUB-ASSY, BACK DOOR

main67005-60L50iVJA300..AX,STD,VX202107-202411

main67005-60L70iFJA300,VJA300..GRS,ZX; VJA300..VX202107-202411

67837LSEAL, DOOR DUST PROOF

main67837-42050×3iFJA300,VJA300202107-202110

main67837-60100×3iFJA300,VJA300202111-202411

67868GRETAINER, DOOR WEATHERSTRIP

main67867-12150×2iFJA300,VJA300202107-202411

67881AWEATHERSTRIP, BACK DOOR

main67881-60180iFJA300,VJA300202107-202309

main67881-60181iFJA300,VJA300202310-202411

67882CWEATHERSTRIP, BACK DOOR, NO.2

main63191-60020iFJA300,VJA300202107-202411

67883EWEATHERSTRIP, BACK DOOR, NO.3

main63192-60020iFJA300,VJA300202107-202411

68131GLASS, BACK DOOR

main68105-60900iFJA300,VJA300202107-202411

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030×3iFJA300,VJA300202107-202211

7451ARMREST & VISOR

→ Go to FIG 74-51

74811GHANDLE, DOOR PULL

main69291-60050-C0iFJA300,VJA300..GRS,ZX; VJA300..VX202107-202411

main69291-60050-E0iFJA300,VJA300..ZX; VJA300..VX202107-202411

75129CCUSHION, REAR LICENCE PLATE

main75129-13020×2iFJA300,VJA300202107-202411

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-60130iFJA300,VJA300202107-202411

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-60571-A0iFJA300,VJA300202107-202411

SUPER WHITE 2,040

main76801-60571-A1iFJA300,VJA300202107-202411

WHITE PEARL CS.,070

main76801-60571-A2iFJA300,VJA300..GRS,ZX202107-202411

PRECIOUS WHITE PEARL,090

main76801-60571-B0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

SILVER ME.,1F7

main76801-60571-B1iFJA300,VJA300202107-202411

GRAY ME.,1G3

main76801-60571-C0iFJA300,VJA300202107-202411

BLACK,202

main76801-60571-C1iFJA300,VJA300202107-202411

ATTITUDE BLACK MC.,218

main76801-60571-D0iFJA300,VJA300202107-202411

DK. RED M.M.,3Q3

main76801-60571-E0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

AVANT-GARDE BRONZE ME.,4V8

main76801-60571-J0iFJA300,VJA300..AX,STD,VX,ZX202107-202411

DK. BLUE MC.,8X8

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×9iFJA300,VJA300202107-202411

8202WIRING & CLAMP

→ Go to FIG 82-02

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010506344

main90105-06344

9017906362

main90179-06362

9033320001

main90333-20001

9046705172

main90467-05172

9046709232

main90467-09232

28 parts on this diagram · 2 diagrams in section
