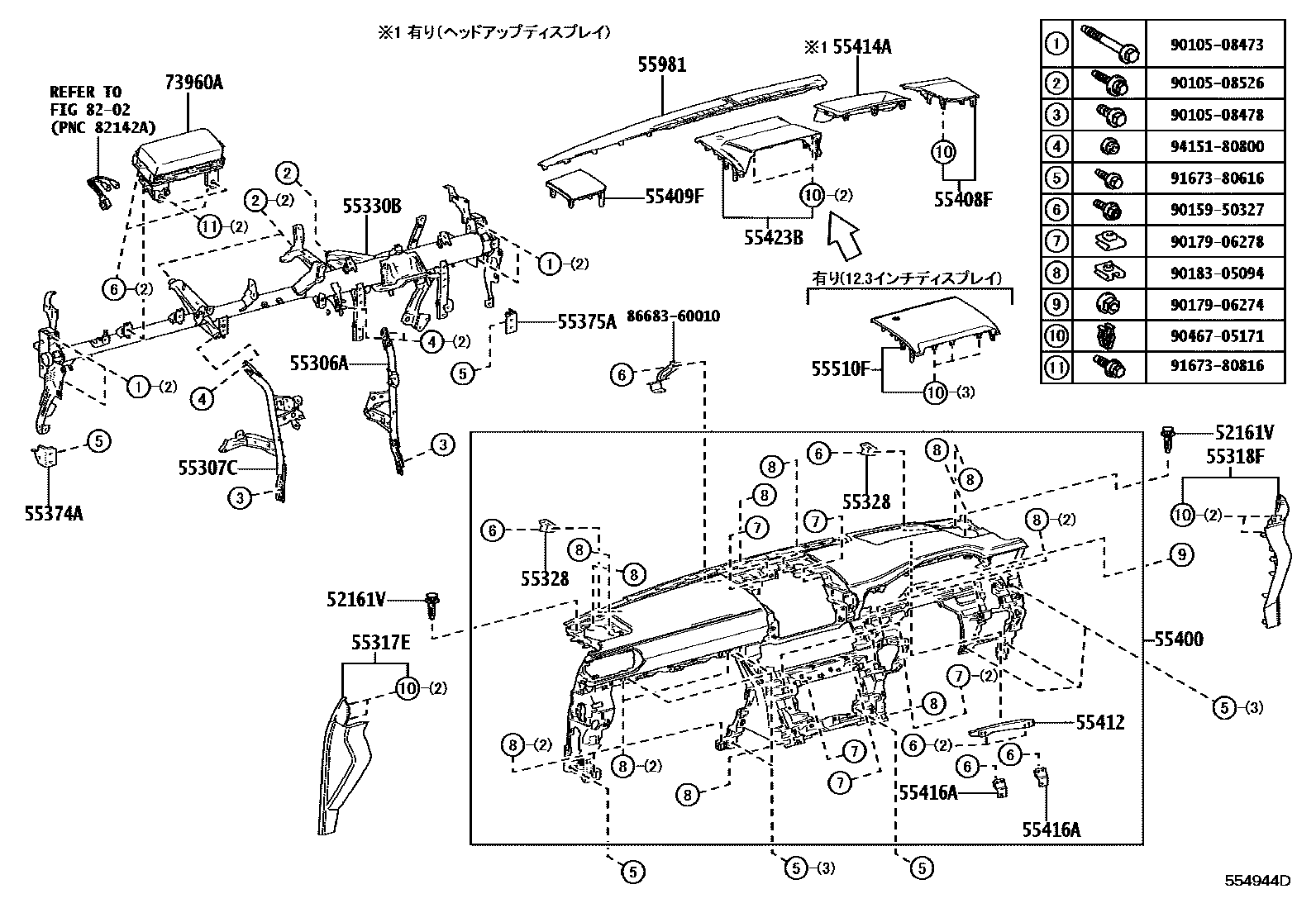

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iFJA300,VJA300202107-202411

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60220iFJA300,VJA300202107-202411

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-60160iFJA300,VJA300202107-202411

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-60110-C0iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main55317-60110-C1iFJA300,VJA300..AX,STD,VX,ZX202107-202411

BLACK,TRIM4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-60190-C0iFJA300,VJA300..GRS,ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main55318-60190-C1iFJA300,VJA300..AX,STD,VX,ZX202107-202411

BLACK,TRIM4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130×2iFJA300,VJA300202107-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60510iFJA300,VJA300202107-202411

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-60150iFJA300,VJA300202107-202411

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-60130iFJA300,VJA300202107-202411

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60110-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX; VJA300..VX202107-202411

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

main55400-60120-C0iVJA300..AX,STD202107-202411

BLACK,TRIM2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60290-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

main55408-60300-C0iVJA300..AX,VX; VJA300..GRS; VJA300..ZX202107-202411

main55408-60320-C0supersedes 55408-60290-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX202107-202411

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60160-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX; VJA300..AX,STD,VX202107-202411

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

main55409-60170-C0iVJA300..AX,VX; VJA300..GRS; VJA300..ZX202107-202411

main55409-60190-C0supersedes 55409-60160-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX202107-202411

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-60230iFJA300,VJA300..GRS,VX,ZX202107-202411

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-60210-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX; VJA300..VX202107-202411

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#

55416ARETAINER, METER HOOD, NO.1

main55416-60120×2iFJA300,VJA300202107-202411

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-60150-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX; VJA300..AX,STD,VX; VJA300..AX,VX; VJA300..GRS; VJA300..ZX202107-202411

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-60160-C0iVJA300..AX,VX; VJA300..GRS; VJA300..ZX202107-202411

main55510-60170-C0iFJA300,VJA300..GRS; FJA300,VJA300..ZX202107-202411

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-60080iFJA300,VJA300202107-202411

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60420iFJA300,VJA300202107-202411

8202WIRING & CLAMP

→ Go to FIG 82-02

8668360010RELAY, TELEVISION

main86683-60010

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9015950327

main90159-50327

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9415180800

main94151-80800

32 parts on this diagram · 4 diagrams in section
