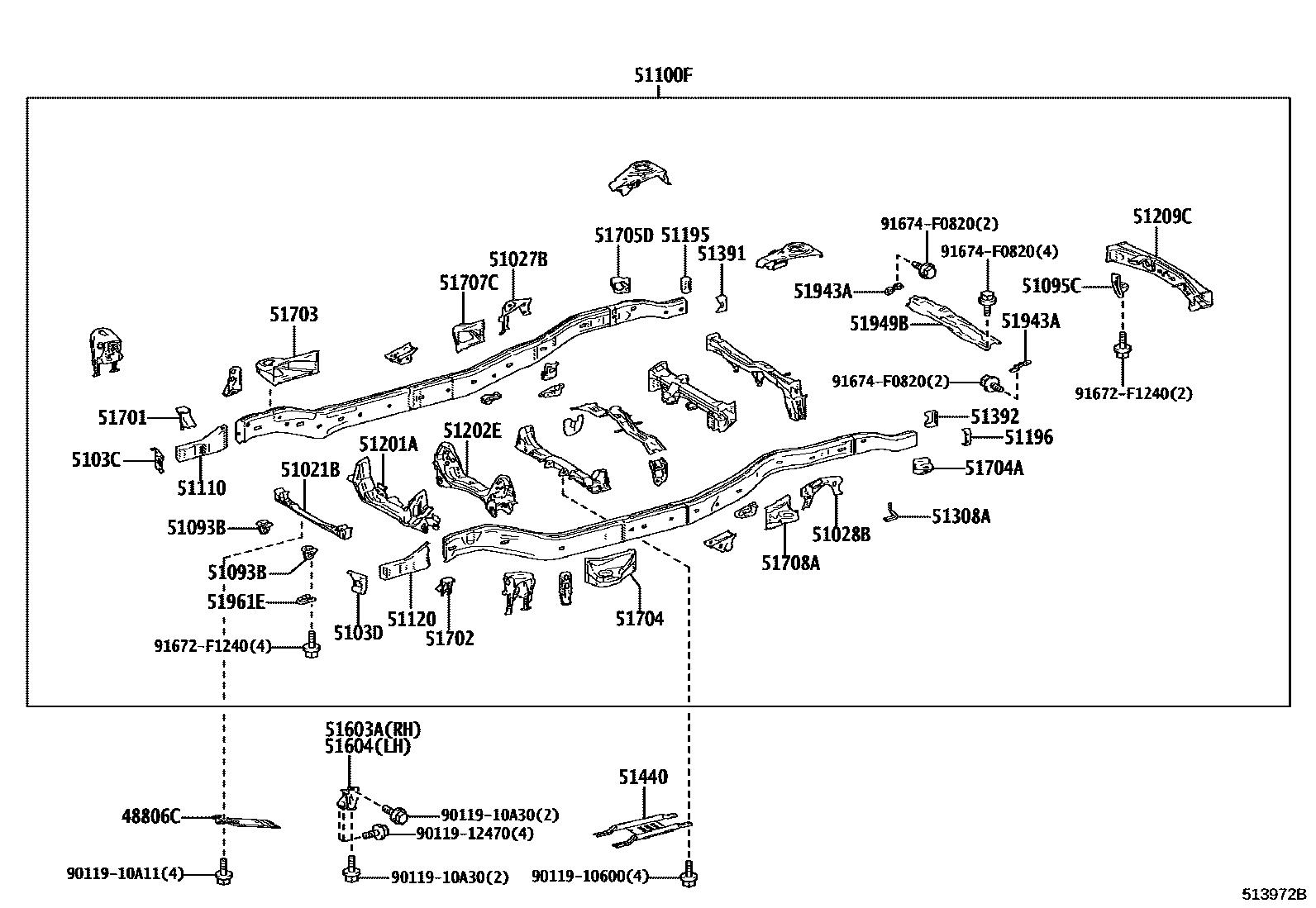

FRAME
48806CBRACE SUB-ASSY, FRONT STABILIZAR, CENTER
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51027BBRACKET SUB-ASSY, REAR SHOCK ABSORBER MOUNT, RH
51028BBRACKET SUB-ASSY, REAR SHOCK ABSORBER MOUNT, LH
5103CPLATE SUB-ASSY, SIDE RAIL EXTENSION, RH
5103DPLATE SUB-ASSY, SIDE RAIL EXTENSION, LH
51093BHOOK SUB-ASSY, TRANSPORT, FRONT
51095CHOOK SUB-ASSY, TRANSPORT, REAR
51100FFRAME SUB-ASSY
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51195PATCH, REAR FRAME RAIL, RH
51196PATCH, REAR FRAME RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51202ECROSSMEMBER SUB-ASSY, FRAME, NO.2
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51308ABRACKET SUB-ASSY, EXHAUST PIPE CLAMP
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51440PROTECTOR ASSY, OIL PAN
51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH
51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51705DBRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51943ABRACKET, SPARE WHEEL CARRIER
51949BCROSSMEMBER, SPARE WHEEL CARRIER
51961EHOOK, FRONT
9011910600
main90119-10600
9011910A11
main90119-10A11
9011910A30
main90119-10A30
9011912470
main90119-12470
91672F1240
main91672-F1240
91674F0820
main91674-F0820
39 parts on this diagram · 2 diagrams in section
