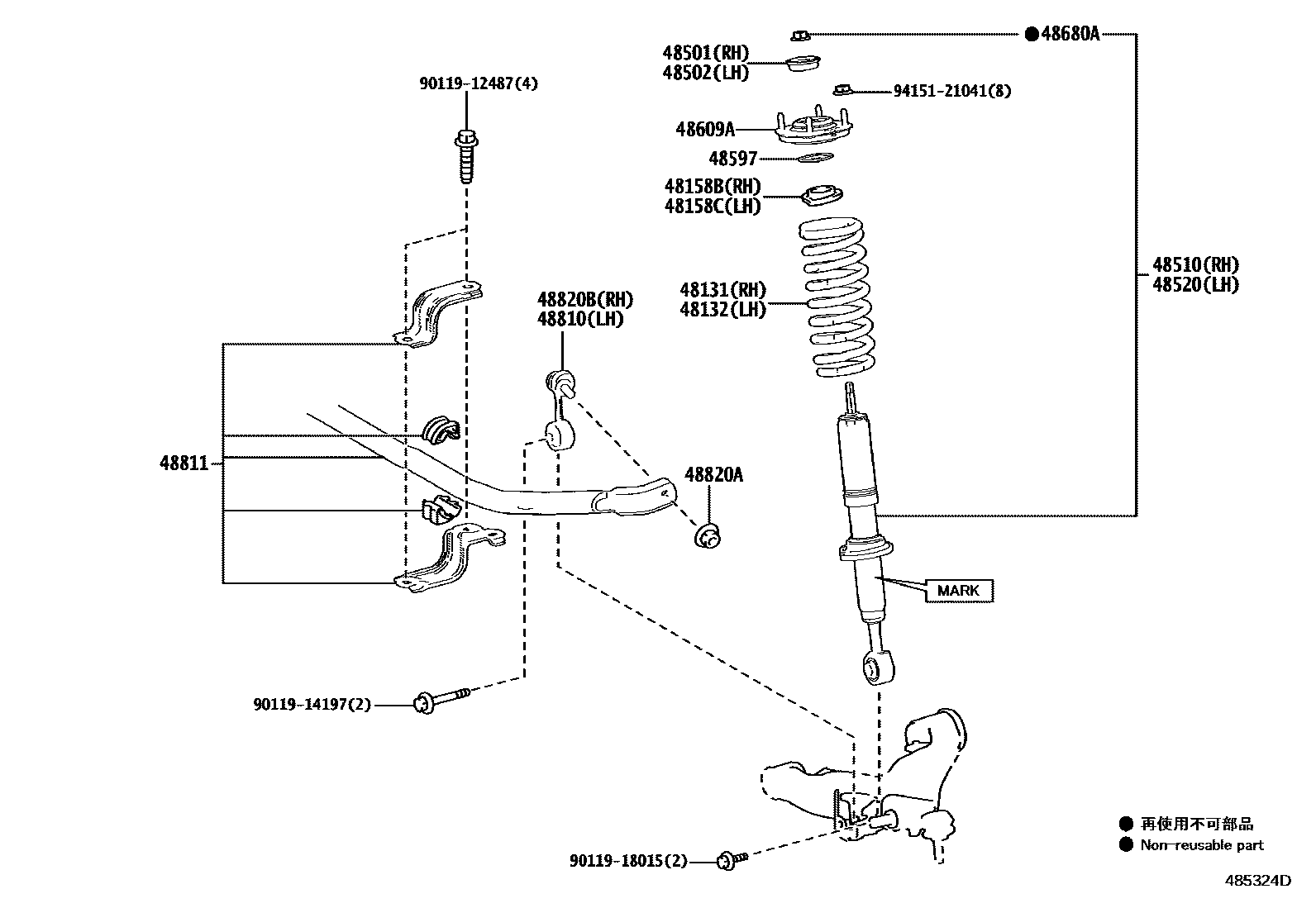

FRONT SPRING & SHOCK ABSORBER

0001 1��(AVS) 0002 1��(AVS) 0003 1��(AVS & E-KDSS) 0004 1��(AVS & E-KDSS) 0005 1��(AVS & E-KDSS)

48131SPRING, FRONT COIL, RH

main48131-60N90iVJA300..AX,STD,VX,ZX202107-202411

main48131-60Q90iFJA300..ZX202107-202207

main48131-60Q91iFJA300..ZX202208-202411

main48131-60R40iVJA300..GRS202107-202411

main48131-60S20iFJA300..GRS202107-202411

48132SPRING, FRONT COIL, LH

main48131-60N90iVJA300..AX,STD,VX,ZX202107-202411

main48131-60Q90iFJA300..ZX202107-202207

main48131-60Q91iFJA300..ZX202208-202411

main48131-60R40iVJA300..GRS202107-202411

main48131-60R50iFJA300..GRS202107-202411

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-60020iFJA300,VJA300202107-202411

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-60020iFJA300,VJA300202107-202411

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-60030iFJA300,VJA300202107-202411

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48501-60030iFJA300,VJA300202107-202411

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80B68iVJA300..AX,STD,VX202107-202207

main48510-80B69iVJA300..AX,STD,VX202208-202411

main48510-80B72iFJA300,VJA300..GRS,ZX202107-202411

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80B68iVJA300..AX,STD,VX202107-202207

main48510-80B69iVJA300..AX,STD,VX202208-202411

main48510-80B72iFJA300,VJA300..GRS,ZX202107-202411

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60150×2iFJA300,VJA300202107-202411

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-60110×2iFJA300,VJA300202107-202411

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01401×2iFJA300,VJA300202107-202411

48810LINK ASSY, FRONT STABILIZER, LH

main48820-60120iFJA300,VJA300..AX,STD,VX,ZX202107-202411

main48820-60130iFJA300,VJA300..GRS202107-202411

48811BAR, STABILIZER, FRONT

main48804-60170iFJA300,VJA300..GRS202107-202411

main48804-60180iFJA300,VJA300..AX,STD,VX,ZX202107-202411

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-16007×2iFJA300,VJA300..GRS202107-202411

main94151-21441×2iFJA300,VJA300..AX,STD,VX,ZX202107-202411

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60120iFJA300,VJA300..AX,STD,VX,ZX202107-202411

main48820-60130iFJA300,VJA300..GRS202107-202411

9011912487

main90119-12487

9011914197

main90119-14197

9011918015

main90119-18015

9415121041

main94151-21041

19 parts on this diagram · 5 diagrams in section
