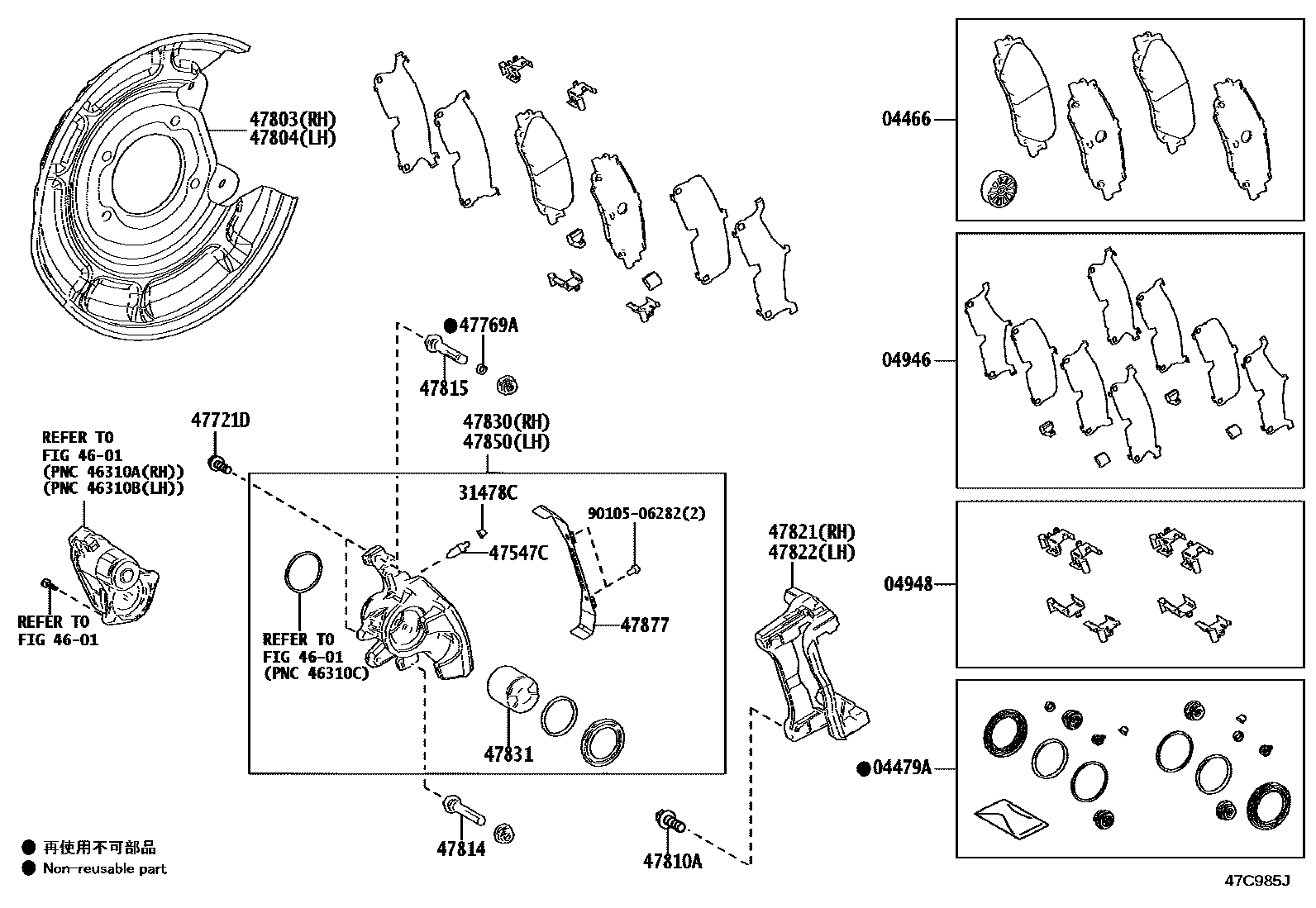

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60190i202107-202210

main04466-60191i202210-202411

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60280i202107-202411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60150i202107-202411

04948FITTING KIT, DISC BRAKE, REAR

main04948-60050i202107-202411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i202107-202411

4601PARKING BRAKE & CABLE

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010×2i202107-202411

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA606×4i202107-202411

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0E070×2i202107-202411

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-60010i202107-202108

main47803-60011i202108-202208

main47803-60012i202209-202411

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-60010i202107-202108

main47804-60011i202108-202208

main47804-60012i202209-202411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14169×4i202107-202411

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-60130×2i202107-202411

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-60130×2i202107-202411

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-60130i202107-202411

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-60120i202107-202411

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-60130i202107-202411

47831PISTON, REAR DISC BRAKE

main47831-60130×2i202107-202411

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-60120i202107-202411

47877PROTECTOR, REAR DISC BRAKE DUST BOOT

main47877-60130×2i202107-202411

9010506282

21 parts on this diagram · 1 diagram in section
