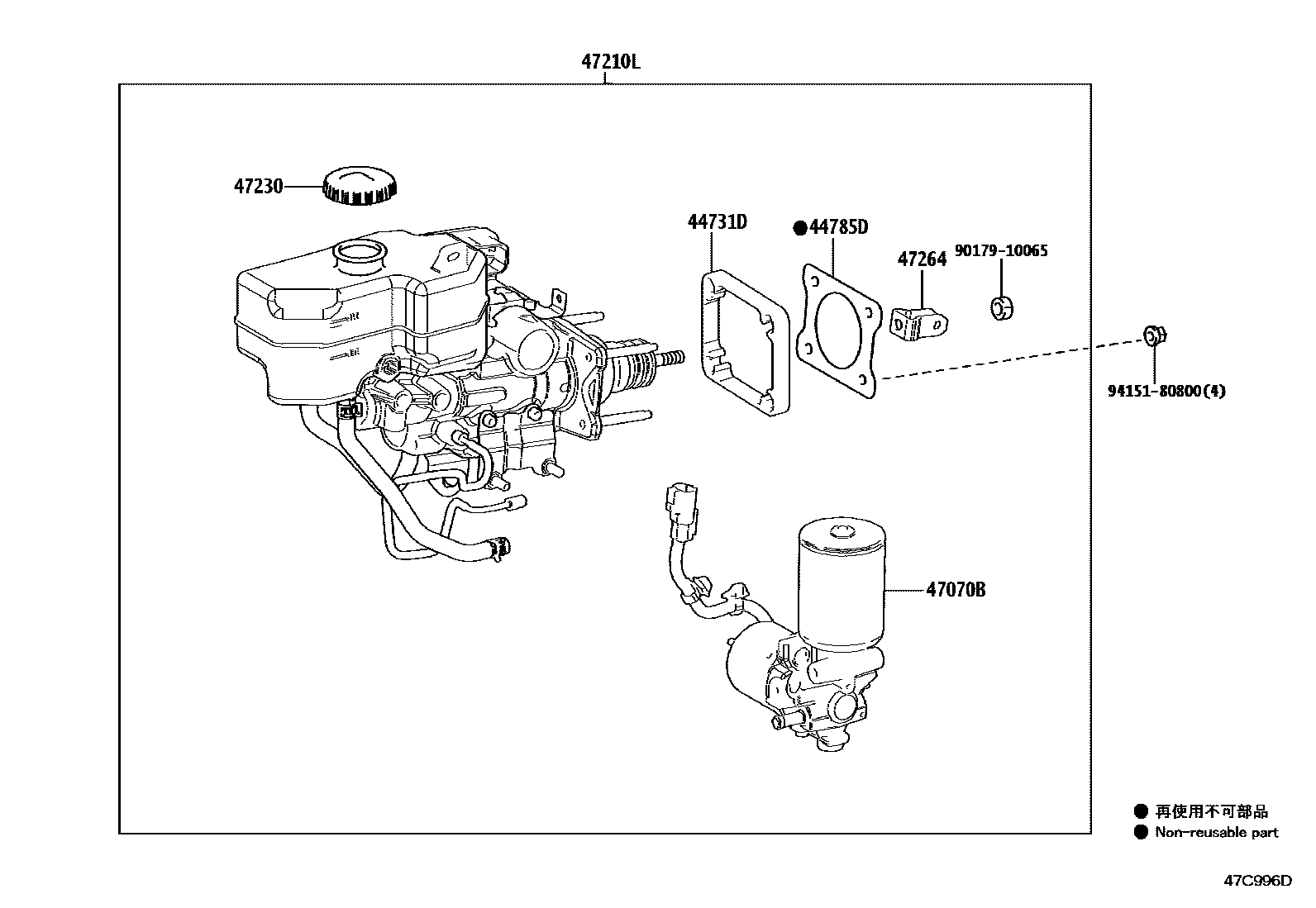

BRAKE MASTER CYLINDER

44731DBRACKET, BRAKE BOOSTER

main44731-60030iFJA300,VJA300202107-202411

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iFJA300,VJA300202107-202411

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100iFJA300,VJA300202107-202411

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60A40iFJA300,VJA300202107-202411

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iFJA300,VJA300202107-202411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020iFJA300,VJA300202107-202411

9017910065

main90179-10065

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
