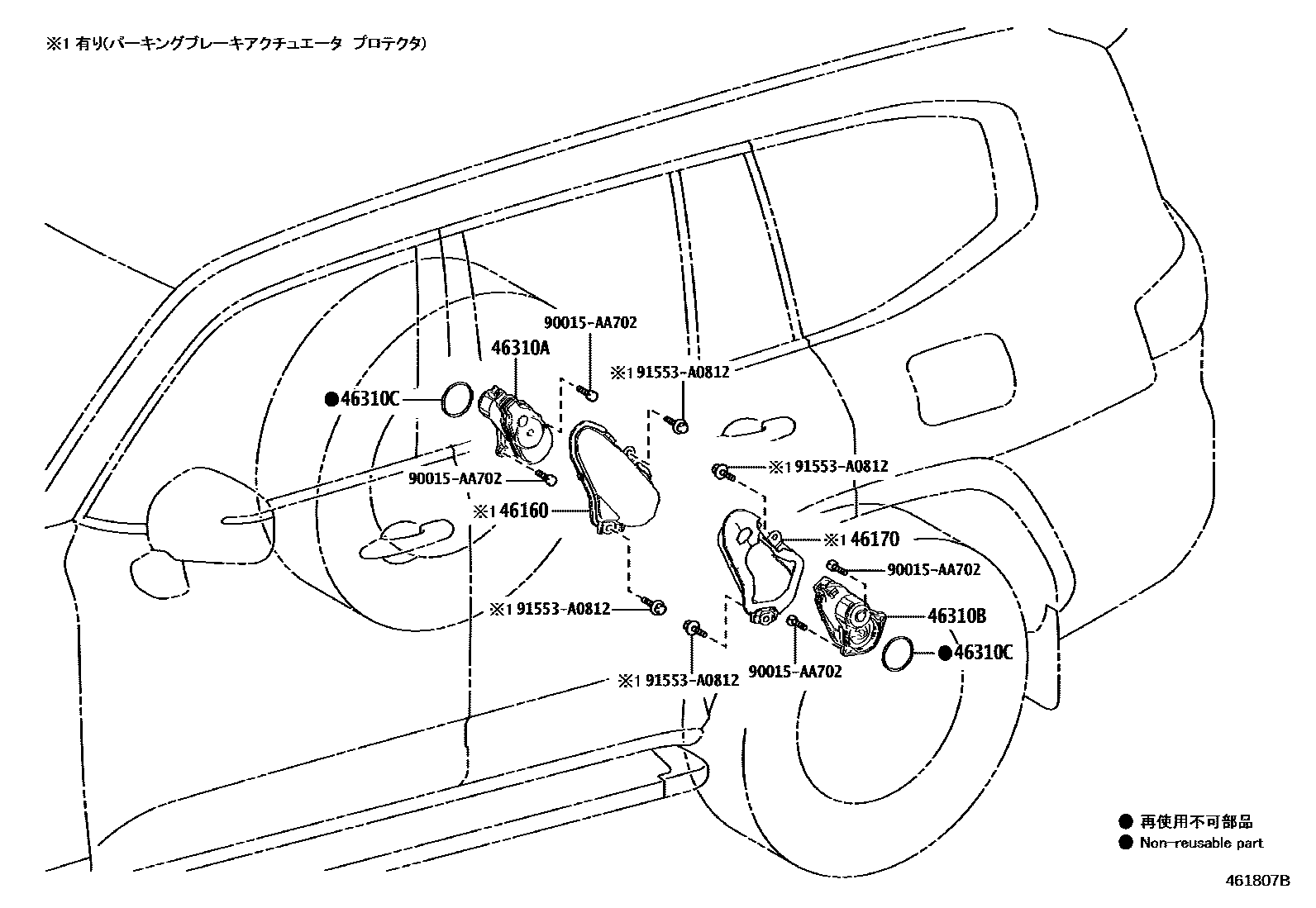

PARKING BRAKE & CABLE

46160PROTECTOR ASSY, PARKING BRAKE ACTUATOR, RH

main46160-60010iFJA300,VJA300..GRS,STD,ZX202107-202411

46170PROTECTOR ASSY, PARKING BRAKE ACTUATOR, LH

main46170-60010iFJA300,VJA300..GRS,STD,ZX202107-202411

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-60050iFJA300,VJA300202107-202411

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-60050iFJA300,VJA300202107-202411

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iFJA300,VJA300202107-202411

90015AA702

main90015-AA702

91553A0812

main91553-A0812

7 parts on this diagram · 1 diagram in section
