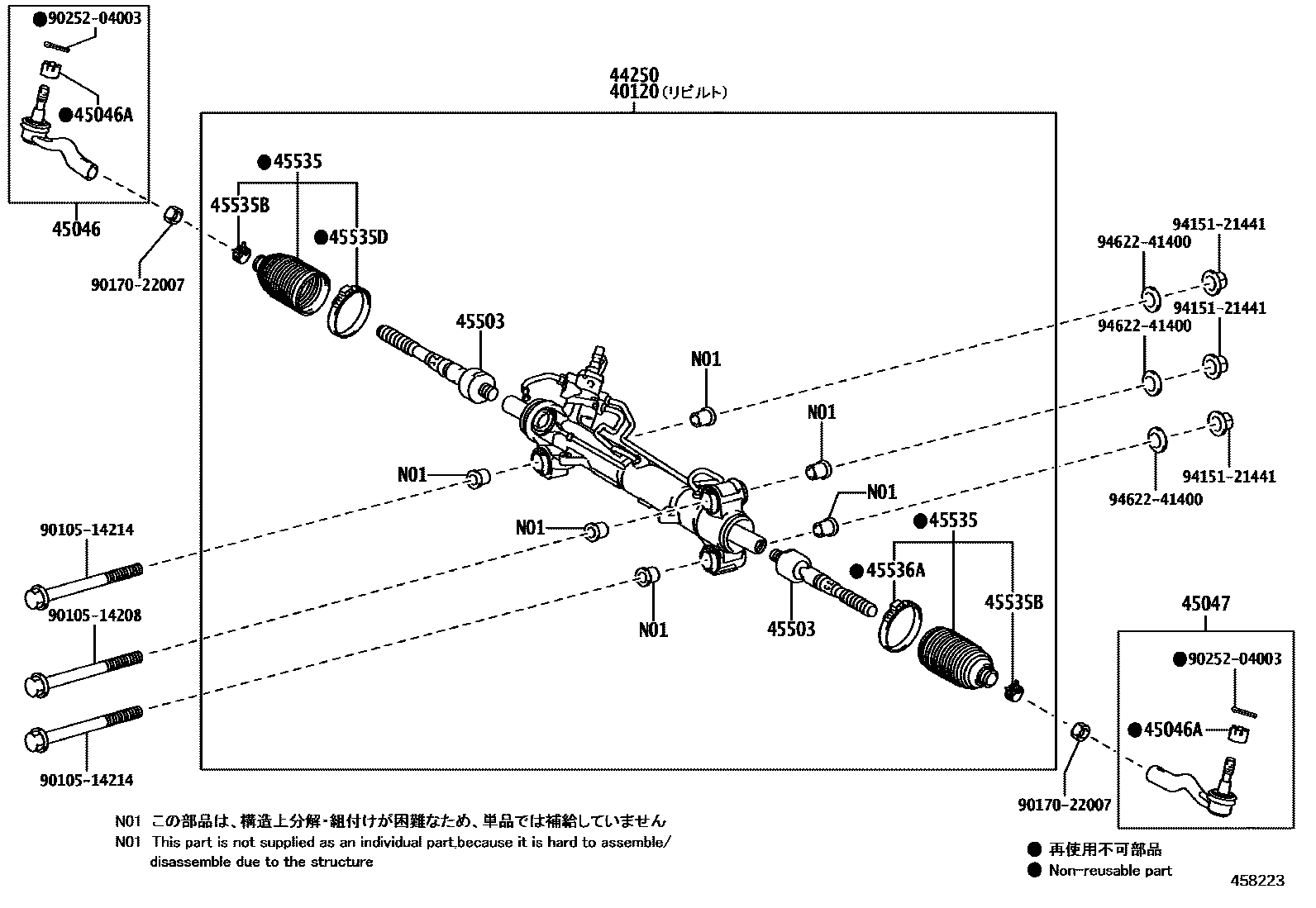

FRONT STEERING GEAR & LINK

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-60280iVJA300..AX,STD202107-202411

main40120-60300iFJA300,VJA300..GRS,VX,ZX202107-202411

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60280iVJA300..AX,STD202107-202411

main44250-60300iFJA300,VJA300..GRS,VX,ZX202107-202411

45046END SUB-ASSY, TIE ROD, RH

main45046-69255iFJA300,VJA300202107-202409

main45046-69256iFJA300,VJA300202410-202411

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16011×2iFJA300,VJA300202107-202411

45047END SUB-ASSY, TIE ROD, LH

main45046-69255iFJA300,VJA300202107-202409

main45046-69256iFJA300,VJA300202410-202411

45503END SUB-ASSY, STEERING RACK

main45503-60050×2iFJA300,VJA300202107-202411

45535BOOT, STEERING RACK, NO.1

main45535-69035×2iFJA300,VJA300202107-202411

45535BCLIP(FOR STEERING RACK BOOT)

main96133-42600×2iFJA300,VJA300202107-202411

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-81008iFJA300,VJA300202107-202411

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-81008iFJA300,VJA300202107-202411

9010514208

main90105-14208

9010514214

main90105-14214

9017022007

main90170-22007

9025204003

main90252-04003

9415121441

main94151-21441

9462241400

main94622-41400

16 parts on this diagram · 1 diagram in section
