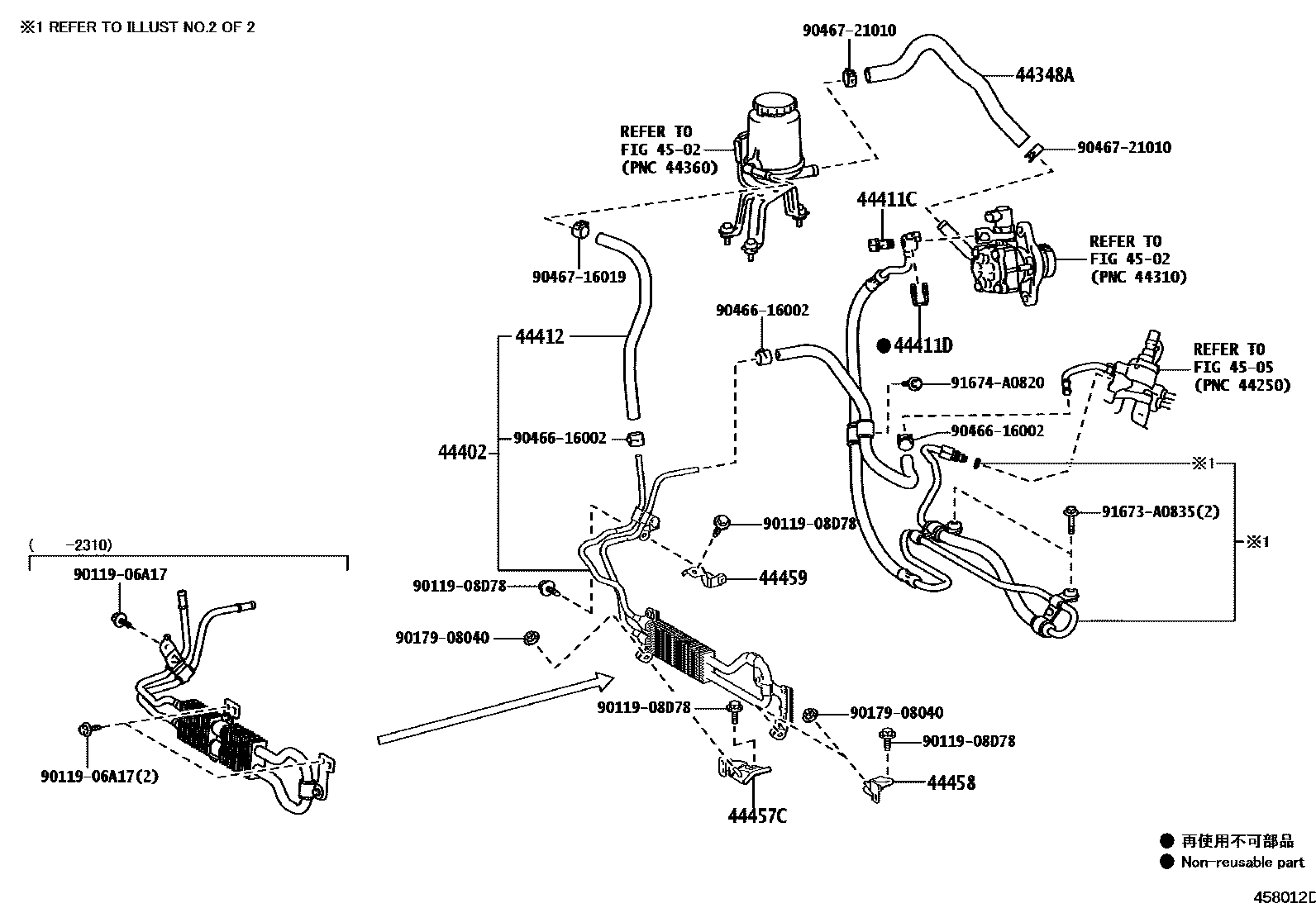

POWER STEERING TUBE

0001 1 0002 1 0003 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60500iFJA300202107-202411

main44348-60510iVJA300202107-202411

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-60060iFJA300202107-202310

main44402-60070iVJA300202107-202310

main44402-60120iFJA300202310-202411

main44402-60130iVJA300202310-202411

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iFJA300,VJA300202107-202411

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iFJA300,VJA300202107-202411

44412HOSE, RETURN

main44412-60490iFJA300202107-202411

main44412-60500iVJA300202107-202411

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44458-60050iFJA300,VJA300202310-202411

44458BRACKET, TUBE SUPPORT, NO.2

main44458-60040iFJA300,VJA300202310-202411

44459BRACKET, TUBE SUPPORT, NO.3

main44459-60040iFJA300202310-202411

main44459-60050iVJA300202310-202411

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906A17

main90119-06A17

9011908D78

main90119-08D78

9017908040

main90179-08040

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91673A0835

main91673-A0835

91674A0820

main91674-A0820

18 parts on this diagram · 3 diagrams in section
