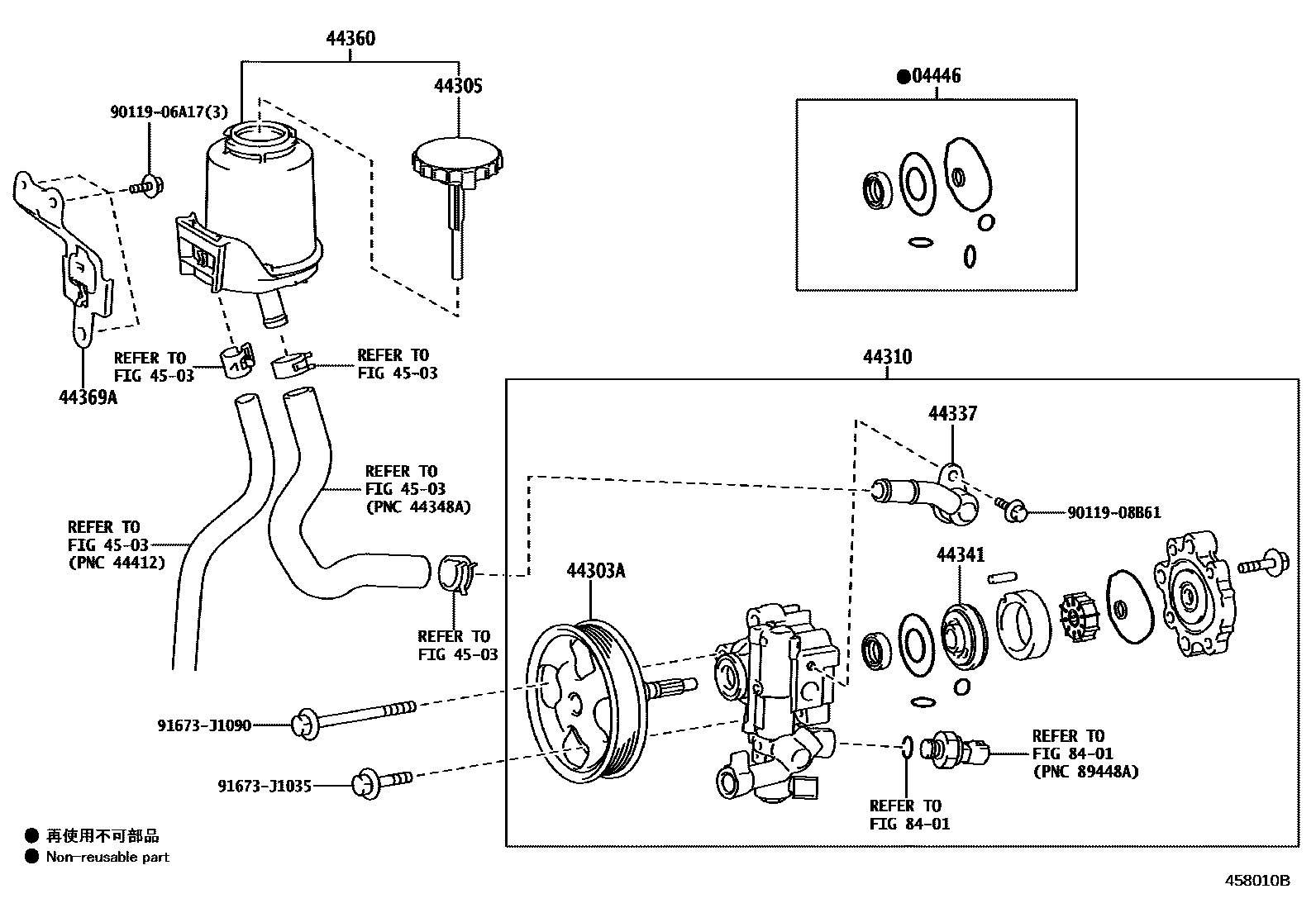

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-60130iFJA300202107-202411

main04446-60330iVJA300202107-202411

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60040iVJA300202107-202411

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37031iFJA300,VJA300202107-202411

44310PUMP ASSY, VANE

main44310-60690iFJA300202107-202411

main44310-60710iVJA300202107-202411

44337UNION, POWER STEERING SUCTION PORT

main44337-60280iFJA300202107-202411

main44337-60290iVJA300202107-202411

44341PLATE, VANE PUMP SIDE, FRONT

main44341-60040iFJA300,VJA300202107-202411

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60350iFJA300202107-202411

main44360-60360iVJA300202107-202411

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-60050iVJA300202107-202411

4503POWER STEERING TUBE

→ Go to FIG 45-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A17

main90119-06A17

9011908B61

main90119-08B61

91673J1035

main91673-J1035

91673J1090

main91673-J1090

14 parts on this diagram · 2 diagrams in section
