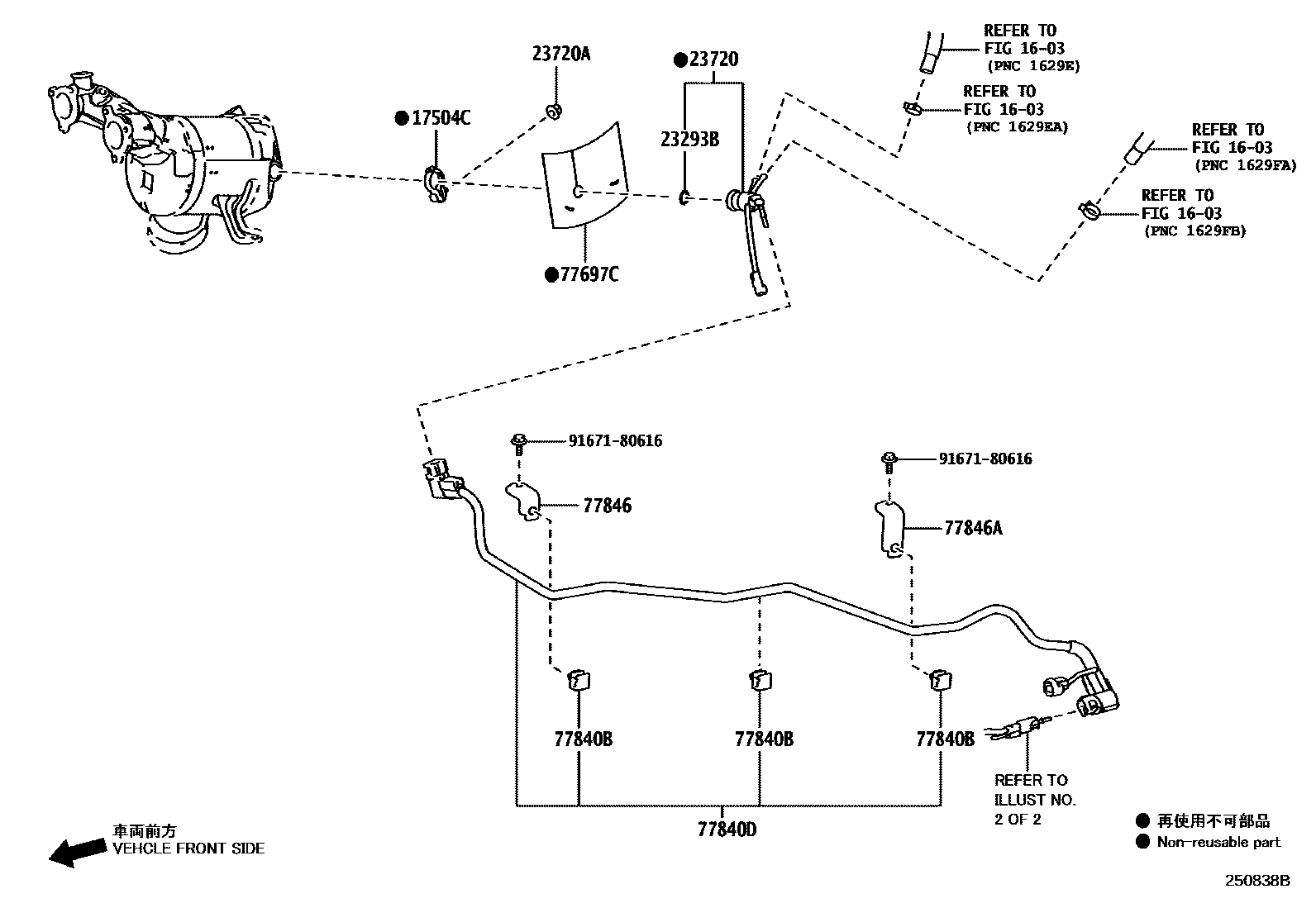

UREA TANK & TUBE

0001 1���������� 0002 1������

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17504CCLAMP(FOR UREA INJECTOR)

main17504-52030iF33AFTV..FJA300202107-202411

23293BGASKET, UREA INJECTOR

main23253-52010iF33AFTV..FJA300202107-202411

23720INJECTOR ASSY, UREA

main23720-52010iF33AFTV..FJA300202107-202411

23720ANUT, FLANGE(FOR UREA INJECTOR)

main94151-80600iF33AFTV..FJA300202107-202411

77697CINSULATOR

main17160-52010iFJA300202107-202411

77840BCLAMP, UREA TUBE, NO.1

main77289-26040×3iFJA300202107-202411

77840DTUBE ASSY, UREA W/HEATER, NO.2

main77840-60050iFJA300202107-202411

77846BRACKET, UREA TUBE, NO.1

main77846-60010iFJA300202107-202411

77846ABRACKET, UREA TUBE, NO.2

main77846-60020iFJA300202107-202411

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
